E-SERIES
(May, 2004)
34
STATEMENTSOFCONFORMITY
CUT LINE
SECTION BB
CUT LINE
CUT LINE
SECTION CC
SECTION DD
CUT LINE
CUT LINE
SECTION AA
B
A
FRONT OF
VEHICLE
NOTE: SHADEDAREAREPRESENTSMAXIMUMOPENING INBODYPANELS.
THESECTIONSSHOWNAREALARGERSCALE THAN THESIDEVIEW
FOR THEPURPOSEOFCLARITY.
THESPOTWELDS (X) IN THIS
AREAMUSTREMAIN INTACT.
711.2
[ 28.00 ]
MAXIMUM
D
[ ] DIMENSIONSARE INCHES
711.2
[ 28.00 ]
MAXIMUM
D
C
C
A
B

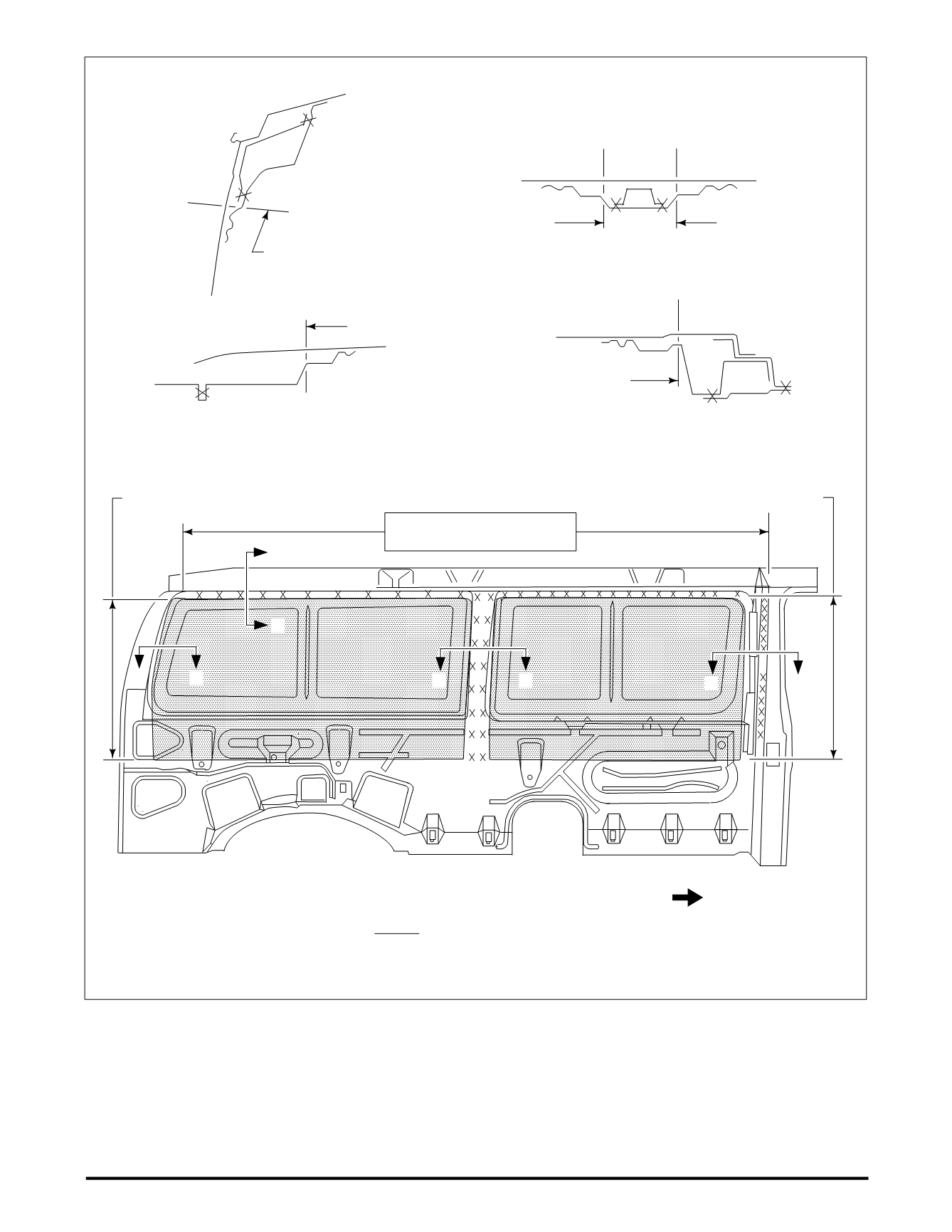

FIGUREG1 –BODYPANELWINDOWREMOVALAREA–E-SERIES (DRIVERSIDE –L.H.)
