STATEMENTSOFCONFORMITY
• Thebody installedbyasubsequentstagemanufacturer
and the Ford installed fuel system components are
locatedandmountedas follows:
– The body ismounted securely and is so designed
that when the completed vehicle is tested in any
manner specified by applicable provisions of
Standard 301,
(a) body components do not contact any fuel
system component at any time (other than at
thepointswhere the fuel system ispermanently
attached to the body), and,
(b) body deformation or movement relative to
the frame does not cause any fuel system
component to be penetrated, disconnected, or
otherwise damaged.
• The rear endof thebody (excluding the rear bumper)
installed by a subsequent stagemanufacturer does
not extend beyond (overhang) the rear edge of the
vehicle frameor frameextension.Anyextensionof the
vehicle frame must be constructed and attached so
as to perform as a continuation of the vehicle frame
when the completed vehicle is tested in anymanner
specifiedby applicable provisions of Standard 301.
• TheE-SeriesBasic (Stripped)Chassisaft-of-axle fuel
filler cap, pipe, hose(s), and attaching hardware are
installedas shown inFigure I, below.All components
must be securely retained to remain intact when the
completed vehicle is tested in any manner specified
by applicableprovisions of Standard 301.
The Basic (Stripped) Chassis is equipped with a Fuel
Shutoff Switch. The switch is located on the column
support structure forE-Seriesandmustnotbe relocated,
altered, ormodified inanyway.
301
(ContinuedonPage45)

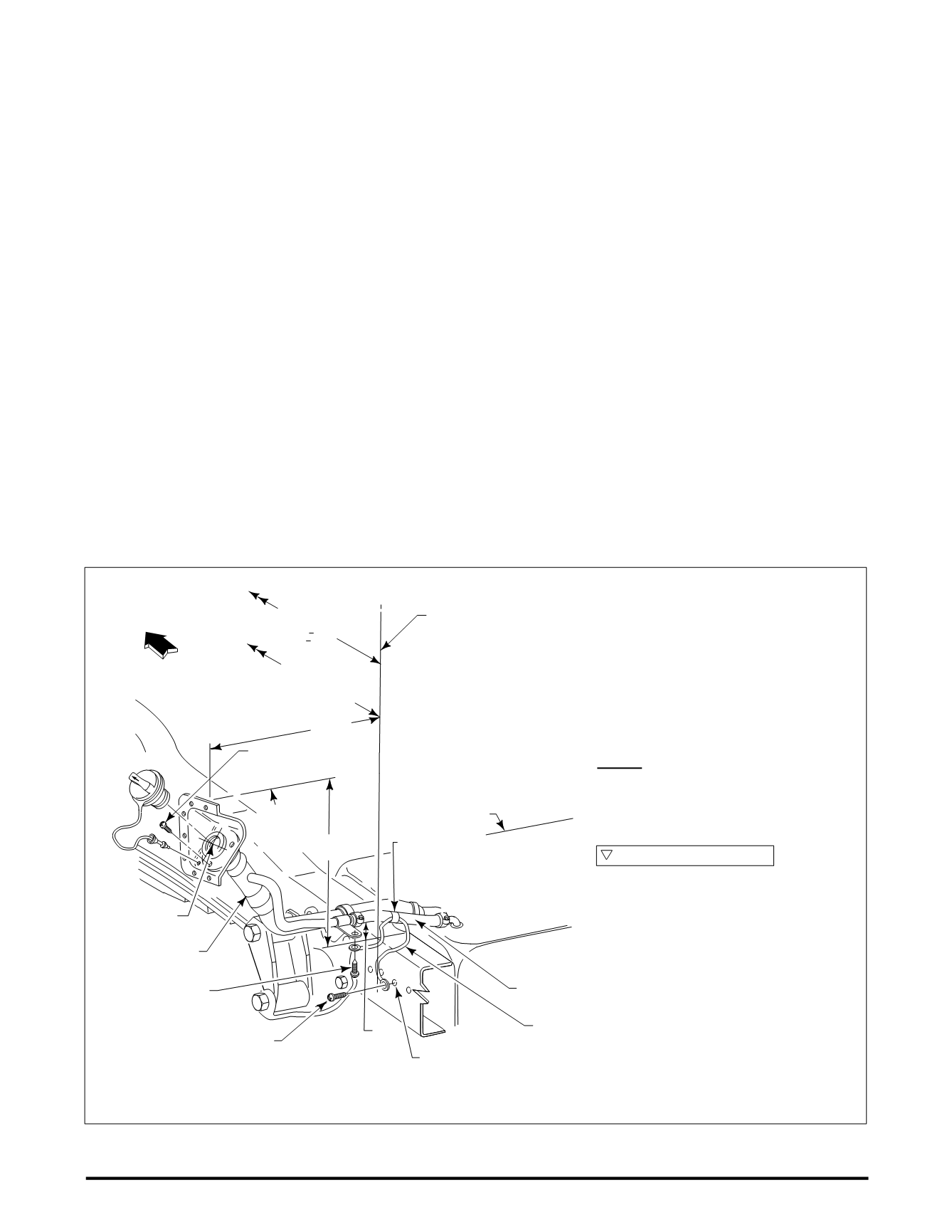

FIGURE I – E-SERIESCUTAWAYANDBASIC (STRIPPED) CHASSISFUELFILLERPIPE INSTALLATION
TO BACK OF
CUTAWAY CAB
OUTBOARD SURFACE
OF FRAME RAIL
FRONT OF
VEHICLE
E-SERIES E-350/450 CUTAWAY AND BASIC (STRIPPED)
CHASSIS AFT-OF-AXLE FUEL FILLER SYSTEM
C
OF FILLER NECK
CL
TO L OF REAR
AXLE FOR
STRIPPED CHASSIS
ALL W.B.
601.4 12.7
[23.7 0.5]
+ +
FUEL TANK
319.0
*
[12.56]
TOP OF
FILLER
PIPE
SUPPORT
40.2
[1.583]
ROUTE FILL AND VENT
HOSE SO NO LOW
SPOTS OCCUR
FUEL TANK
F
ILL PIPE
EXISTING 9.7 DIA. HOLES
(USED FOR EXHAUST
ON R.H. SIDE)
N611645-S36
M10 SELF-TAPPING SCREW
(ATTACH TO SOUND
METAL ON FRAME)
N611131-S36
M4 SELF-TAPPING
SCREW
SECURE WITH TIE
STRAPS AS REQUIRED
TO VENT HOSE
9A099
GROUND STRAP
FUEL TANK
SCREW 3 REQíD.
TORQUE TO 2.1- 2.9 Nm
18 - 26 IN.-LB.
2641.6 [104.0] [+0.00-2.00] [138wb]
3149.6 [124.0] [+0.00-2.00] [158wb]
3606.8 [142.0] [+0.00-2.00] [178wb]
733.4
[28.875]
(MAX.)
CRITICAL CONTROL ITEM
NOTES:
TORQUE ALL WORM GEAR DRIVEN
HOSE CLAMPS TO 2.9 - 4.3 NM
25 - 38 IN.-LB.
[ ] DIMENSIONS ARE INCHES
* FILLER HEIGHT FOR SCHOOL BUS
FUEL SYSTEM 416.0 [16.38].
CALIFORNIA
POINT Z
