TroubleShooting:
Problem: Doorwill not stayclosed, or jumpsbackwhen attempting to close it.
This occurswhen
something is keeping the rotary latches from engaging, and theyare not allowed to close. Thismaybe
causedby:
1. The striker pinor bolt needingadjustment.
2. The rotary latch itself being gummedupand needing cleaning (cleanmechanism and lubricate).
The rotary latchmayneed replacing if cleaningand lubricationdoes not free it up.
3. The rodattaching thepaddle latch to the rotary latch is too tight (adjust turnbuckle accordingly)
Replacement Parts
(SeeFig 7)
11630
Bolt Striker
12170
WeatherstripBulbseal
14211
Cylinder LockCH5011/2DBL
14310
LatchRotaryDoubleArmed (Left)
14311
LatchRotaryDoubleArmed (Right)
14313
LatchHandlePaddleExit/EntrySS 2DBL-SS (CH501)
14322
HandlePaddleSS 1/2DBLExterior Only (CH501)
14732
Gasket Latch for 2DBL&1/2DBL
14927
Insert Rubber FemaleDoor Grabber Cast
16123
Gasket RoundFor Cast Door Holder
16124
Gasket Oval For Cast Door Holder
17226
LatchPaddle/RotaryTrimarkCH-501Lock
17335
LatchLeverWithRaisedTrigger
17513
CheckDoor StainlessSteel
18014
Cylinder Lock For 2Dbl (CH501)
18190
LatchLeverWithRaisedTrigger Locking

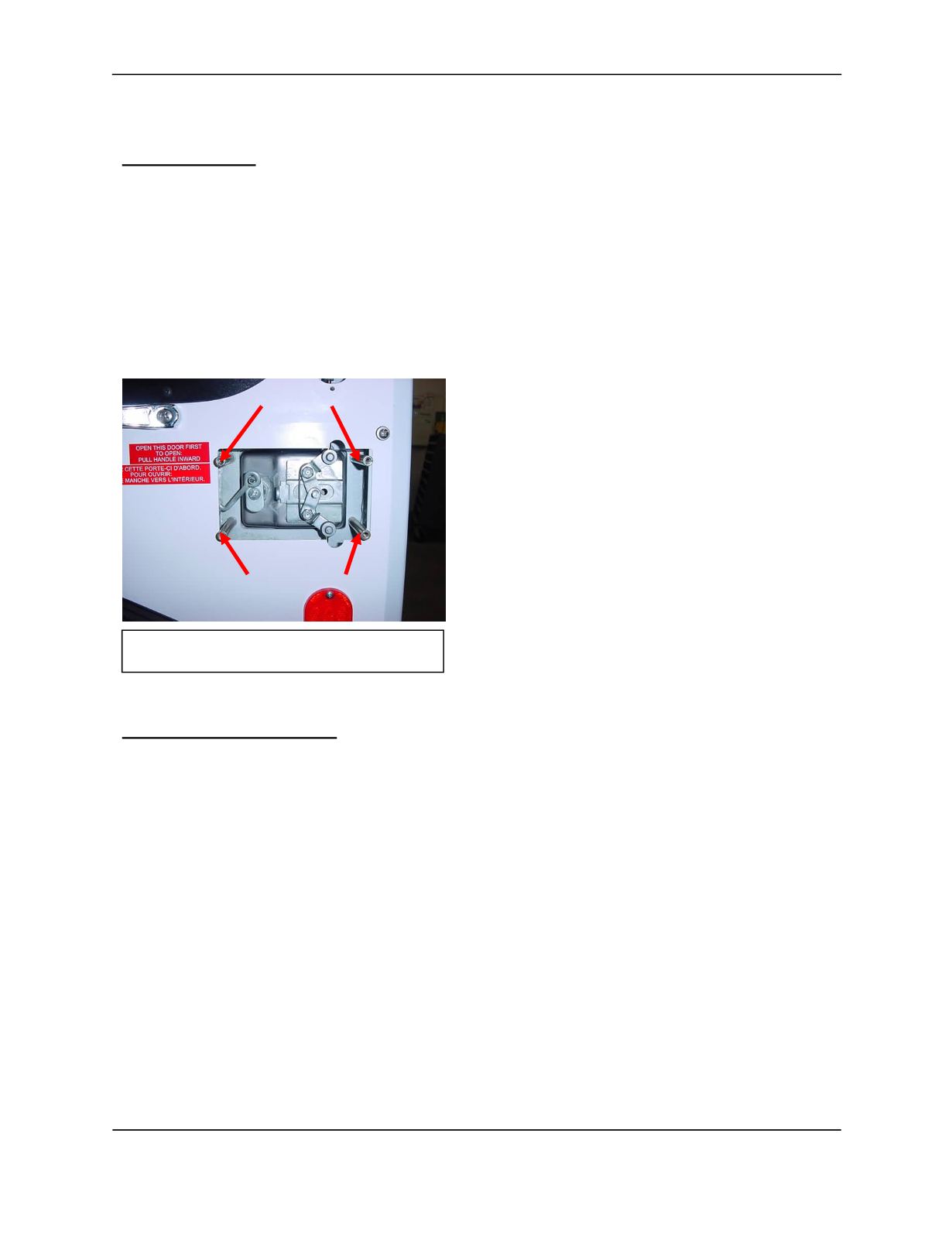

Fig6: Viewwith inside paddle latch removed,
standoffs indicated.
