# ASS :
Y. DUBÉ

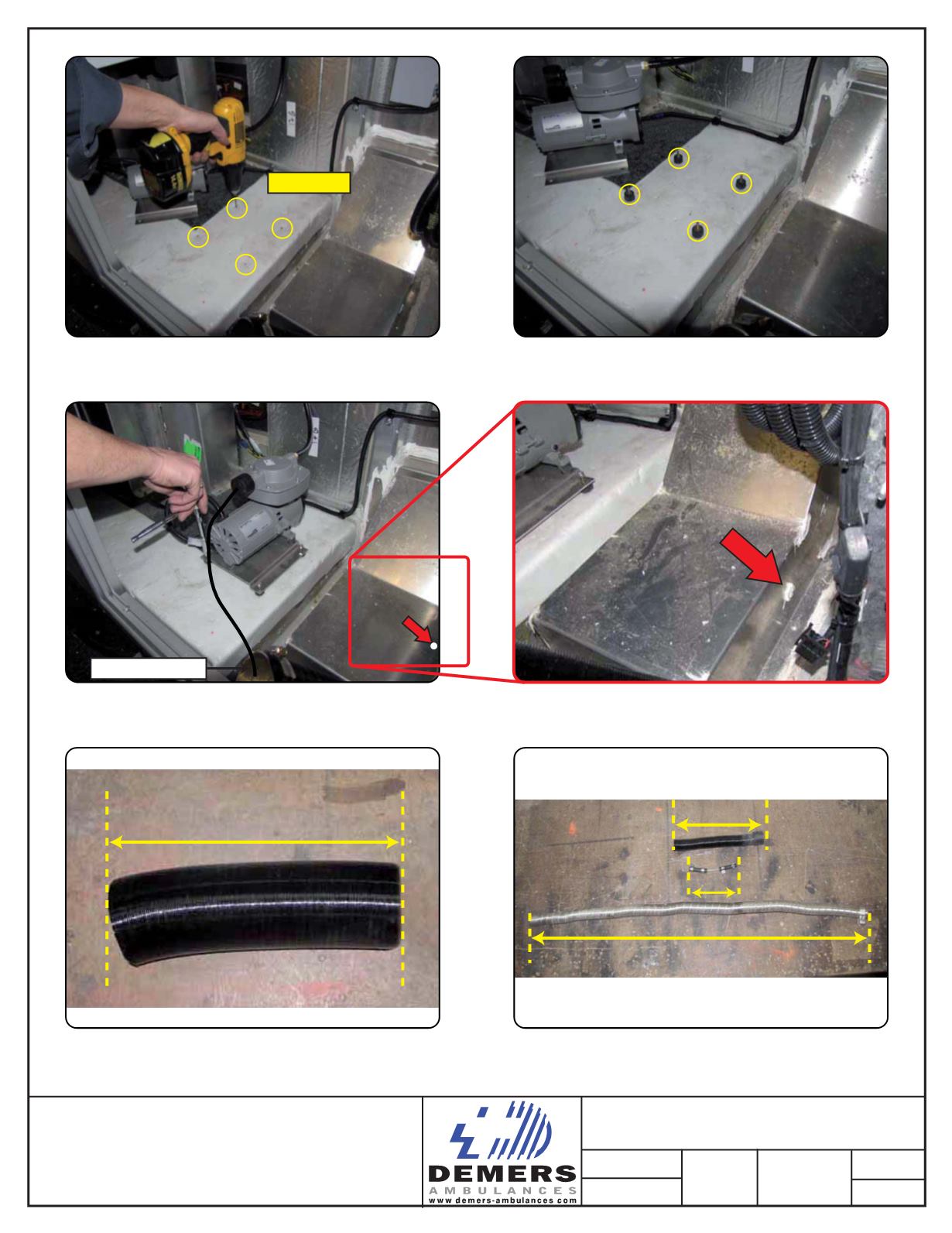

Drill 9/64" all the way through the metal.
Use original nuts to fix the suction pump on the wheel well.
Drill 3/8" in the floor to pass the drain tube.
Seal the hole.
Modify the hot air outlet as shown on picture.
Modify the fuel metering pump hose, the combustion
air inlet and the exhaust outlet as shown on picture.
Manually install the rubber bushings in the holes.
Drill 9/64"
15"
11"
40"
5½"
Hole drain tube
2011-08-17
6/9
1
# 00699
ESPAR RELOCATION
