not permissible
not permissible

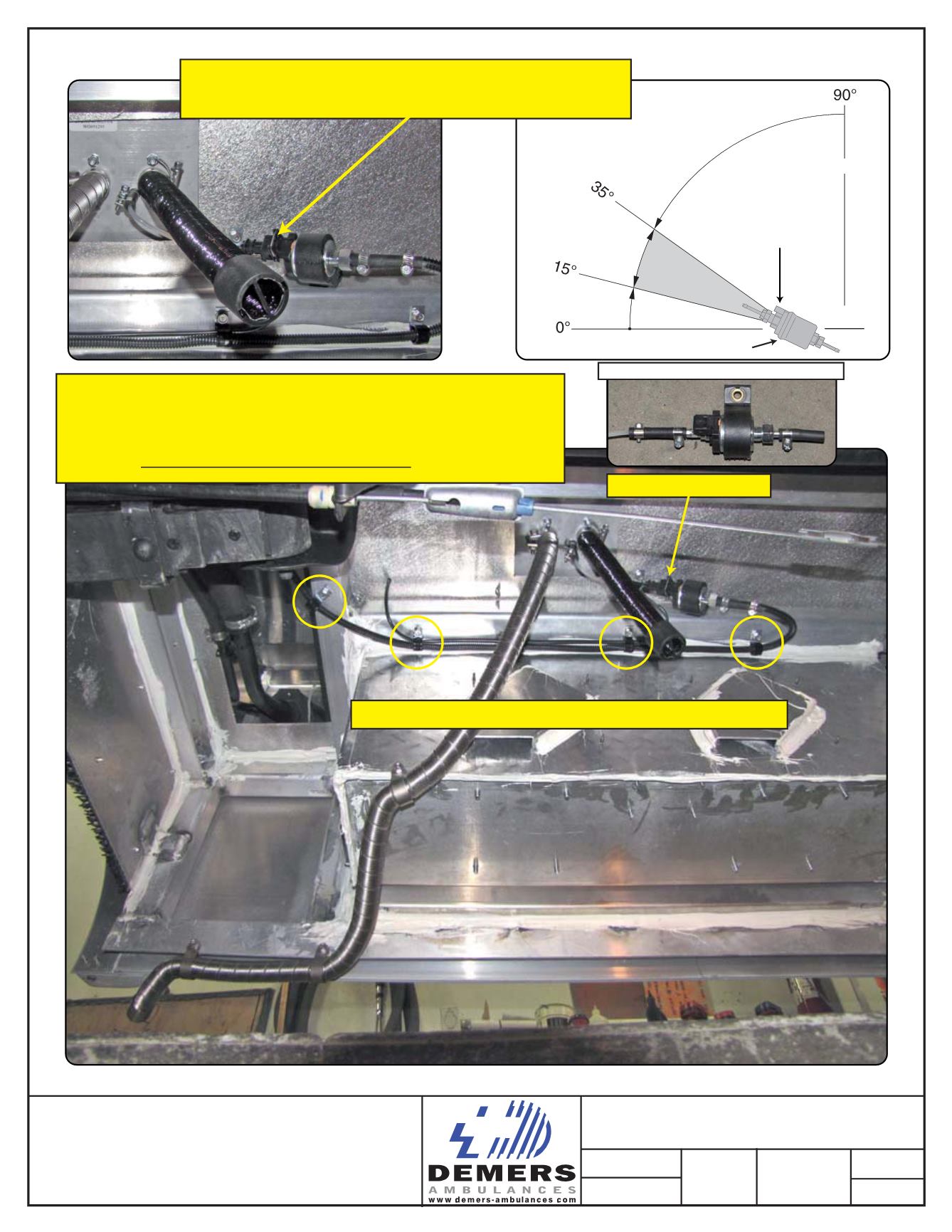

Installation position
Note: Proper mounting angle of the fuel pump is necessary to allow
any air or vapor in the fuel lines to pass through the pump
rather than cause a blockage.
Installation position in range 15° to 35°.
Note: All exposed electrical connections should be coated
with protective grease, (Dielectric grease, etc.).
Electrical connection
Connector
Fuel pump
Install the fuel pump with the original screw.
Use appropriate rubber hose clamps to secure fuel line
2011-08-17
8/9
1
# 00699
ESPAR RELOCATION
