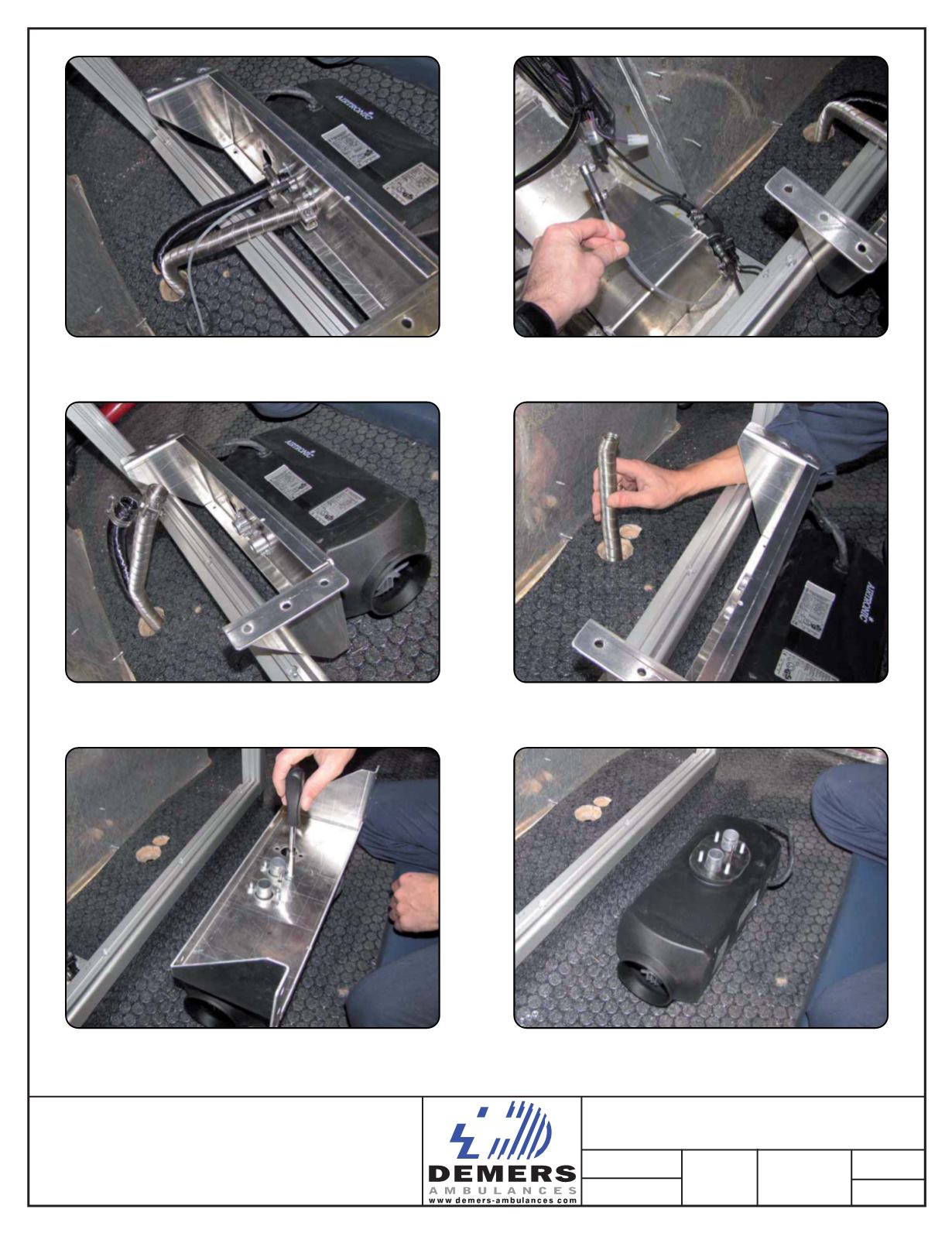

Disconnect the combustion air inlet and the exhaust
outlet.
Remove the 4 nuts to remove the air heater from the
support.
The air heater has been removed from the support.
Send the combustion air inlet and the exhaust outlet
under the vehicle back through the floor.
The air heater with the support has been removed.
Remove the fuel metering pump hose.
Send the fuel metering pump hose under the vehicle
back through the floor.
