Silicone seals

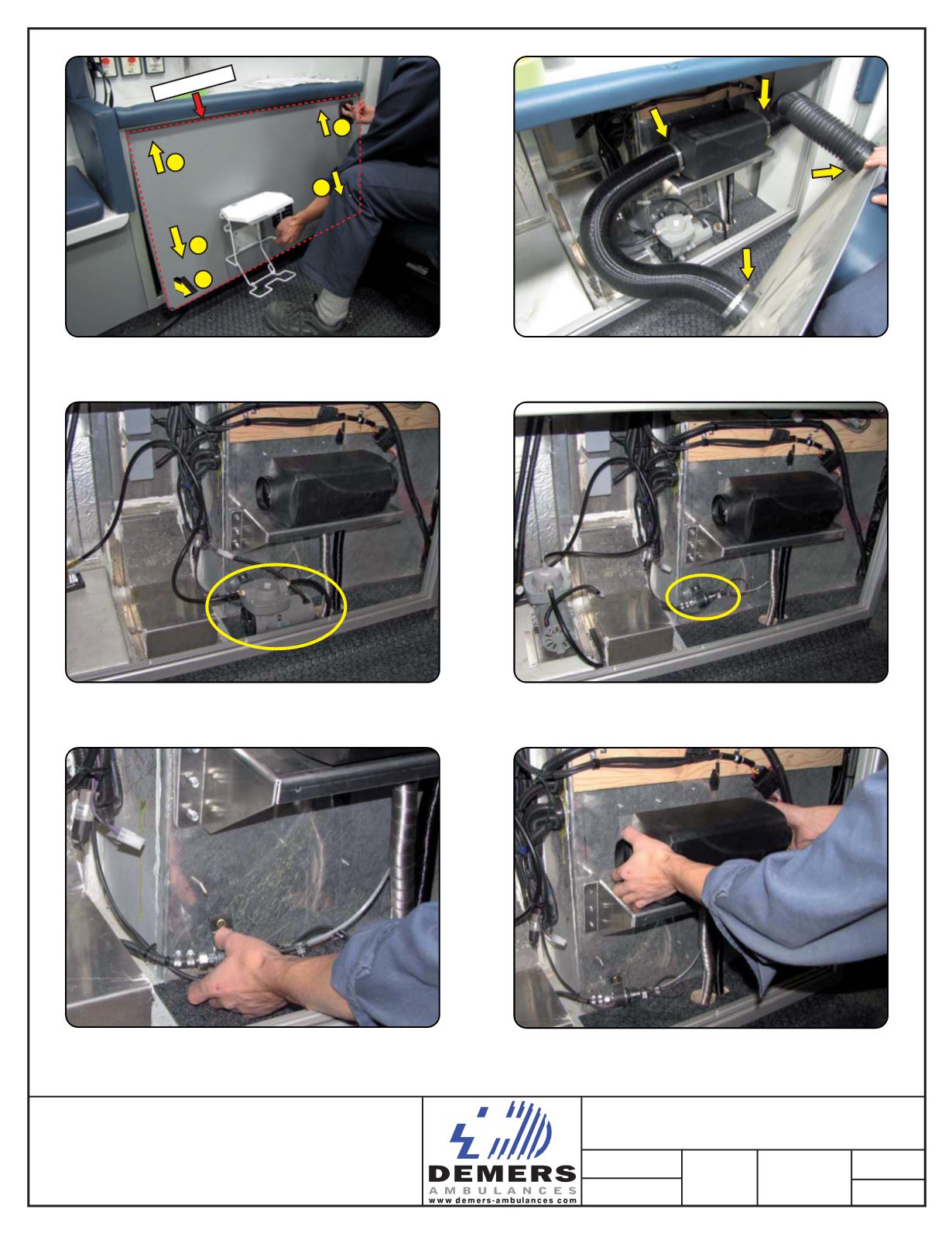

To remove the panel, remove the silicone seals. 1- Push
the panel upwards, 2 - then pull the bottom part out.
3- push the panel down to remove it.
Disconnect the hot air outlet and the air inlet.
Locate and remove the suction pump.
Locate the air heater's fuel metering pump.
Remove the air heater fuel metering pump.
Remove the air heater with the support.
