Dremel Multi-Max
FRONT
FRONT
FRONT
FRONT
REAR
REAR
REAR
REAR

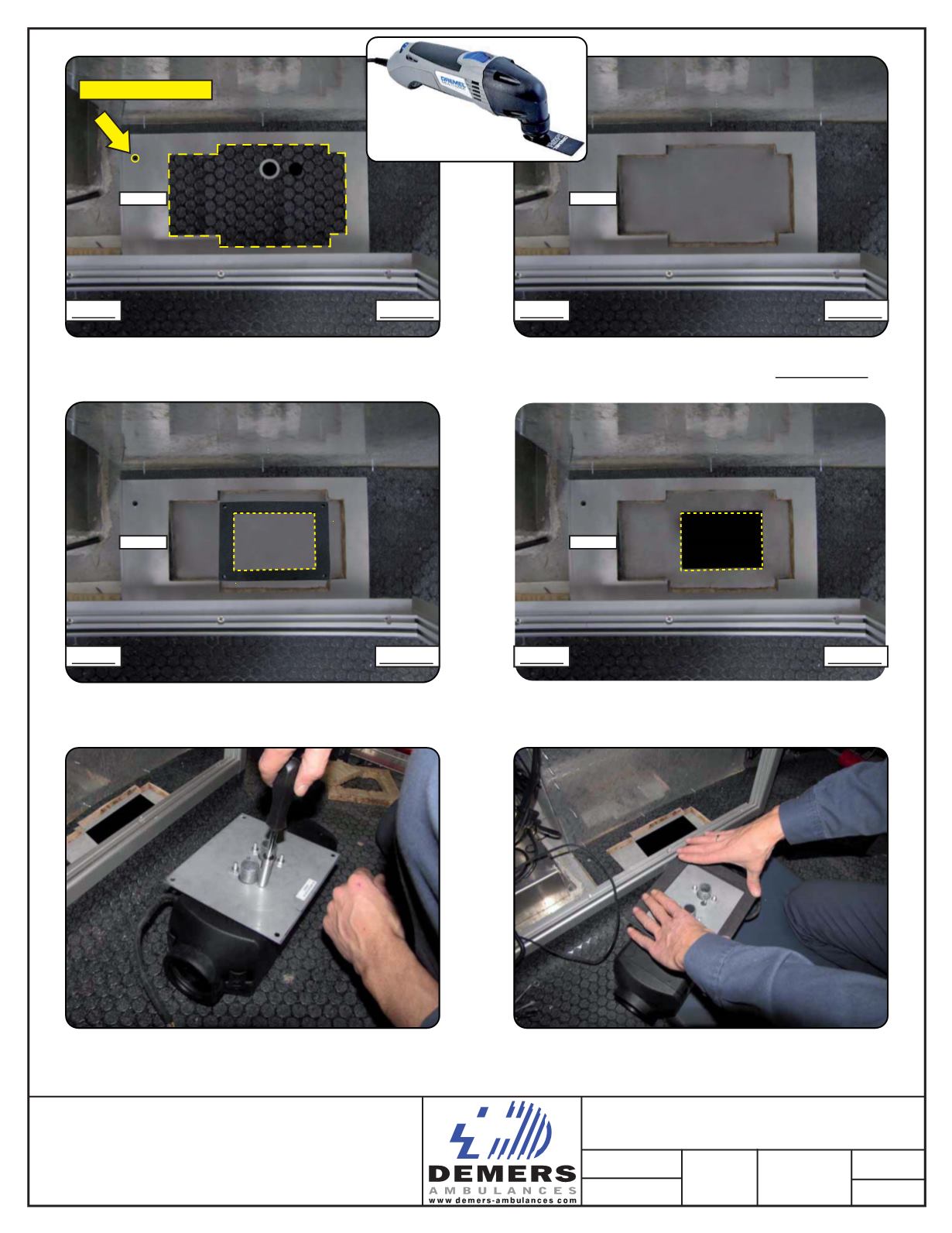

Place the template # D018934 and mark as shown on
picture.
Use provided gasket to mark the air heater hole as
shown on picture.
Install the provided plate with the 4 nuts.
Install the provided gasket.
Use a Dremel Multi-Max tool (or equivalent) to cut and
remove floor covering and plywood (Not the metal).
Cut and remove the aluminum floor.
Remove the guide.
Use a vacuum cleaner to remove all foreign material.
Mark and drill 3/8"
D018934
D018934
D018934
D018934
