7"
1½"

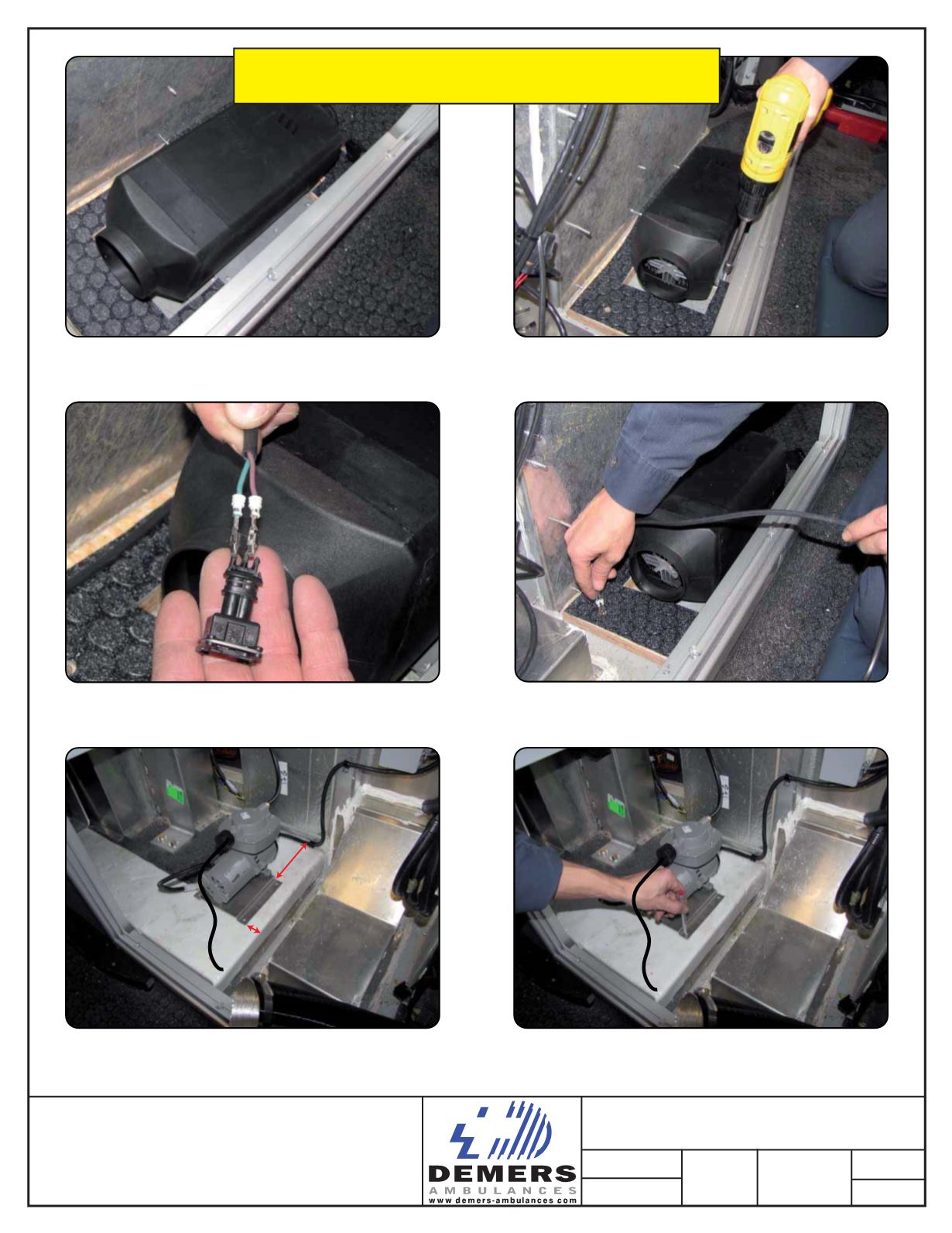

Place the air heater in the new location.
Remove the terminals on the connector from the fuel
metering pump power harness.
Place the suction pump as shown on picture to mark
the new holes.
Mark the 4 new holes.
Pass the fuel metering pump power harness through
the new hole.
Use 4 provided screws to fix the air heater on the
floor.
Note: Tighten screws sufficiently to ensure positive seal between
mounting plate and mounting surface. Do not over-tighten.
2011-08-17
5/9
1
# 00699
ESPAR RELOCATION
