Step 5
:

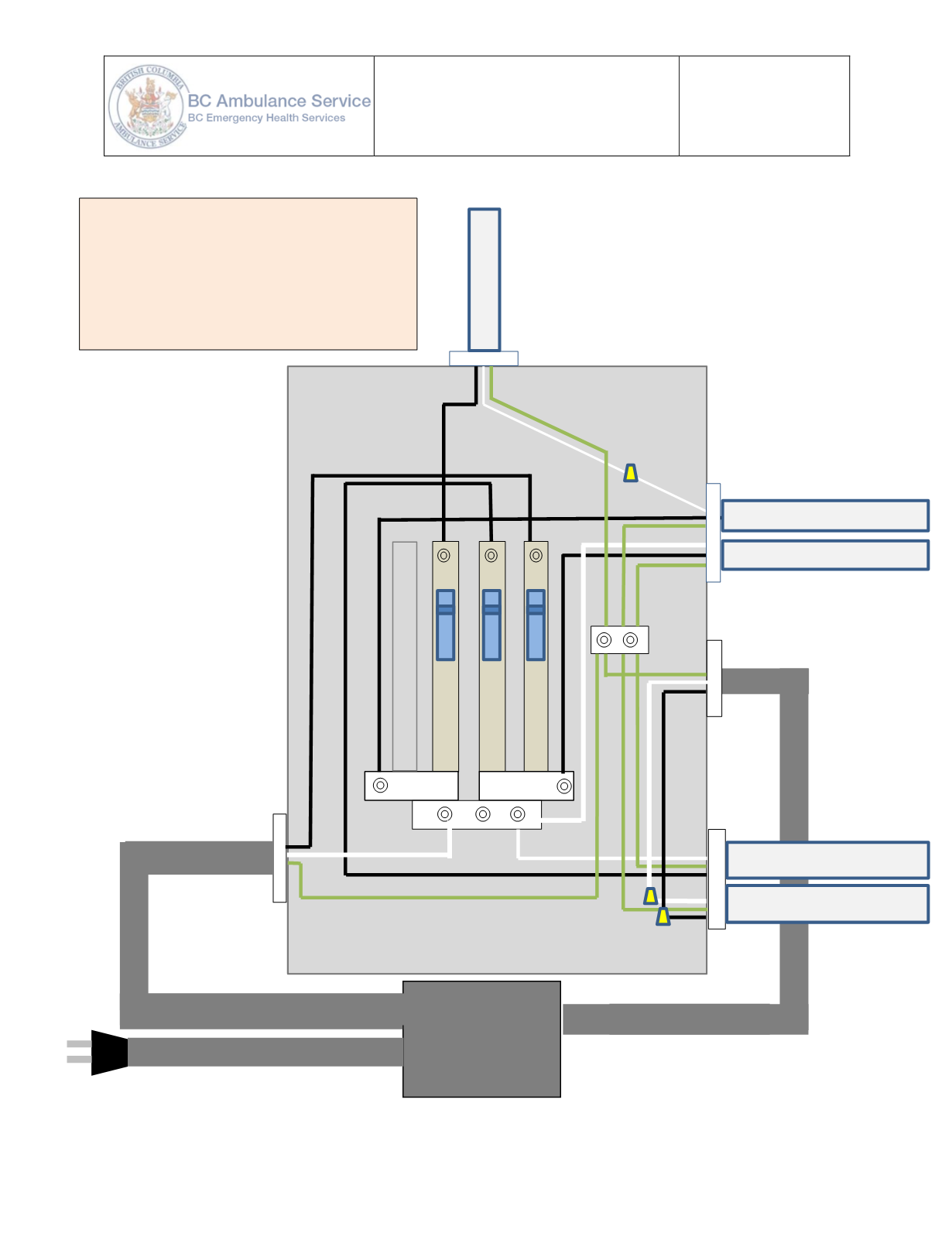

Recheck all the new
connections to match this diagram.
Ensure all Marret connections are taped
with electricians tape
,
and all screw
connections are tight.
PROwatt SW
TRANSFER SWITCH
PLUG INTO INVERTER POWER CORD
CONNECT TO AC
LOAD
C
H
A
R
G
E
R
TO A/C HEATER
110V COMP OUTLETS
FROM LOWER SHORELINE
PLUG
FROM UPPER SHORELINE
CONNECT TO AC POWER SOURCE
