110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
2
of
8
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275
FROM LOWER SHORELINE PLUG
FROM UPPER SHORELINE PLUG
TO BATTERY CHARGER
TO 110V HEATER
TO 110V OUTLETS

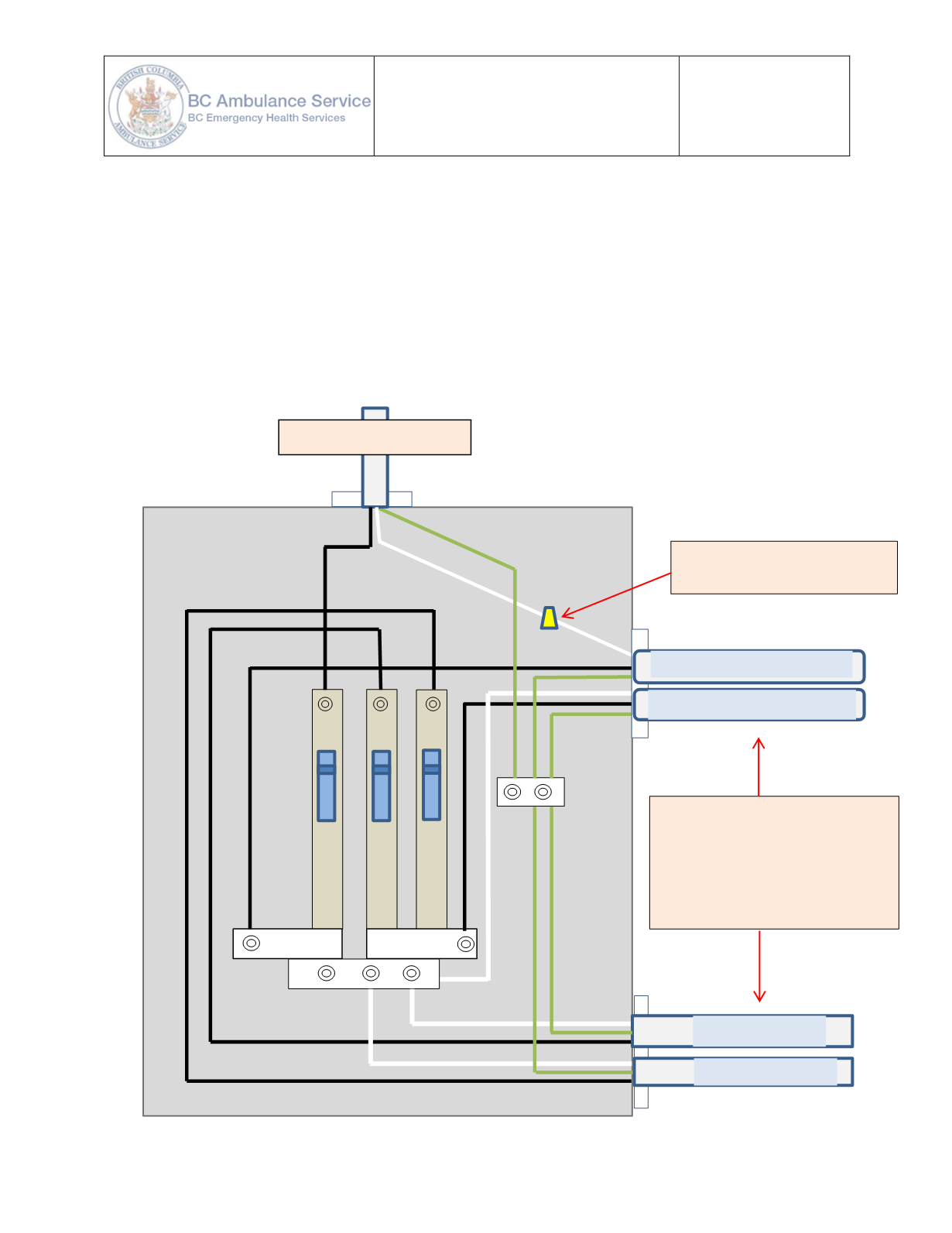

LOCATE THE 110 VOLT BREAKER BOX IN THE ELECTRICAL COMPARTMENT
STEP 1
:
Remove the cover from the 110V breaker box and compare the wiring with the diagram below.
IMPORTANT!
Confirm existing wiring configuration before continuing.
MARRET OR BUTT CONNECTOR
FROM PRIVIOUS MODIFICATION
NOTE: These two harness
positions may be reversed.
Please pay attention to their
positioning when performing
this modification.
