110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
4
of
8
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275

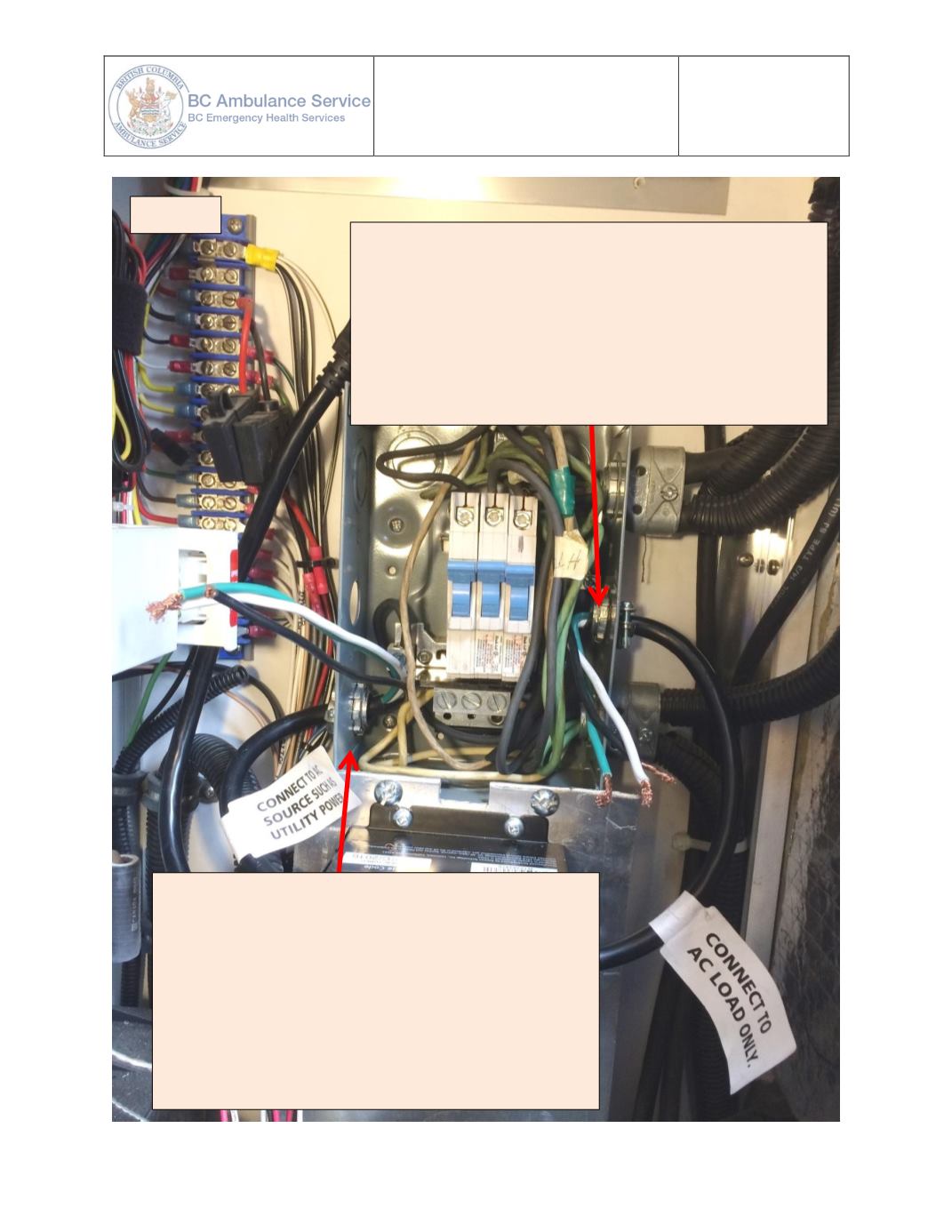

STEP 3
1.
Remove the knock out from the right center of the
breaker box & install the cable clamp.
2.
Measures 5 inches from the end of the transfer switch
harness labeled “Connect to AC Load Only” and remove the
outer harness insulation.
3.
Feed the transfer switch harness into the clamp allowing
up to ½ inch of outer harness insulation through the clamp
and secure.
4.
Measure 8 inches from the end of the transfer switch
harness labeled “Connect to AC power source” and
remove the outer case insulation.
5.
Remove the knock out from the bottom left of the
box & install the supplied cable clamp.
6.
Feed the transfer switch harness into the clamp
allowing ½ inch of outer harness insulation through the
clamp and secure.
