Remove andReplaceA/C-HeaterAssembly

Page 10 of 18

•

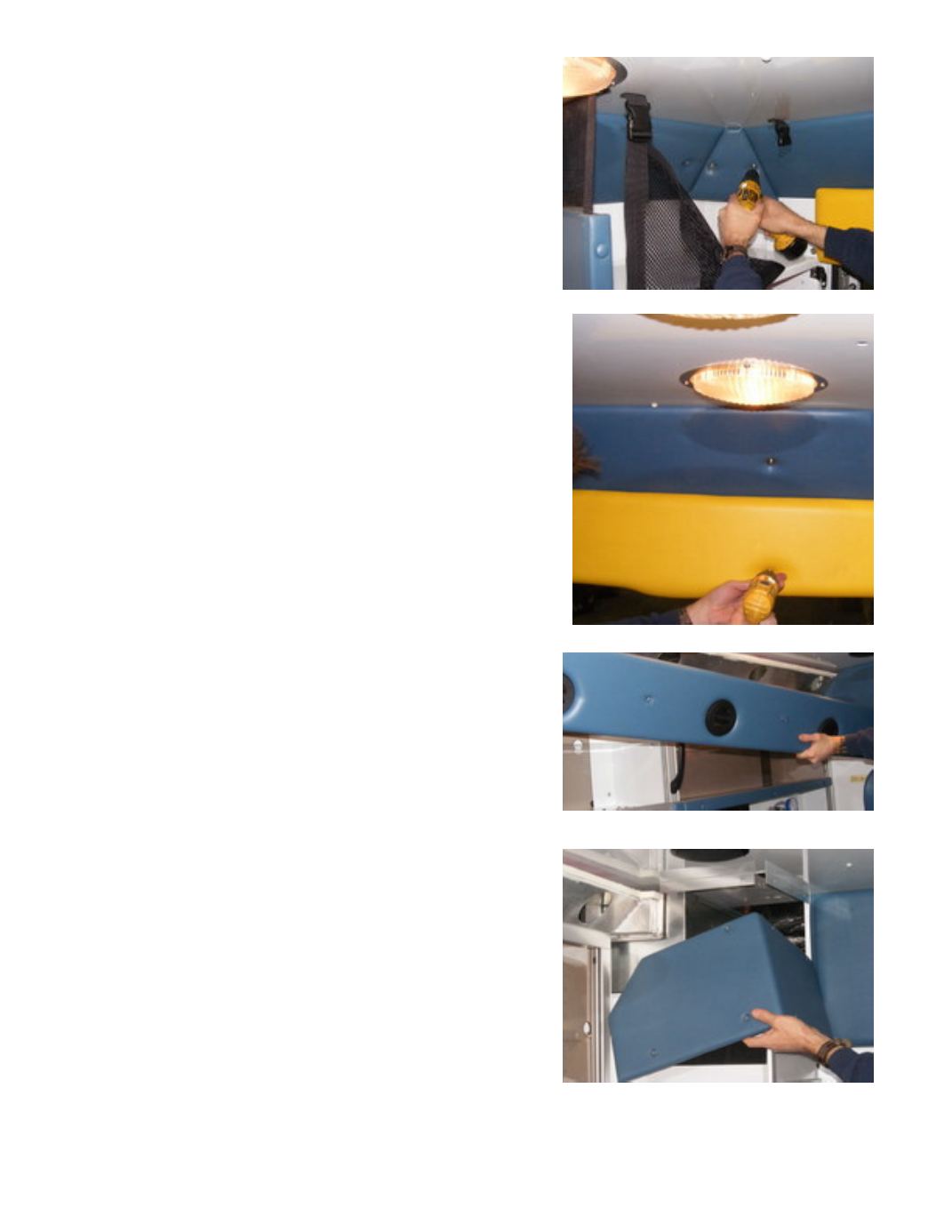

Start from the passenger’s side back corner

removing the following panels inorder:

Pie-shaped corner panel

Yellowheadbumper

Rear panel (above headbumper)

Driver’s side panel

Cabinet panel
