6 / 7
110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
6
of
7
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275

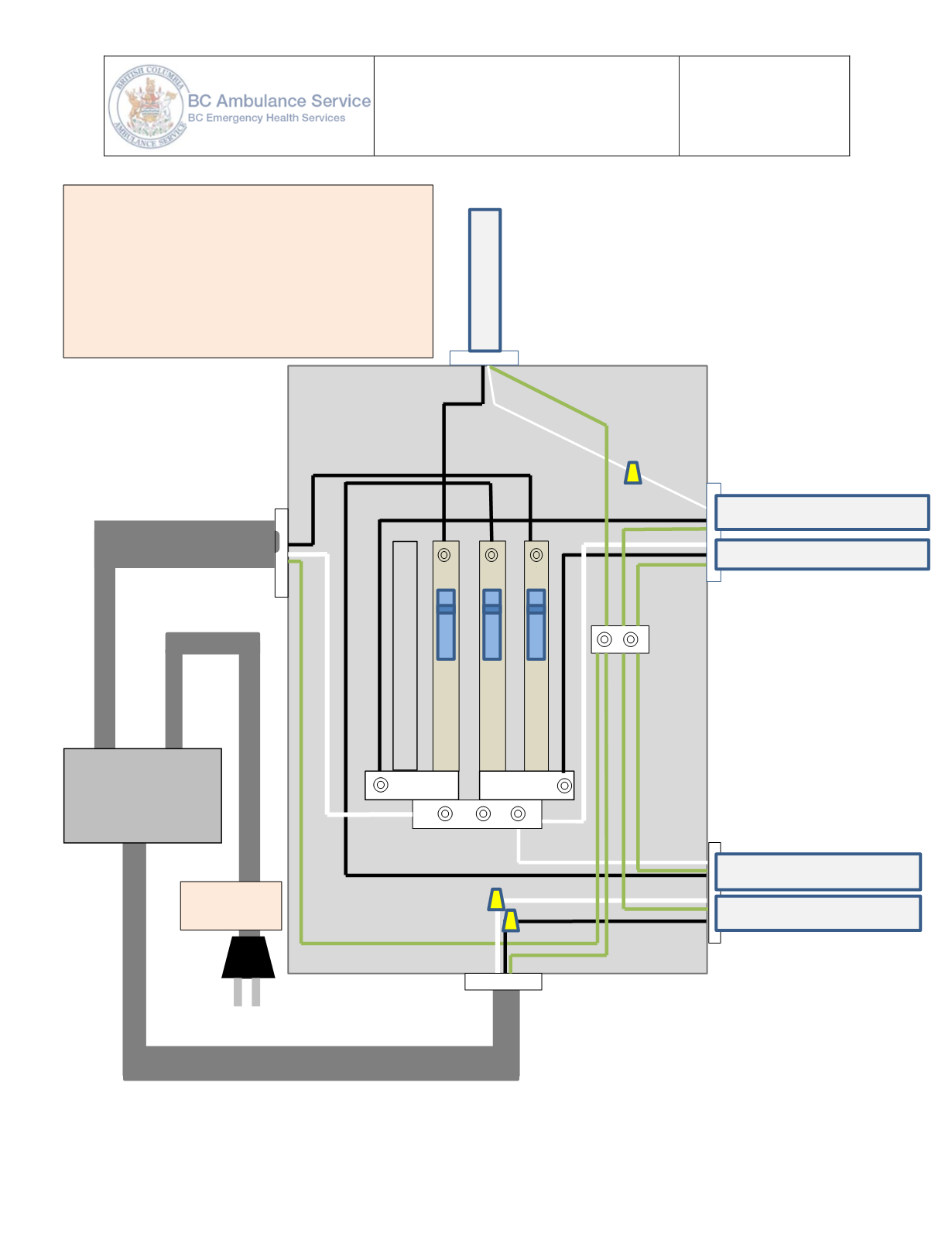

Step 5
:
Recheck that all the new connections match
this diagram.
Ensure all Marret connections are taped with
electrical tape, and all screw connections are
tight.
CONNECT TO
AC POWER SOURCE
CONNECT TO AC LOAD
CONNECT TO
INVERTER
C
H
A
R
G
E
R
FROM UPPER SHORELINE PLUG
FROM LOWER SHORELINE PLUG
TO A/C HEATER
TO 110V COMP OUTLETS
PROwatt SW
TRANSFER SWITCH
