110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
5
of
7
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275
STEP 4:
Locate the electrical cord coming from the Go Power
Inverter and going to the GFI plug in patient compartment.
Cut the cord in the area marked in the picture, being sure
to leave enough length to allow for rerouting to connect to
the “Transfer Switch Inverter Only” cord below the breaker
box.
Install the supplied female extension cord receptacle onto
the Inverter cord, and then connect it to the “Transfer
Switch Inverter only” wire.

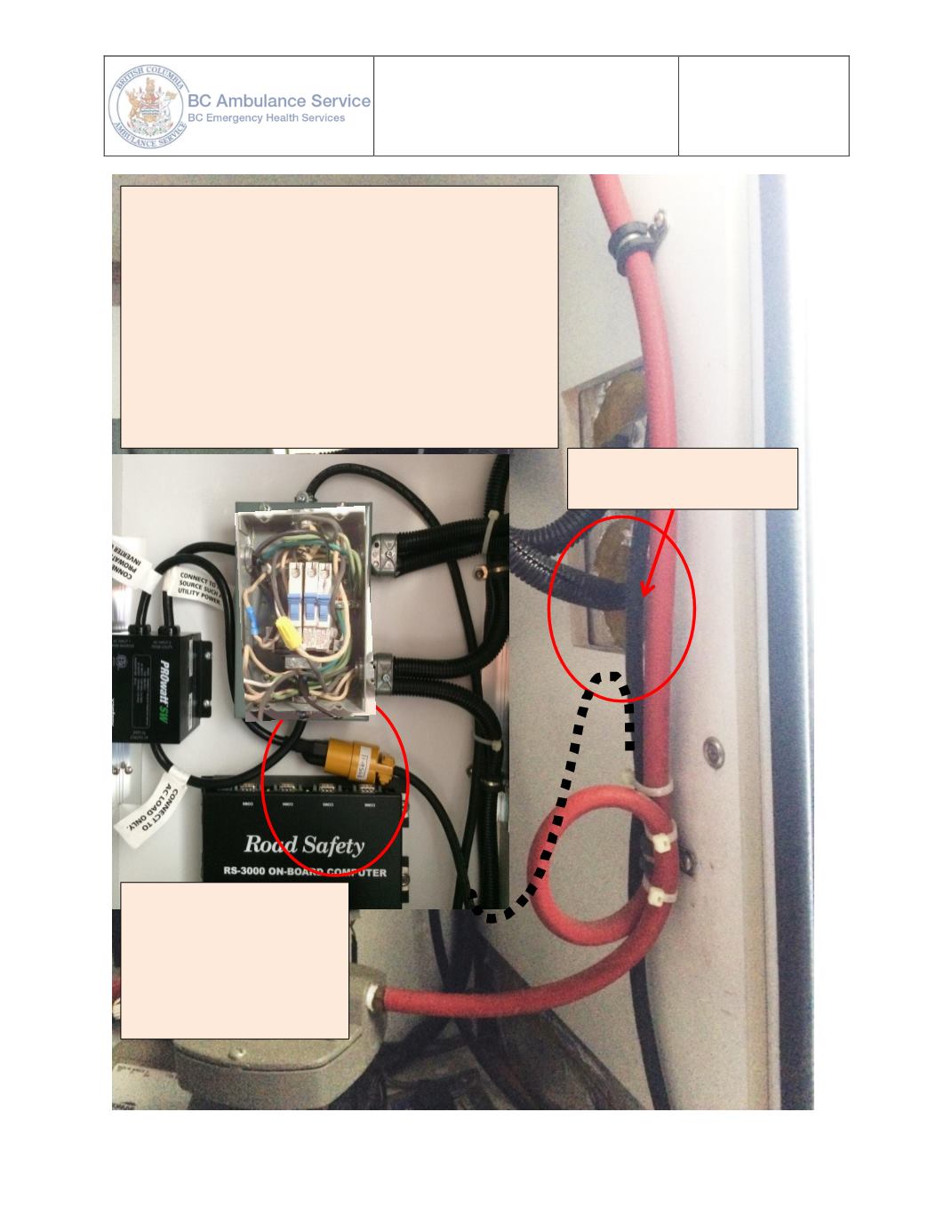

Cut electrical cord from
Inverter here
Install the cord receptacle
and plug into Transfer Switch
Black wire to Copper screw
White wire to Silver screw
Green wire to Green screw
