110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
3
of
7
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275
STEP 2
5.
Remove the knock out from the bottom center of the breaker box & install the cable clamp.
6.
Measures 5 inches from the end of the transfer switch harness labeled “Connect to AC Load Only”
and remove the outer harness insulation.
7.
Feed the transfer switch harness into the clamp allowing up to ½ inch of outer harness insulation
through the clamp and secure.

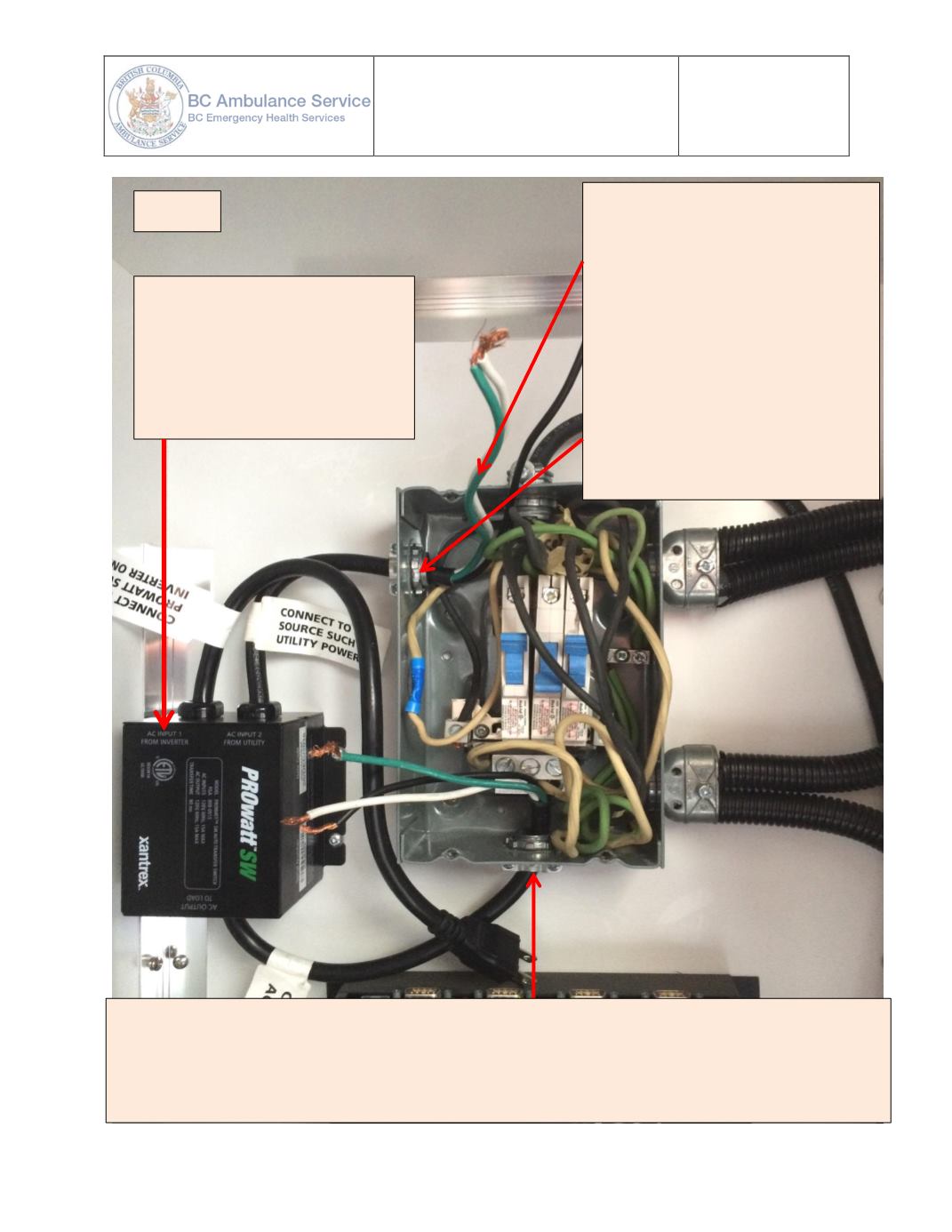

1.
Install the Transfer Switch at
the location shown using the
supplied screws.
Confirm the location is close
enough to the breaker box to
prevent stress on the wiring.
2.
Measure 7 inches from the end
of the transfer switch harness
labeled “Connect to AC power
source” and remove the outer
harness insulation.
3.
Remove the knock out from the
top left of the box & install the
supplied cable clamp.
4.
Feed the transfer switch harness
into the clamp allowing ½ inch of
outer harness insulation through
the clamp and secure.
