110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
2
of
7
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275
FROM LOWER SHORELINE PLUG
FROM UPPER SHORELINE PLUG
TO BATTERY CHARGER
TO 110V HEATER
TO 110V OUTLETS
LOCATE THE 110 VOLT BREAKER BOX IN THE ELECTRICAL COMPARTMENT
STEP 1:

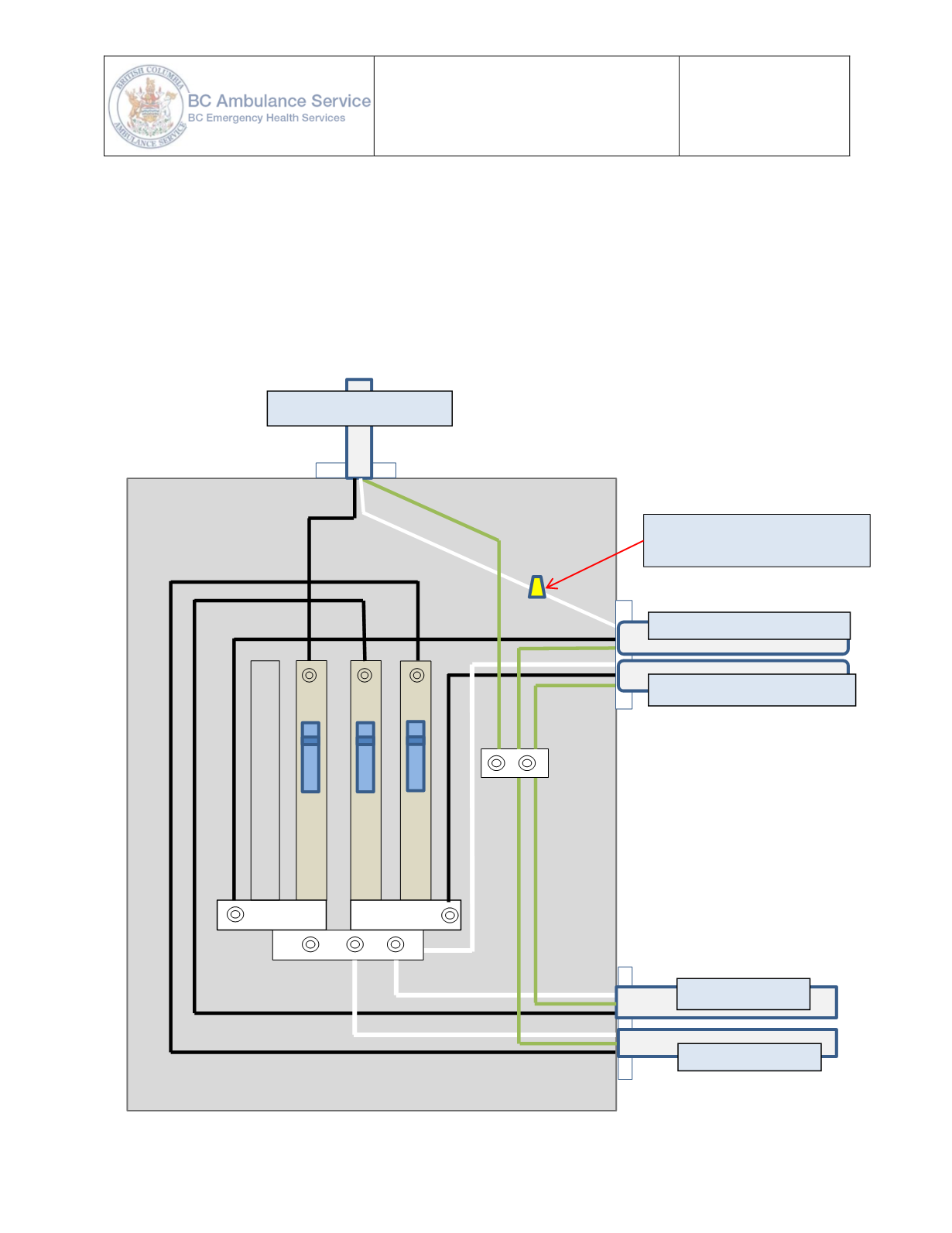

Remove the cover from the 110V breaker box and compare the wiring with the diagram below.
IMPORTANT!
Confirm existing wiring configuration before continuing.
MARRET OR BUTT CONNECTOR
FROM PRIVIOUS MODIFICATION
