Warning - FireHazard
13
Installation Procedures
Exhaust Connection
A 24mm flexible tube exhaust pipe is required for the exhaust.
An exhaust clamp is used to secure the exhaust to the the
heater.Connect the exhaust as follows:
• Connect the exhaust pipe to the exhaust port on the
heater and attachwith clamp provided.
• Run exhaust to an open area to the rear or side of the
vehicle so that fumes can not build up and enter the
passenger compartment or the heater combustion air intake.
• Install exhaust pipewith a slight slope or drill a small hole
in the lowest point to allowwater to run out. Any
restriction in exhaust will cause operational problems.
• Route the exhaust pipe from the heater using “p” clamps
provided.
Caution:
Run exhaust so that it cannot be plugged
by dirt, water or snow. Ensure the outlet
does not face into the vehicle slip stream.
Route exhaust beyond the skirt of the cab and
outside of the frame area.
Failure to comply with this warning
could result inCarbonMonoxide Poisoning.
Combustion air must be drawn in from the outside.The com-
bustion air openingmust be kept free at all times.
• Connect the air intake pipe to the intake port on the
heater and securewith clamp provided.
Caution:
Do not install the intake opening facing the
vehicle slipstream. Ensure that the opening
cannot become cloggedwith dirt or snow
and that any water entering the intake can
drain away.

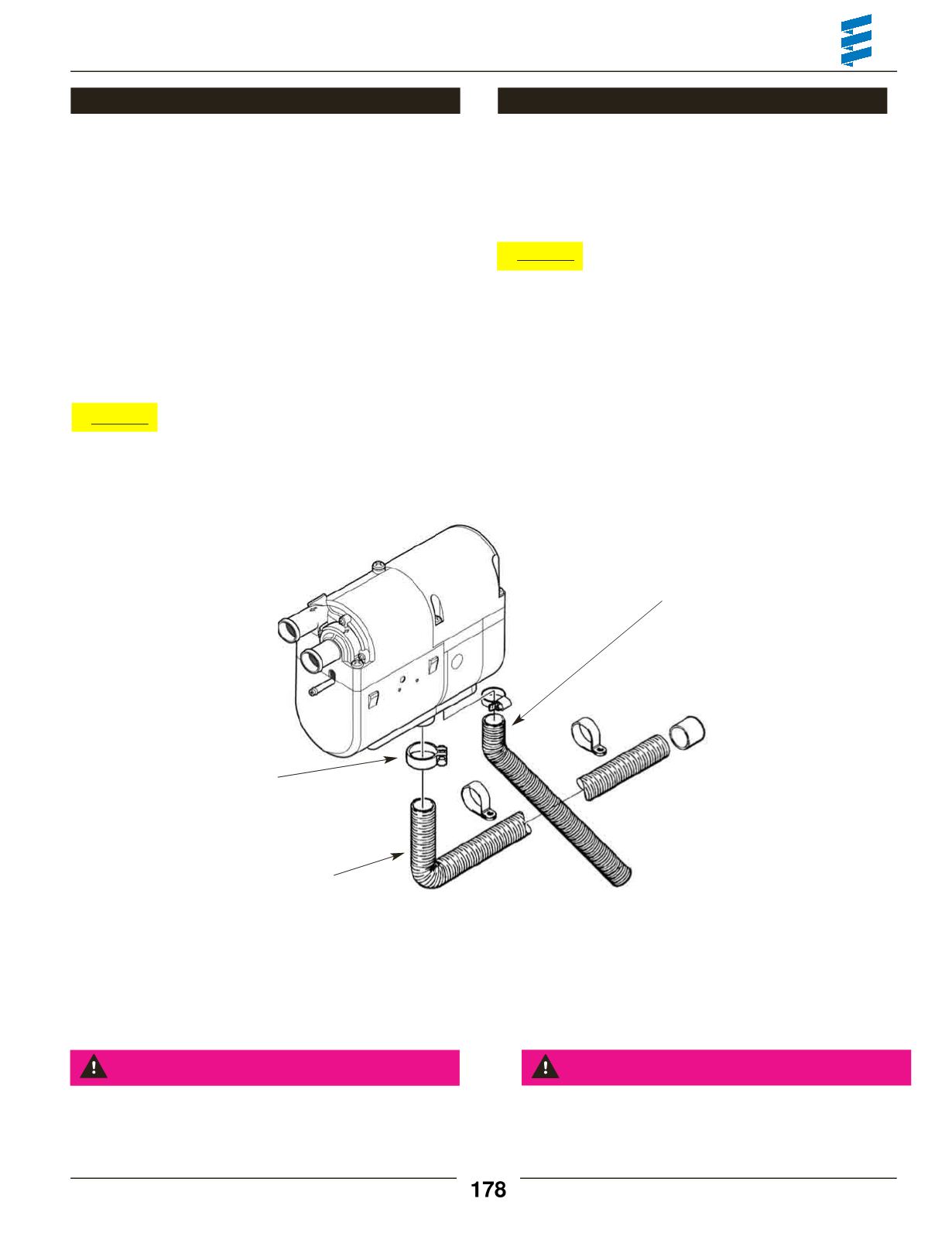

24mm Flexible Exhaust
Min 8” (0.4mtr)
Max 78” (2mtr)
Exhaust
Clamp
(27mm - 30mm)
End Sleeve
Air IntakeHose
Min 8” (0.04mtr)
Max 39” (1mtr)
(When not mounted in
a Protective Box)
IntakeConnection
Warning - AsphyxiationHazard
The exhaust is hot, keep aminimum of 5cm
(2”) clearance from any heat sensitivematerial.
Route exhaust so that the exhaust fumes
cannot enter the passenger compartment.
