Installation Procedures

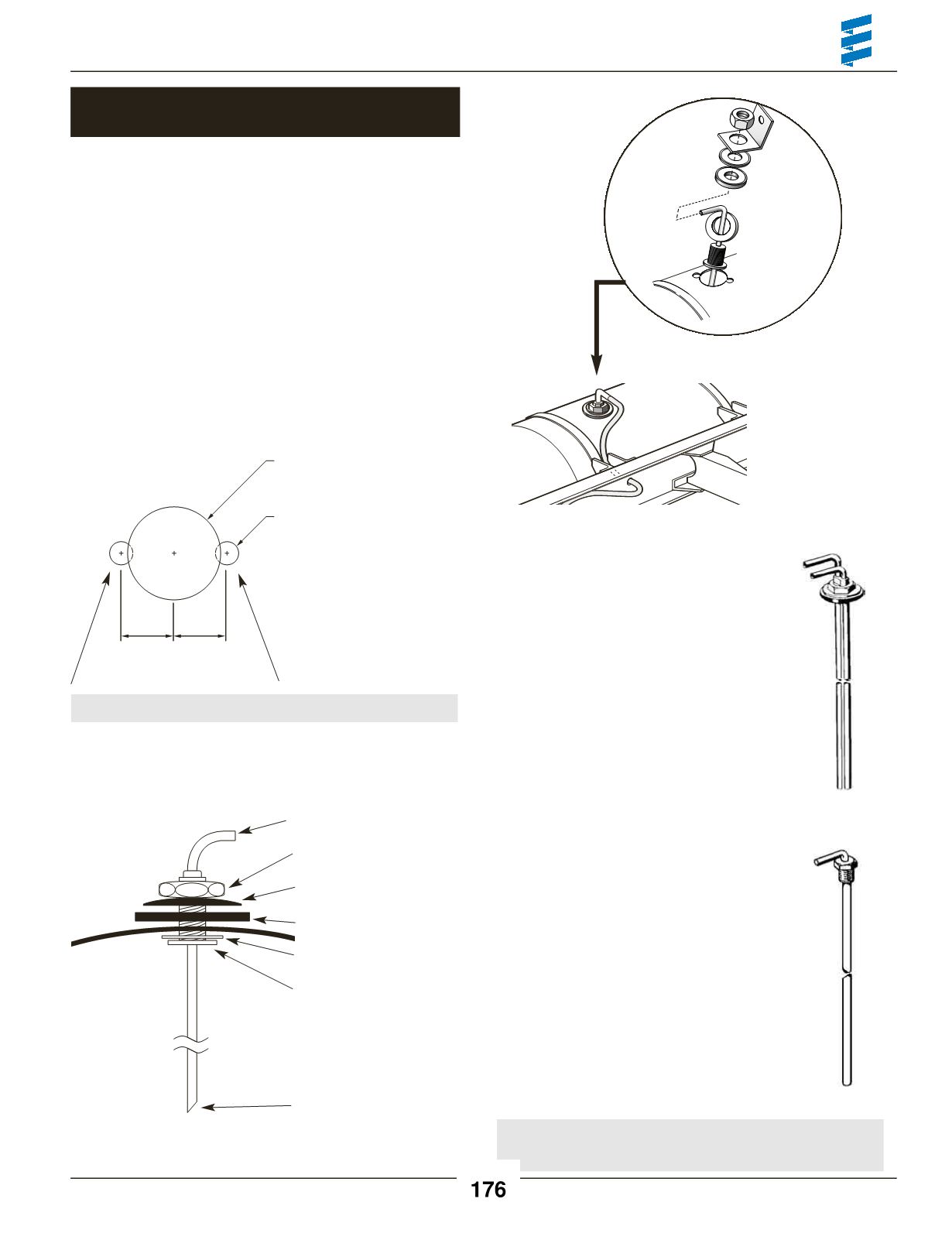

Fuel Pick-UpPipe Installation
(StandardPick-Up)
Note:
Drill the two (1/4”) holes first.
Ø
1.0”
9 / 16” 9 / 16”
Ø
1 / 4” (2HOLES)
( Optional Pick-UpPipewithNPT fitting )
• Remove an existing plug from the top of
the fuel tank.
• Cut the fuel pick-up pipe to length.
• Secure the fuel pick-up pipe into position
using the combinedNPT compression
fitting as shown.
Doublepick ups (usedwith combo kits)
• DoubleNPT pipe.
P/N: 20 2900 20 21 07
(CA0 12 107)
Note:
NPT fittings are available in various sizes
(Refer to ESPARProduct Catalogue).
Fuel Pick-Up Pipe
Nut
Sheet MetalWasher
Rubber Gasket
Steel SafetyWasher
HoldingTabs
Allow 2.5” from fuel pick-
up to tank bottom. Allow
only 1” for flat bottom
tanks.
End tip of the fuel pick-up
pipe should have angle to
avoid picking up dirt and
subsequent blockage.
• Choose a protectedmounting location close to the pump
and heater. A spare fuel sender gauge plate provides an
ideal mounting location. If one is not available...
• Drill mounting holes in tank to accommodate pick-up pipe
as shown.
• Cut the fuel pick-up pipe to length. Allow 2-2.5” from bot-
tom of tank.
• Mount the fuel pick-up pipe as shown.
• Lower the fuel pick-uppipe (with reinforcingwasher) into the
tank using the slot createdby the two0.6cm (1/4”) holes.
• Lift the assembly into position through the 2.5cm (1”) hole.
• Assemble the rubber washer, metal cupwasher and nut.
ø 2.5cm (ø1.0”)
ø 0.625 cm (2Holes)
(ø 1/4”)
1.5 cm
(9/16”)
1.5 cm
(9/16”)
