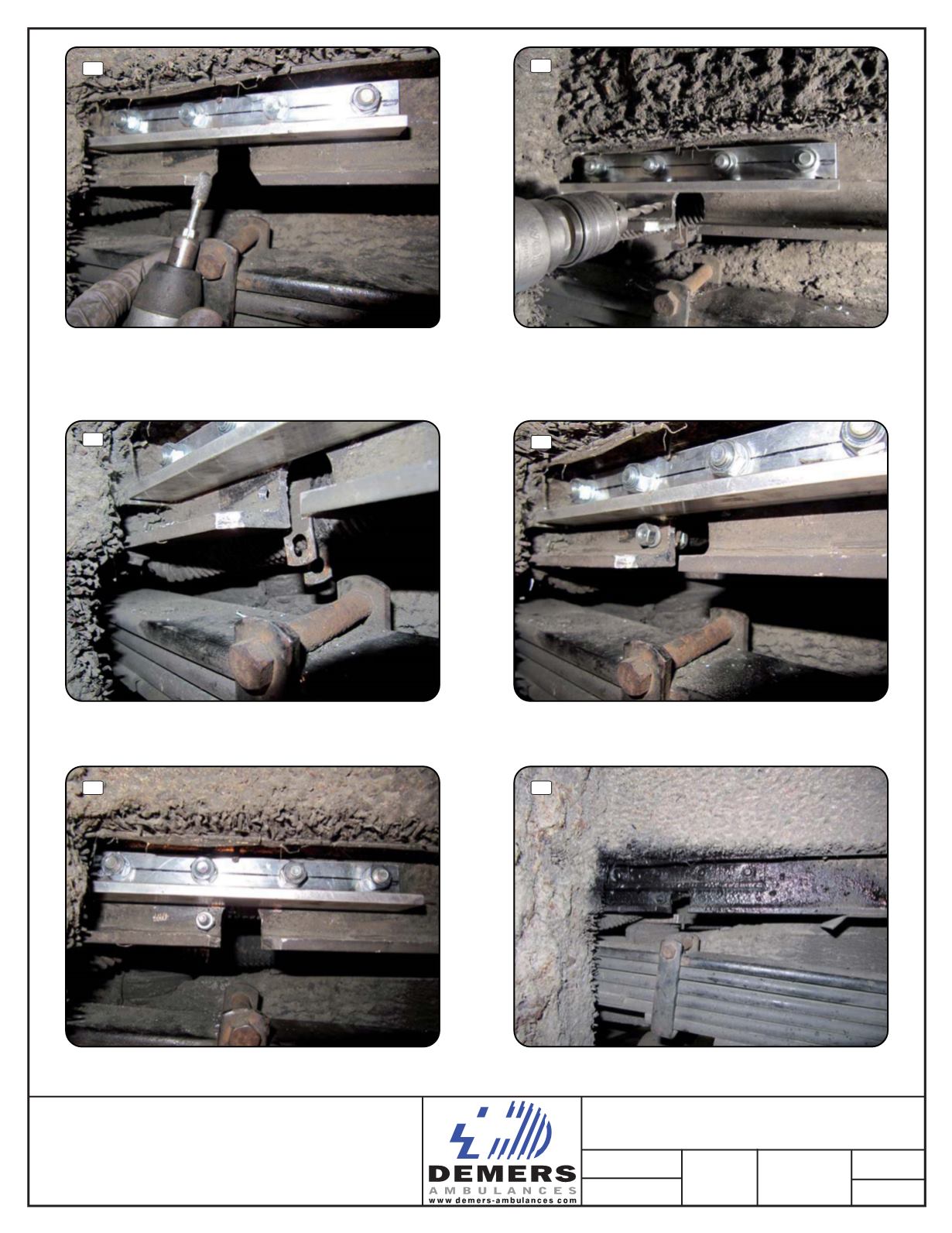

Make sure that no part of the spring clip can interfere with
the flange.
Install reinforcement using bolts and lock washers supplied.
Using a die grinder, grind the front of the flange so that no
part of the spring clip can interfere with the flange.
Apply undercoating to cover all bare aluminium.
Drill 1/4" hole as shown.
Using supplied bolt, nut and lock washer, install clamp
to hold the hose above the opening, as shown.
View of the installed clamp.
REAR SPRING UPGRADE MODIFICATION
