THE INFORMATION, TECHNICAL DATA AND STANDARDS
DESCRIBED HEREIN ARE THE EXCLUSIVE PROPERTY OF DEMERS
AMBULANCES AND/OR CONTAIN PROPRIETARY RIGHTS OF
OTHERS AND ARE NOT TO BE USED OR DISCLOSED TO OTHERS
WITHOUT THE WRITTEN AGREEMENT OF DEMERS AMBULANCES.
# ASS :
Y. DUBÉ
5
6
7
NOTE :

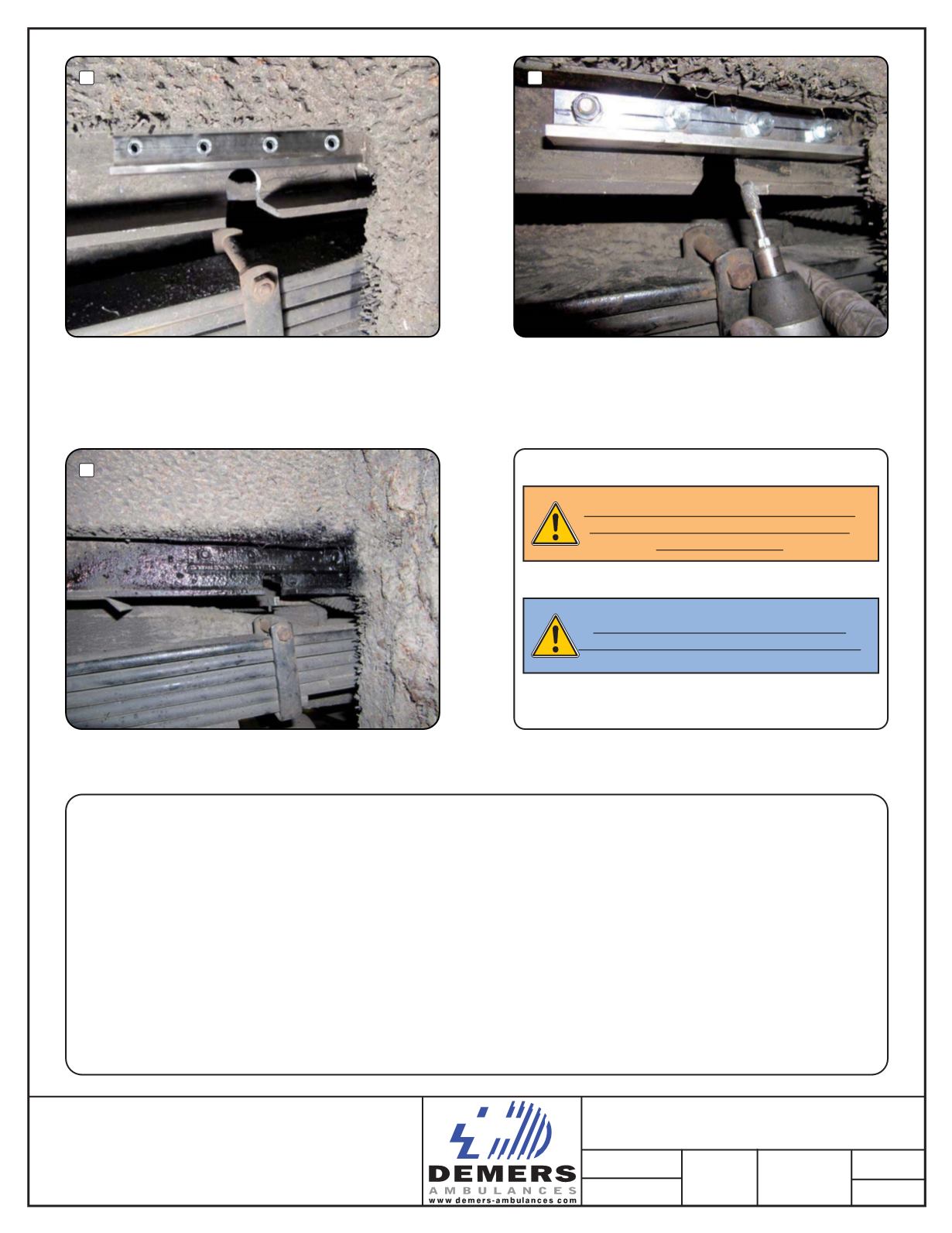

Place reinforcement provided with flange down,
flush with the top of the opening, as shown.
Mark the holes and drill 3/8"
Install reinforcement using bolts and lock washers supplied.
Using a die grinder, grind the front of the flange so that no
part of the spring clip can interfere with the flange.
Apply undercoating to cover all bare aluminium.
FOR UNIT NUMBERS 62900 AND ABOVE,
REPEAT THE SAME METHOD FOR THE
PASSENGER SIDE.
FOR UNIT NUMBERS 62800 TO 62899,
FOLLOW THE INSTRUCTIONS ON PAGE 3.
REAR SPRING UPGRADE MODIFICATION
2012-07-04
0
# 00804
2/4
