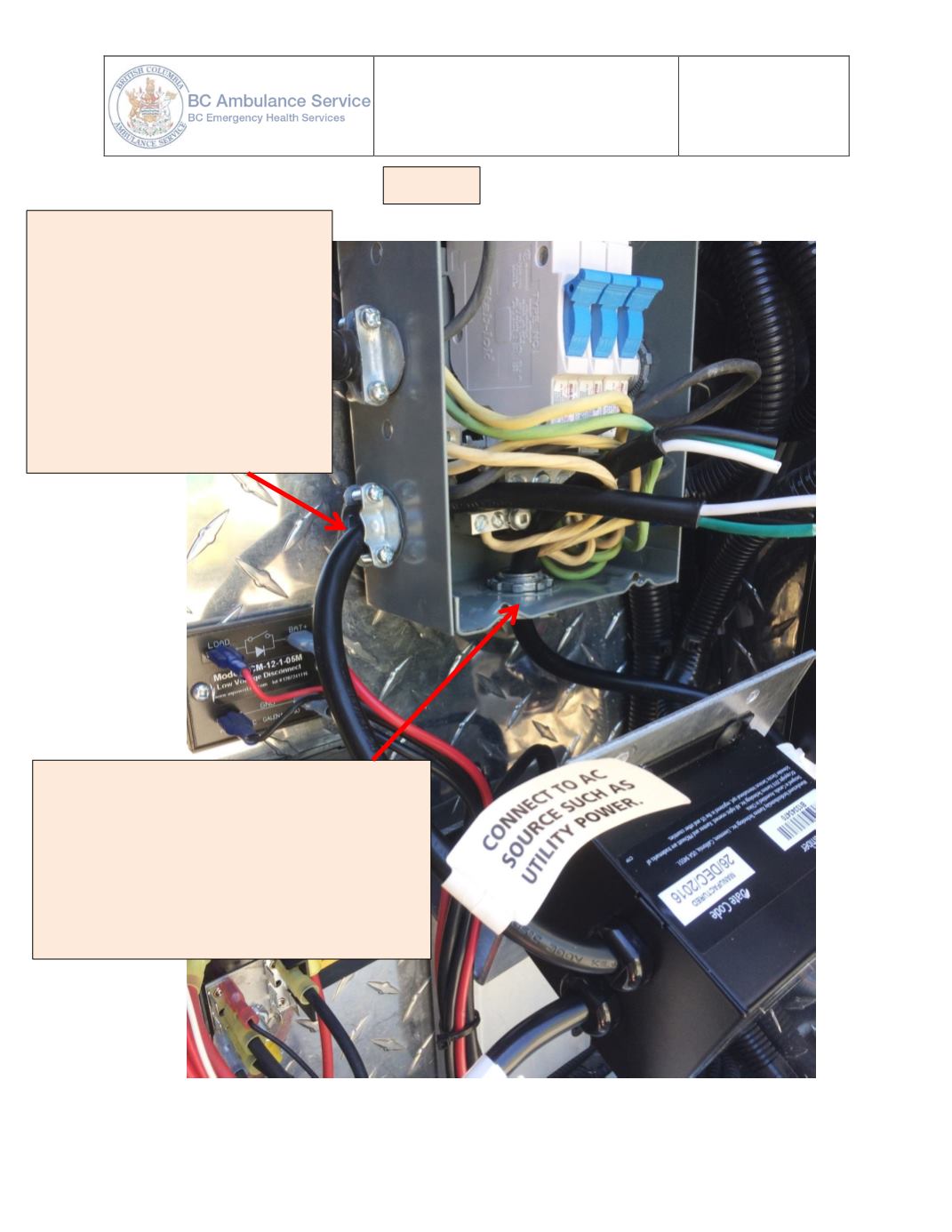

STEP 3
4.
Measure 5 inches from the end of the transfer
switch harness labeled “AC Load Only” and
remove the outer harness insulation.
5.
Remove the knock out from the bottom center
of the breaker box and install the cable clamp.
6.
Feed the transfer switch harness into the
clamp allowing up to ½ inch of the outer harness
insulation through the clamp and secure.
1.
Measure 8 inches from the end of
the transfer switch harness labeled
“Connect to AC Power Source” and
remove the outer harness insulation.
2.
Remove the knock out from the
bottom left of the breaker box and
install the cable clamp.
3.
Feed the transfer switch harness
into the clamp allowing up to ½ inch
of outer harness insulation through
the clamp and secure.
