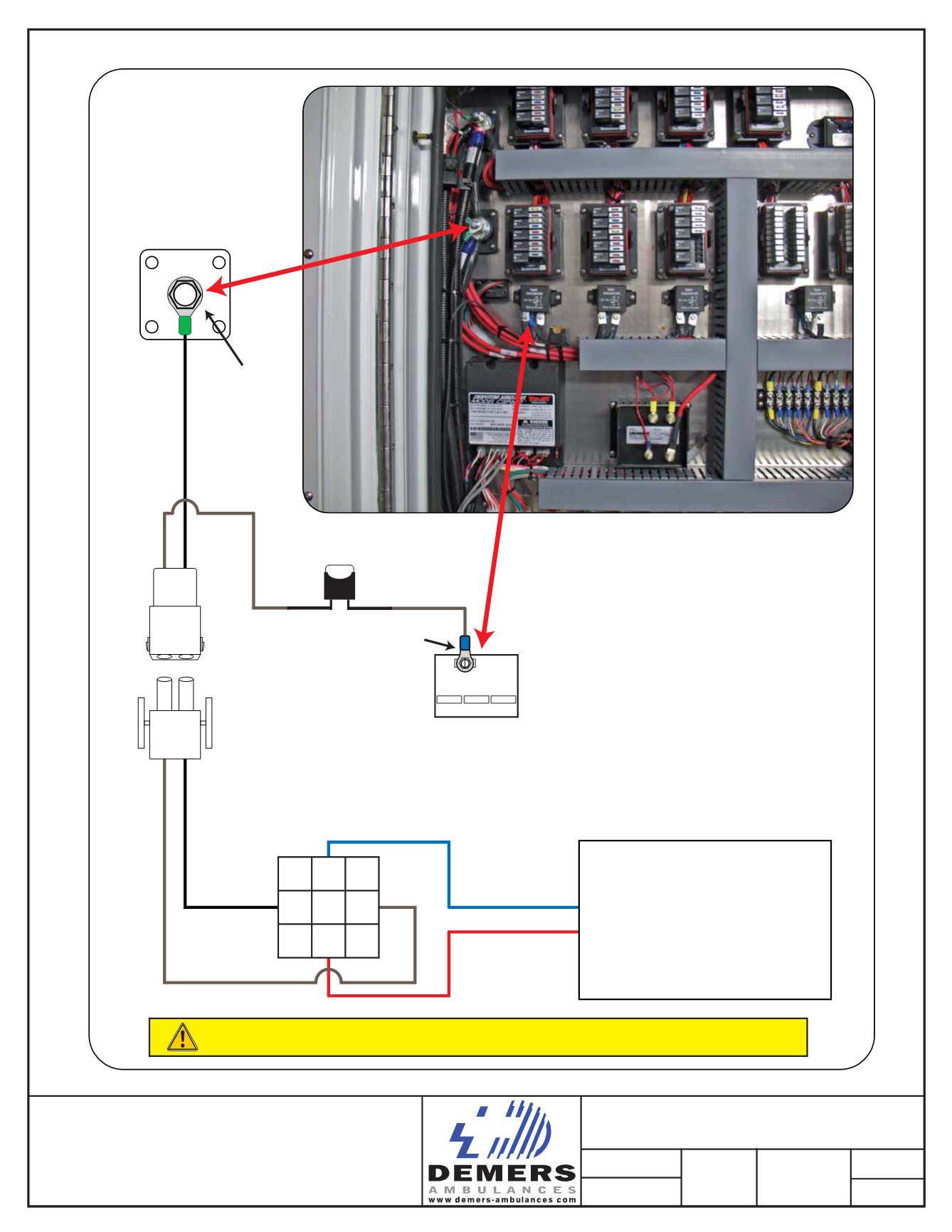

INVERTER MODIFICATION
87
85 86 30
75A RELAY
RA
INVERTER
600 W
1 2
1 2
FUSE 5 AMP
5A
30
85
86
87
BLACK
BLUE OR BLACK
RED OR GRAY
BLACK
BROWN
BROWN
GROUND JONCTION
BLOCK
THE RED WIRE MAY BE GRAY, AND THE BLUE WIRE MAY BE BLACK DEPENDING ON THE VEHICLE.
CONNECT TO TERMINAL 87
USE 15 LBS-FT
TORQUE
