INVERTER MODIFICATION
1
2
3
4

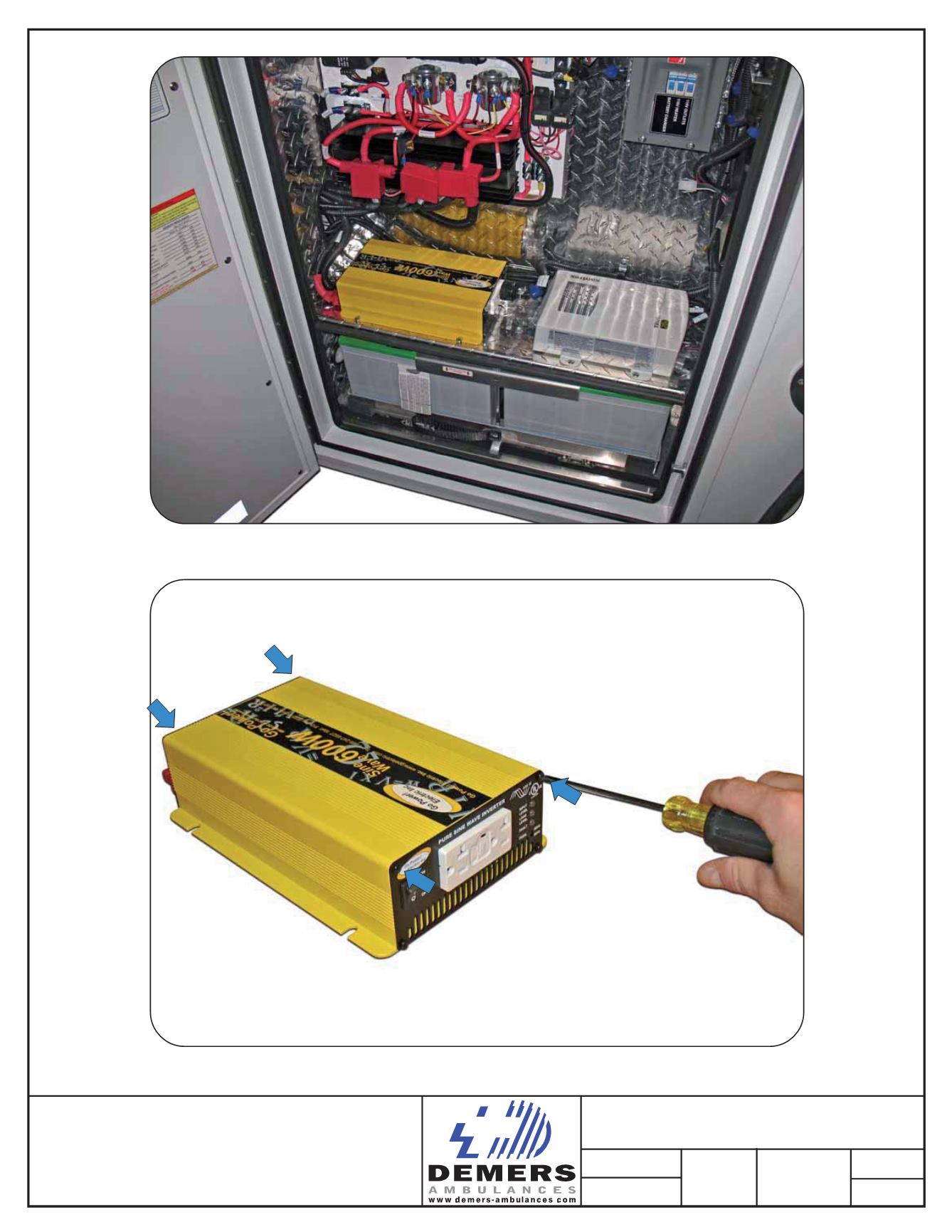

DISCONNECT BOTH SECONDARY BATTERIES
LOCATE AND DISCONNECT MAIN POWER ( THE RED AND BLACK WIRES )TO THE INVERTER, REMOVE THE INVERTER.
UNSCREW THE FOUR (4) SCREWS AS SHOWN ON PICTURE TO REMOVE THE INVERTER COVER.
