A1 A2 A3 A4 A5
A7 A8
D1 D2 D3 D4 D5 D6 D7 D8
B3 B2 B1
B4 B5 B6 B7
B9 B10 B11 B12
C3 C2 C1
C4 C5 C6 C7
C9 C10 C11 C12

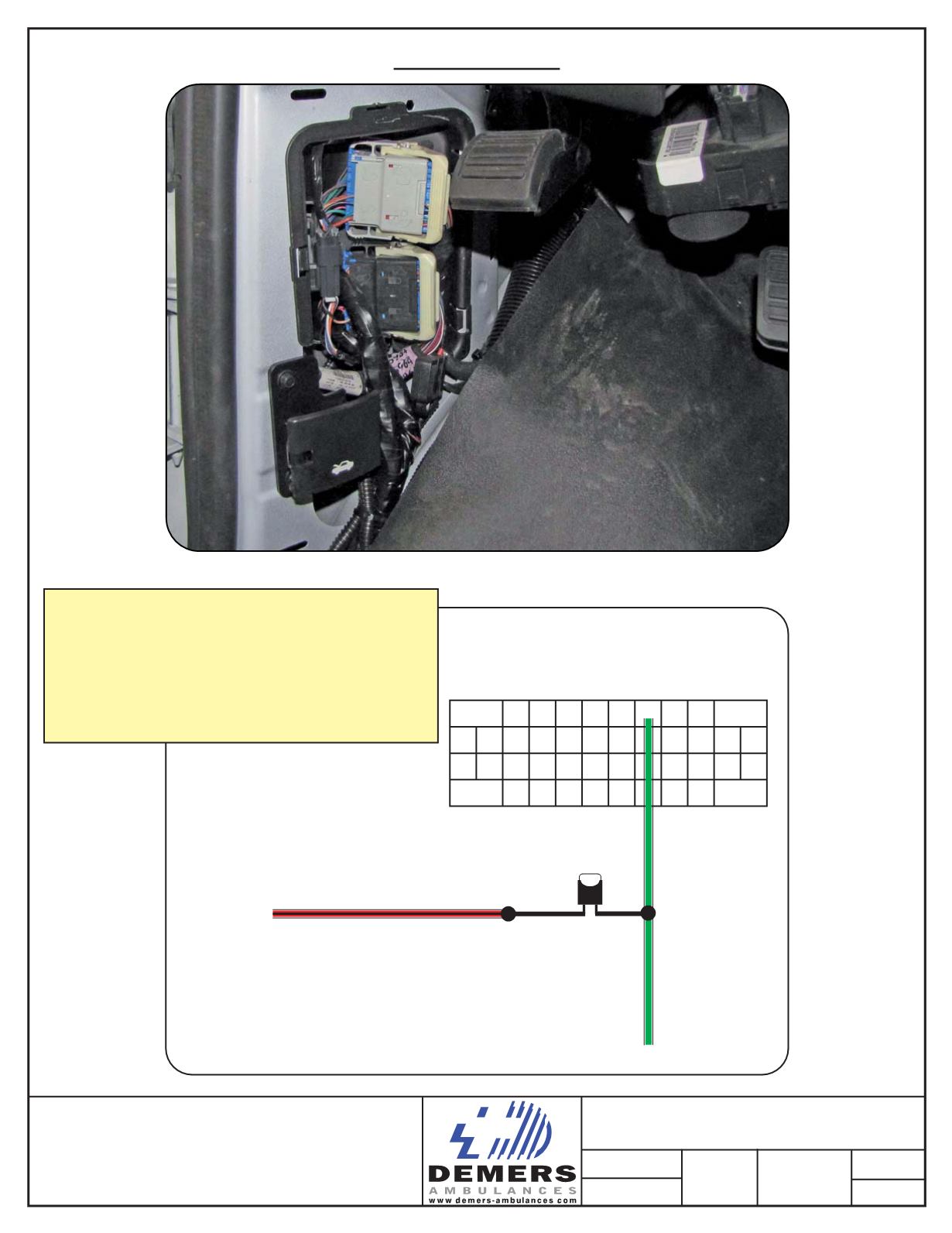

LEFT KICK PANEL
BLACK CONNECTOR
GREEN
RED/BLACK
F.ALT
BREAKER
15A
15A
SERIE 629XX
Locate and remove the circuit breaker
on the red / black wire (F.ALT)
Install new supplied circuit breaker
(E307400)
Alternator feed circuit breaker modification
2/2
