SECOND STRETCHER RELEASE
MECHANISM REPLACEMENT
15
14
17
16

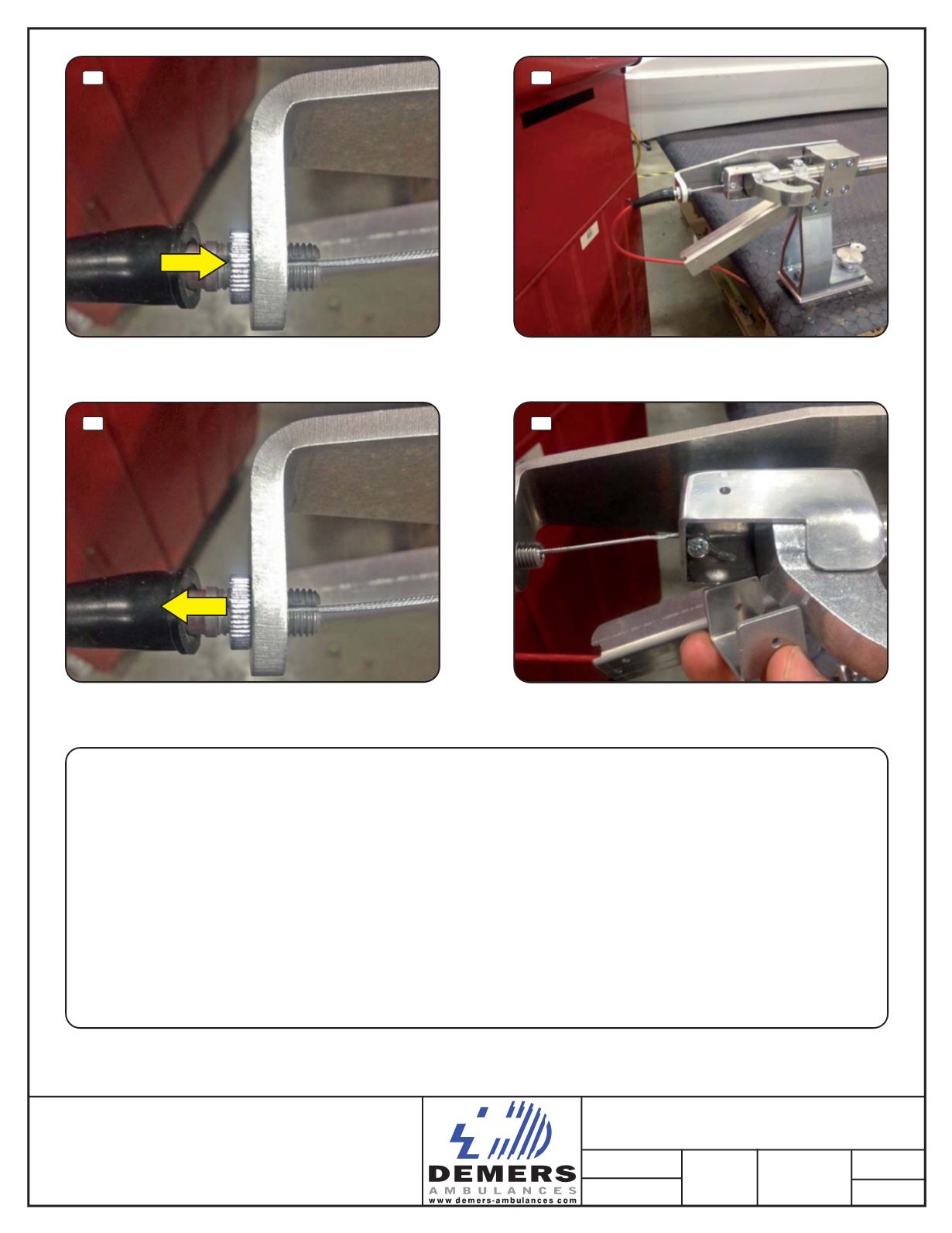

Screw in the adjustment device.
Insert the cable and the sheath as shown. Lock the
cable in place as tight as possible with the stretcher
arm in close position.
Unscrew the adjustment device to take any loose in
the cable.
Reinstall small finishing aluminium piece with rivets.
