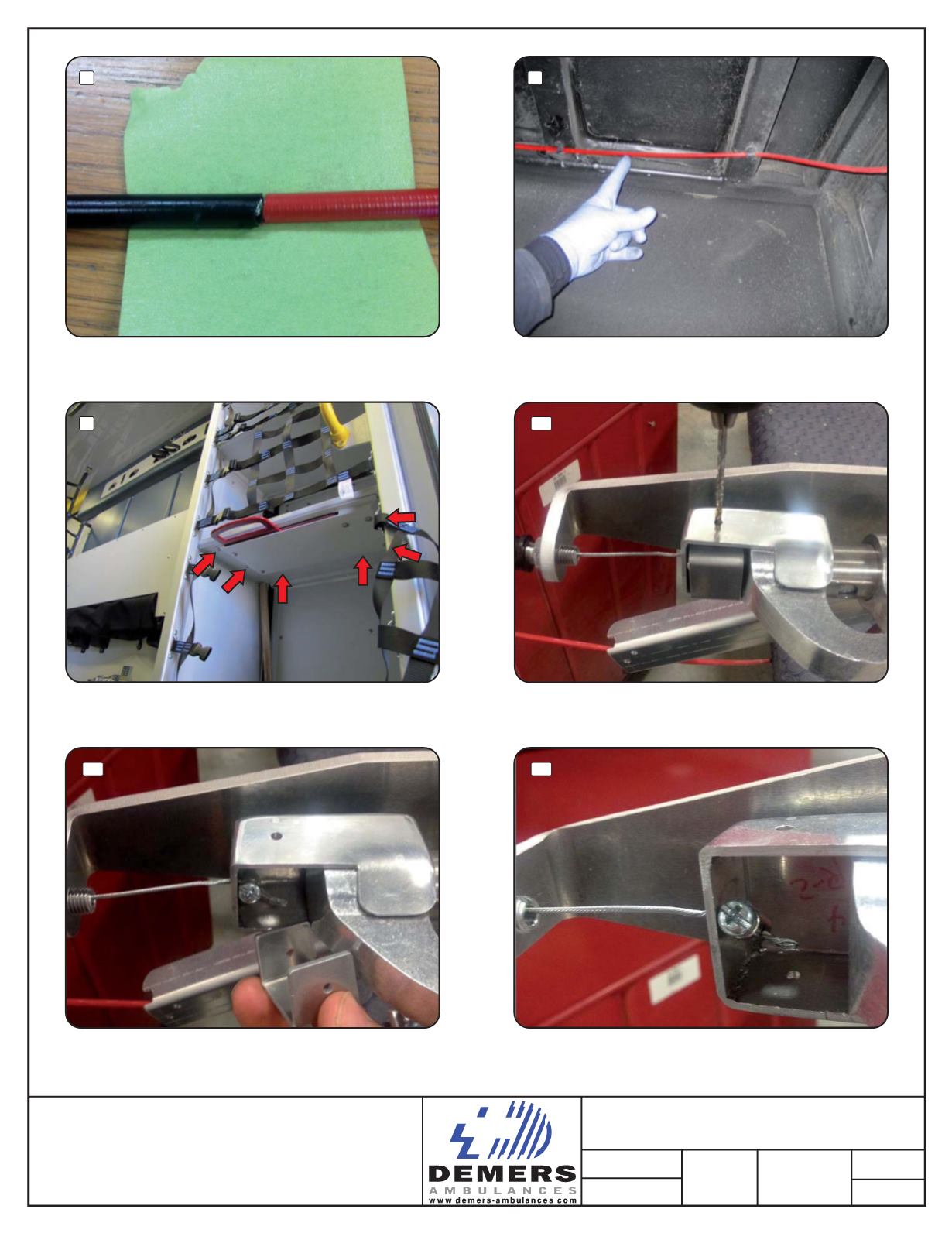

SECOND STRETCHER RELEASE
MECHANISM REPLACEMENT
7
8
9
12
11
10
Reinstall holding clips.
Reinstall the new provided release system (6 bolt).
Drill to remove the two rivets.
Remove small finishing aluminium piece.
Reuse the cable locking device by unscrewing it from cable.
Install the new sheath the same way the old sheath was installed.
To help fish it, tape two ends together (old/new) and pull gently on
old sheath.
