THE INFORMATION, TECHNICAL DATA AND STANDARDS
DESCRIBED HEREIN ARE THE EXCLUSIVE PROPERTY OF DEMERS
AMBULANCES AND/OR CONTAIN PROPRIETARY RIGHTS OF
OTHERS AND ARE NOT TO BE USED OR DISCLOSED TO OTHERS
WITHOUT THE WRITTEN AGREEMENT OF DEMERS AMBULANCES.
Y. DUBÉ
B. LANDRY
ESPAR HEATER ACTIVATION
MODIFICATION
# 00646

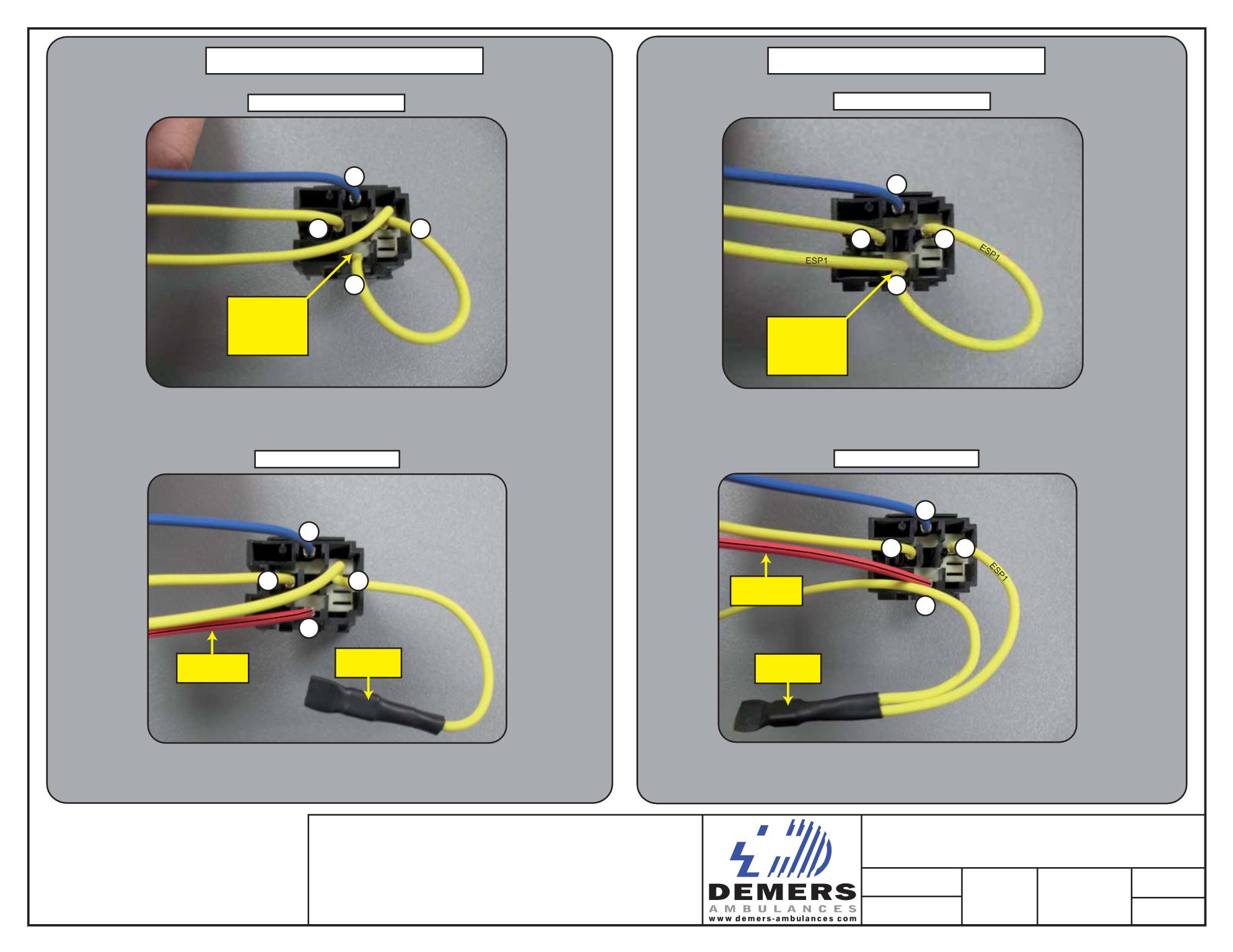

BEFORE MODIFICATION
BEFORE MODIFICATION
AFTER MODIFICATION
AFTER MODIFICATION
85
87
30
86
85
87
30
86
85
87
30
86
85
87
30
86
LOCATE AND REMOVE THE YELLOW WIRE (ESP1) IN
POSITION 86 FROM THE RELAY SUPPORT.
LOCATE AND REMOVE THE YELLOW WIRE (ESP1) IN
POSITION 86 FROM THE RELAY SUPPORT.
INSULATE
ESP1
NEW WIRE
FU6-A7
NEW WIRE
FU6-A7
INSULATE
ESP1
ESP1
ESP1
ESP1
REMOVE
(ESP1)
IN POSITION
86
REMOVE
(ESP1)
IN POSITION
86
1 - ISOLATE AND INSULATE THE YELLOW WIRE TERMINAL (ESP1) WITH HEAT SHRINK TUBING.
2 - CONNECT THE NEW RED/BLACK WIRE (FU6-A7) IN POSITION 86 OF THE RELAY SUPPORT.
1 - ISOLATE AND INSULATE THE YELLOW WIRE TERMINAL (ESP1) WITH HEAT SHRINK TUBING.
2 - CONNECT THE NEW RED/BLACK WIRE (FU6-A7) IN POSITION 86 OF THE RELAY SUPPORT.
CONFIGURATION "A"
CONFIGURATION "B"
29/04/2010
5/6
