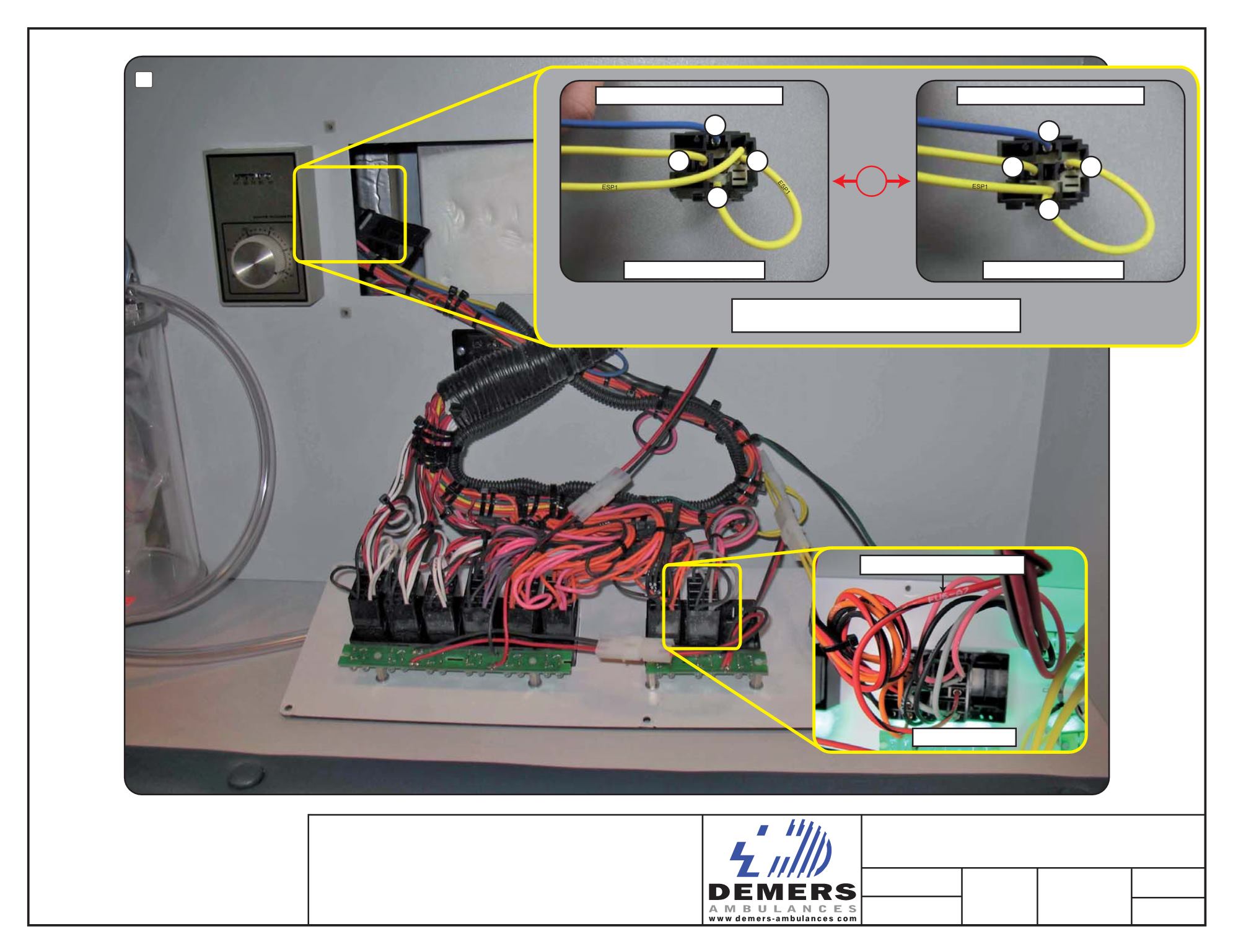

ESPAR HEATER ACTIVATION
MODIFICATION
# 00646
5
85
87
30
86
85
87
30
86
FU6-A7 RED/BLACK WIRE
RELAY AND SUPPORT
CONFIGURATION "A"
CONFIGURATION "B"
RELAY AND SUPPORT
SPARE SWITCH
OR
POSSIBLE ASSEMBLY CONFIGURATION
"A" OR "B"
ESP1
