ESPAR HEATER ACTIVATION
MODIFICATION
6
7
NEW WIRE FU6-A7
INSULATE THE SOLDERING WITH ELECTRICAL TAPE
FU6-A7
FU6-A7
1 - SOLDERED THE NEW RED/BLACK (FU6-A7)
WITH THE RED/BLACK (FU6-A7) FROM
SPARE SWITCH .
2 - INSULATE THE JUNCTION WITH ELECTRICAL
TAPE.

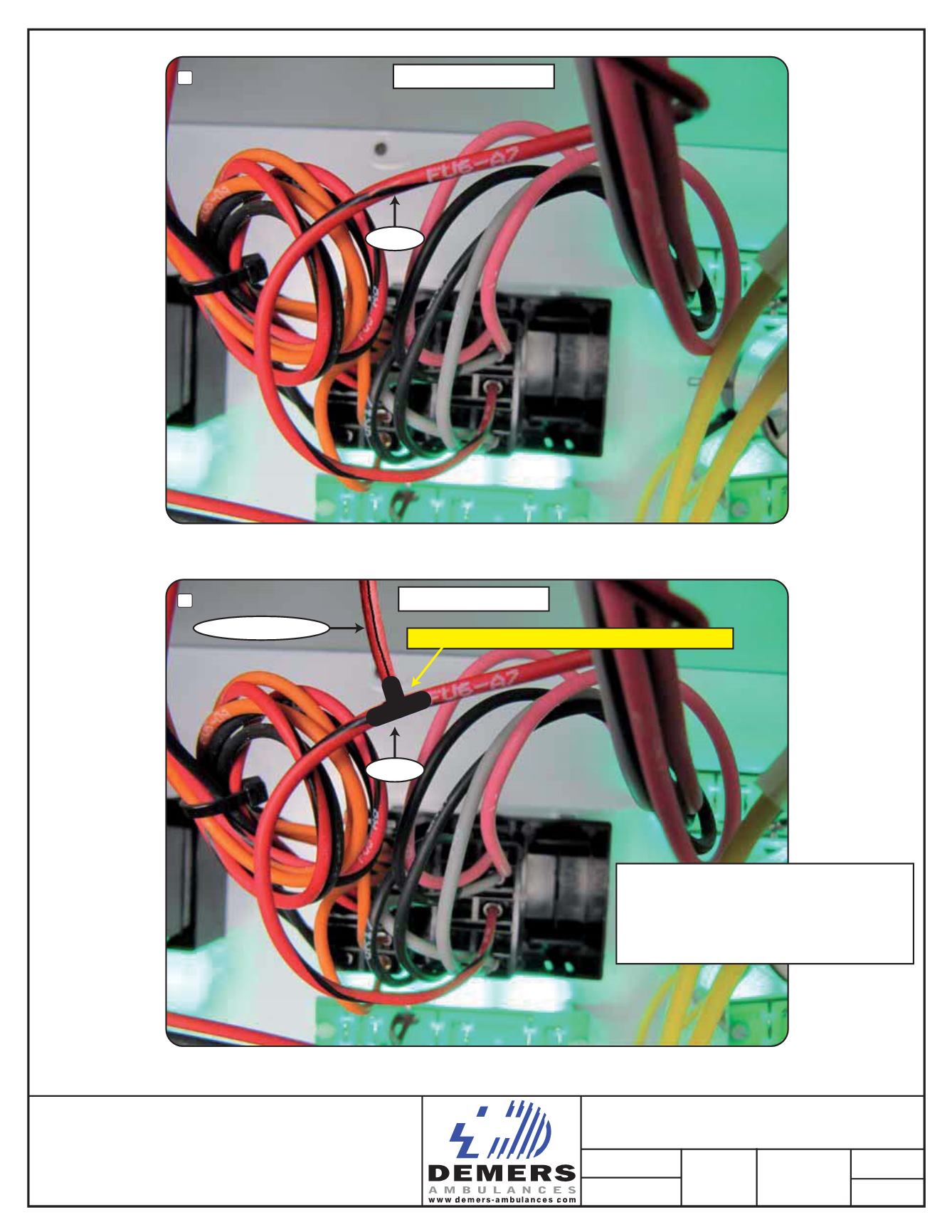

BEFORE MODIFICATION
AFTER MODIFICATION
LOCATE THE RED-BLACK WIRE (FU6-A7) FROM THE SPARE SWITCH.
29/04/2010
