7
8

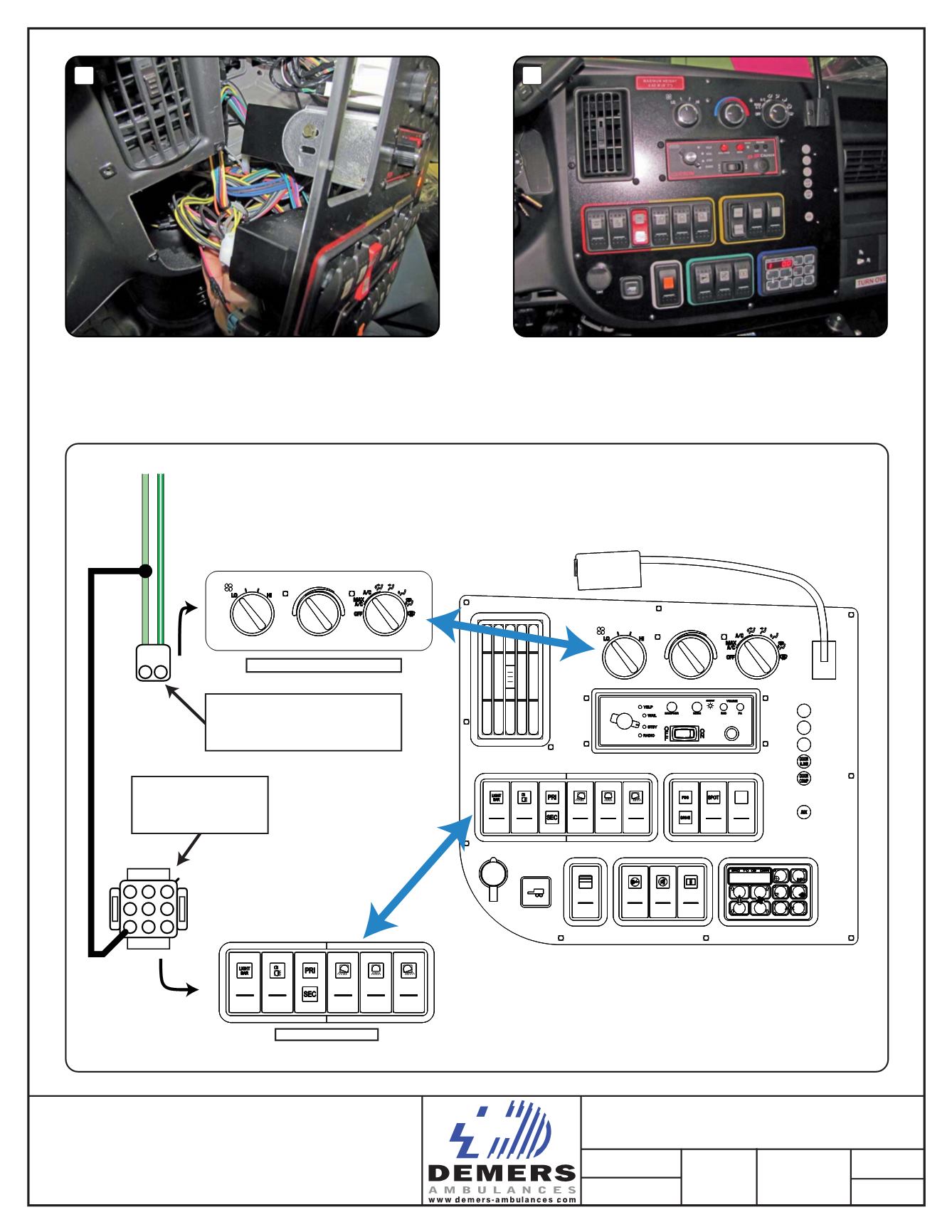

Reinstall the console panel.
Reconnect the 2 position connector with the green
wire and the light green wire.
Reconnect the 9 position connector.
Drawing # 1
2 position connector
connected behind GM climate
control module
9 position connector
connected behind
switchplex
SWITCHPLEX ECU_5
2 1
3
6
9 8
5 4
7
21
green/white
light green
H020248
GM CLIMATE CONTROL MODULE
AIR CONDITIONING MODIFICATION
MX151D 2011 SERIES 629XX
