INTERSECTION LIGHT « STEADY-BURN »
DEACTIVATION FEATURE
(UNIT 63030 TO 63092, 63100 TO 63164, 63200 TO 63264)

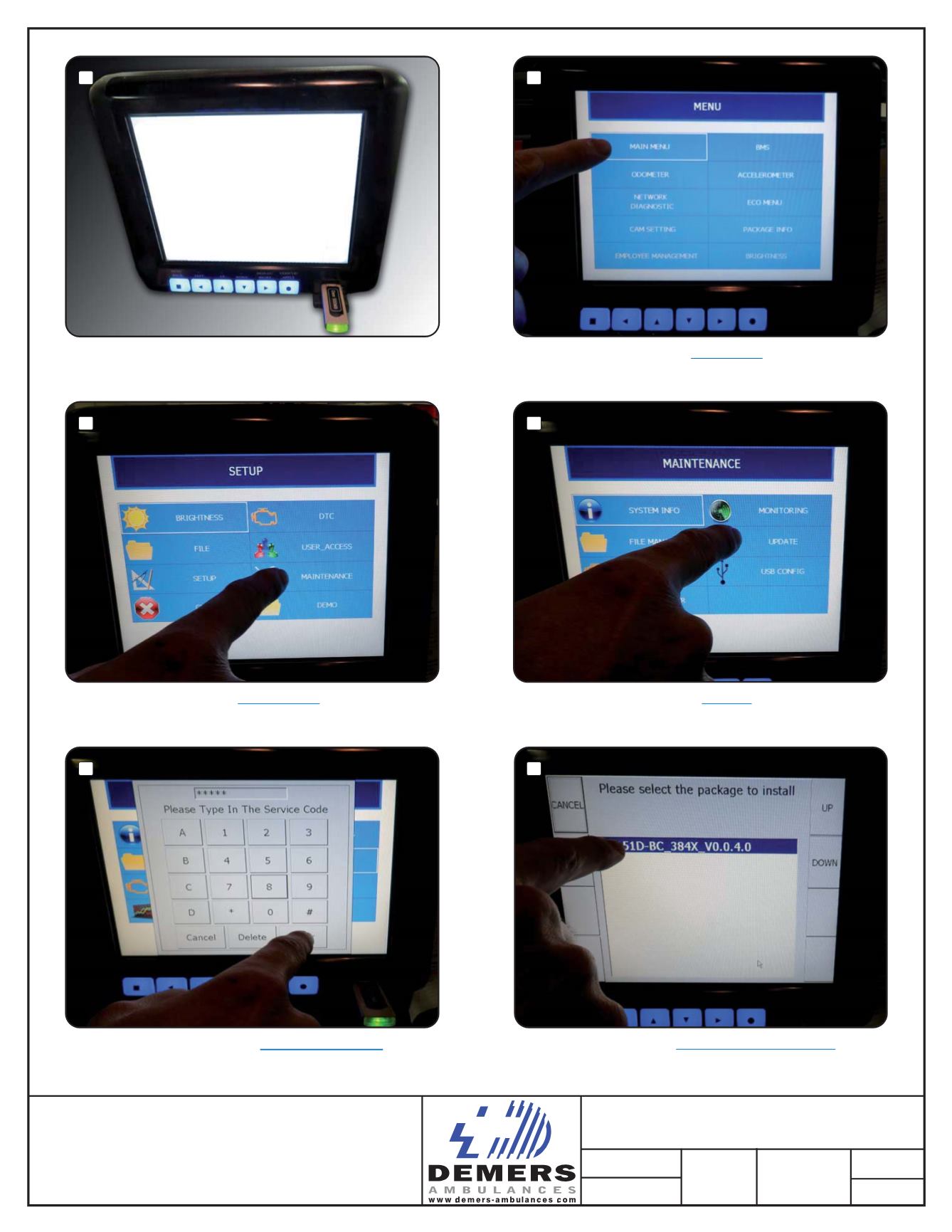

Start vehicle to turn on screen.
Insert supplied usb key.
Click on the
MAIN MENU
icon
Click on the
MAINTENACE
icon
Enter the password (
Password is 1234
)
Click on the
UPDATE
icon
Select package
MX151D-BC_384X_V0.0.4.0
1
2
4
3
6
5
