INTERSECTION LIGHT « STEADY-BURN »
DEACTIVATION FEATURE
(UNIT 63030 TO 63092, 63100 TO 63164, 63200 TO 63264)

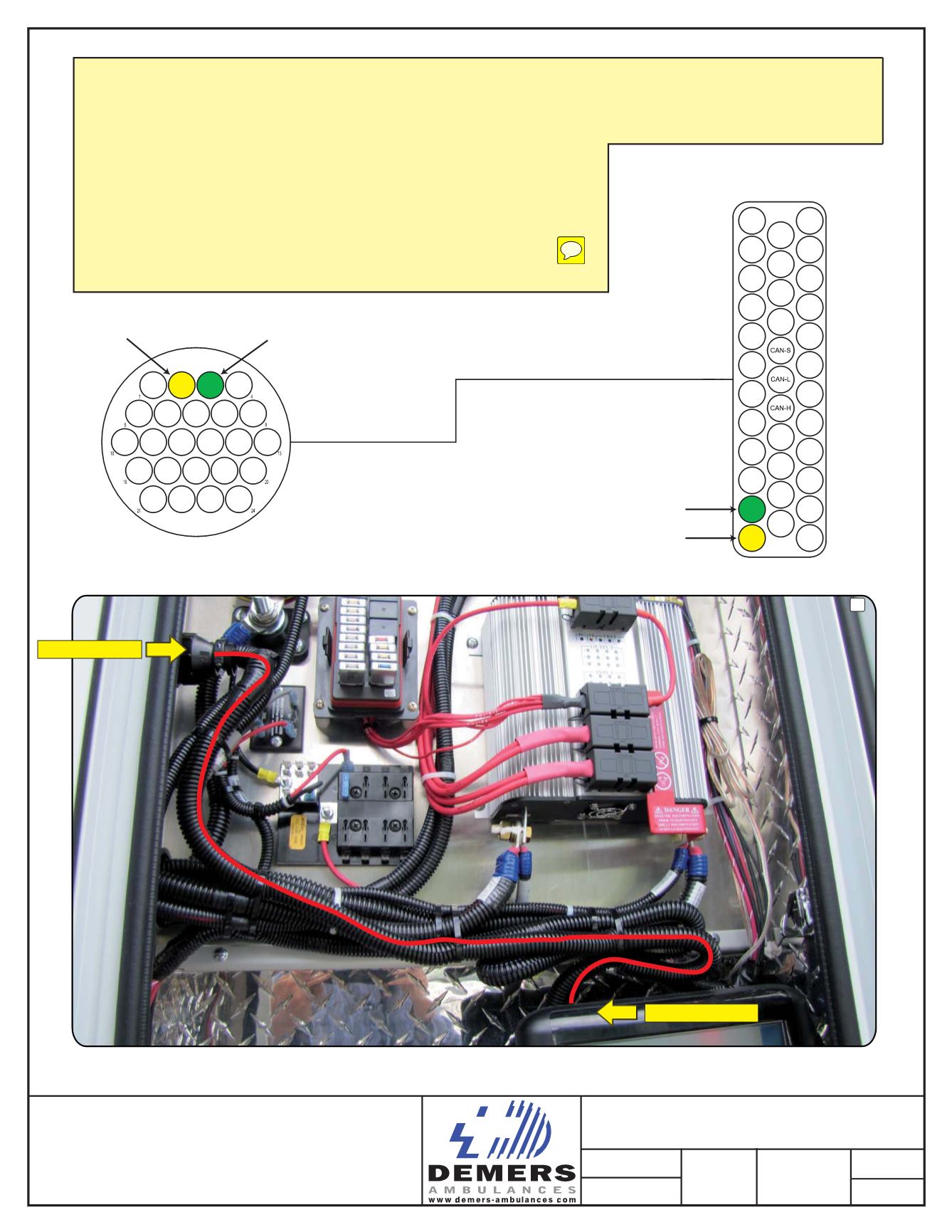

5 - Use supplied wires (H030690) to run from round datalogger plug to touch screen connector.
(Terminals are different, route them as follows on picture #2)
6 - For the round datalogger plug (Diagram 3.0)
- Connect yellow wire to pin 2
- Connect green wire to pin 3
- For the touch screen connector (Diagram 3.0)
- Connect yellow wire to pin 1 (if there is a wire already, remove it)
- Connect green wire to pin 2
Diagram 3.0
2
Secure the new harness with tie wrap.
YELLOW
GREEN
ROUND DATALOGGER CONNECTOR
TOUCH SCREEN CONNECTOR
YELLOW
GREEN
