System Test:
Using a GFI protected circuit; plug a shoreline power cord into the lower 110V shore power receptacle on
the outside of the ambulance.
Plug an 110V tester into both patient compartment
white
110 volt outlets and confirm power is present.
Note:
The second white 110 volt outlet is located in the equipment kit tree.
Power should not be present at the orange inverter outlet at this time.
Start the engine and turn the connect switch on. Unplug the shoreline power from the outside of the
ambulance.
Confirm power is still present at both the
white
and
orange
110V outlets inside the patient compartment.
NOTE:
The orange outlet is inverter power only and will only have power when the vehicle is running and
the connect switch is on.

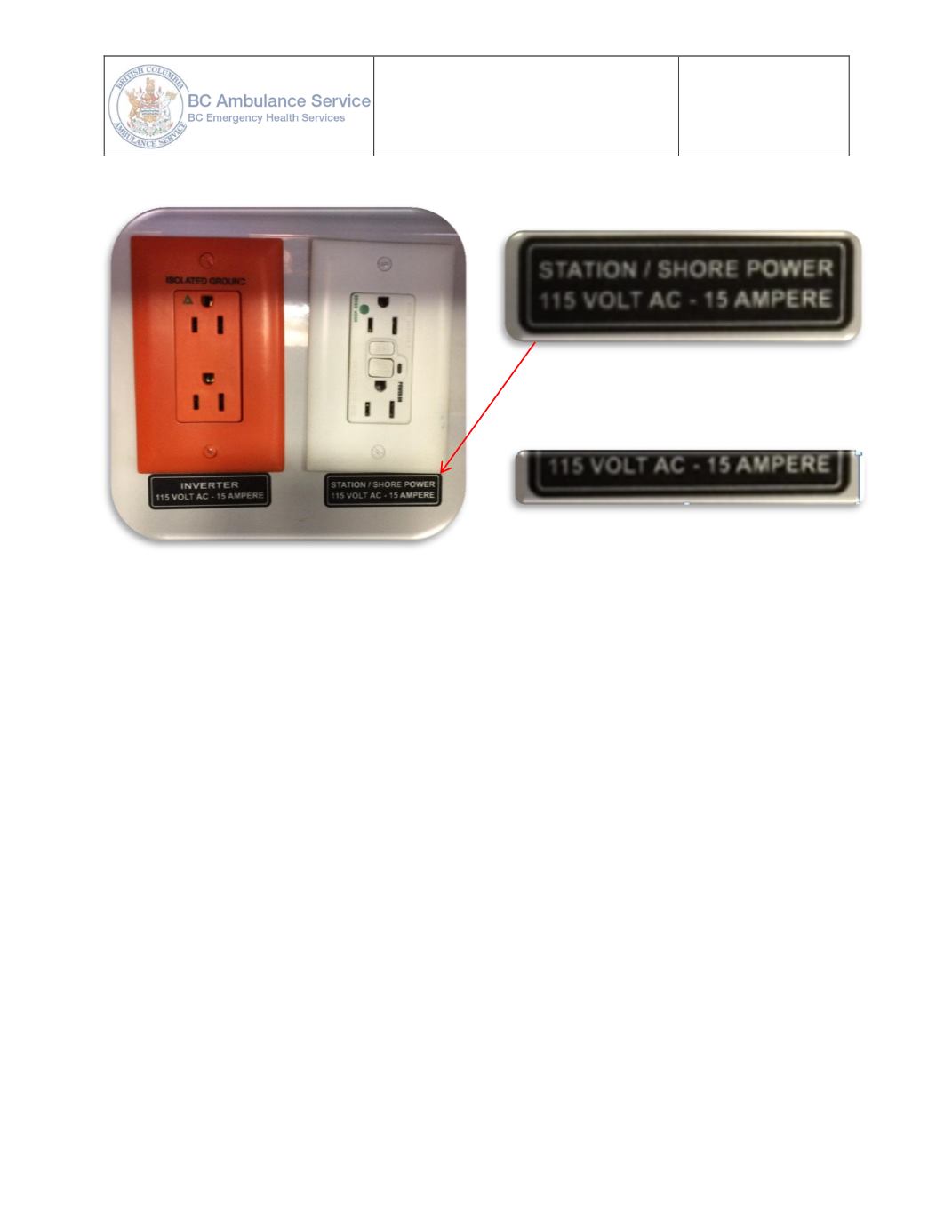

Use a razor blade to trim and peel the decal below the
white
outlet to say “115 VOLT AC -15 AMPERE”
Labour Code: GMOTS – use this labour code on the invoice and charge 1.5 hrs
