110 VOLT TRANSFER
SWITCH INSTALATION
November 6, 2017
Page
2
of
7
BC Ambulance Service, Fleet Operations
1 877 652-7465
Block C, 2261 Keating X Road
Fax: 250 952-0275
FROM UPPER SHORE LINE PLUG
TO PATIENT COMPARTMENT
FRONT 110v RECEPTACAL
TO BATTERY CHARGER
TO RIGHT REAR
COMPARTMENT
110v RECEPTACAL
H
E
A
T
E
R
FROM LOWER SHORE LINE PLUG
C
H
A
R
G
E
R
H
E
A
T
E
R
O
U
T
L
E
T
S

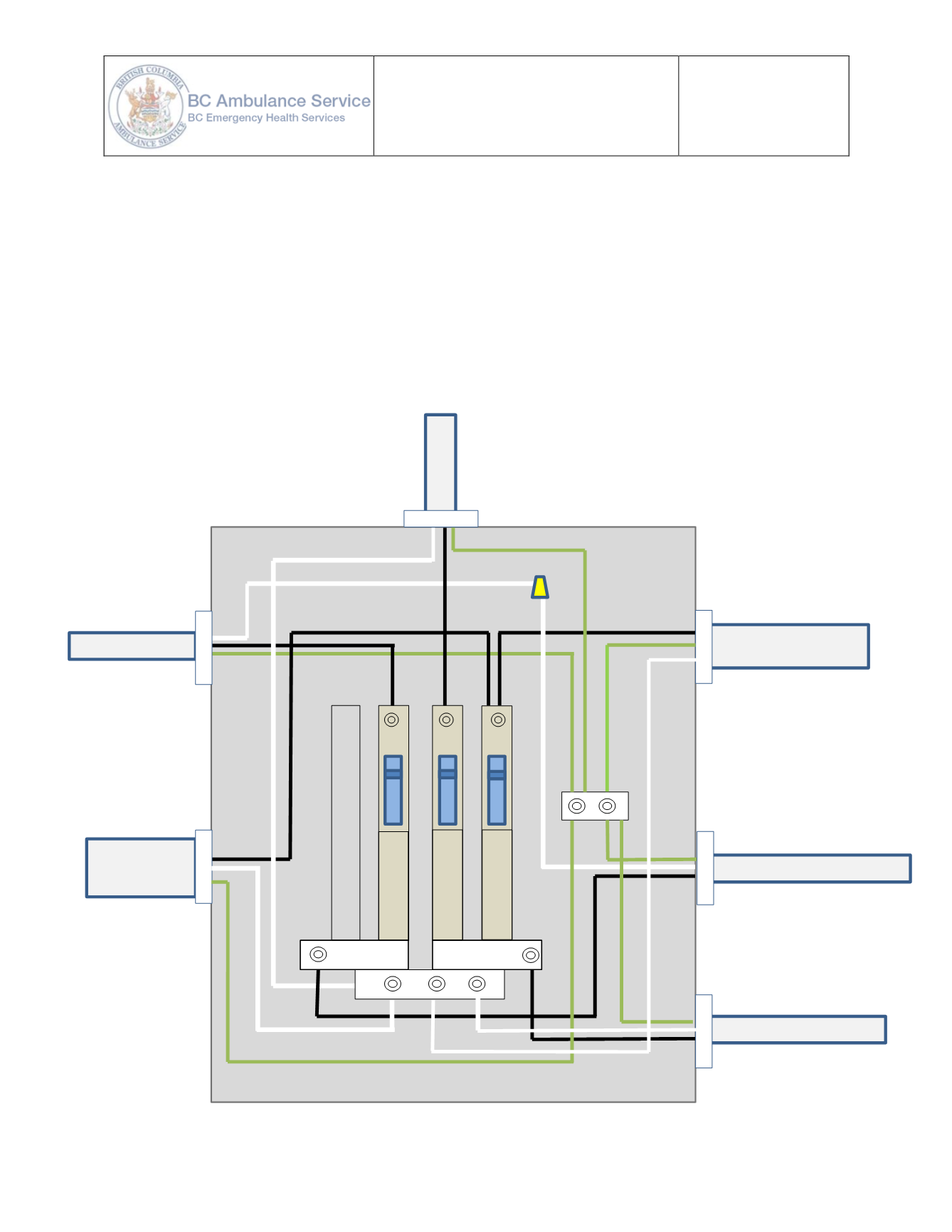

LOCATE THE 110 VOLT BREAKER BOX IN THE ELECTRICAL COMPARTMENT
STEP 1:
Remove the cover from the 110V breaker box and compare the wiring with the diagram below.
IMPORTANT!
Confirm the existing wiring is the same as diagramed before continuing.
