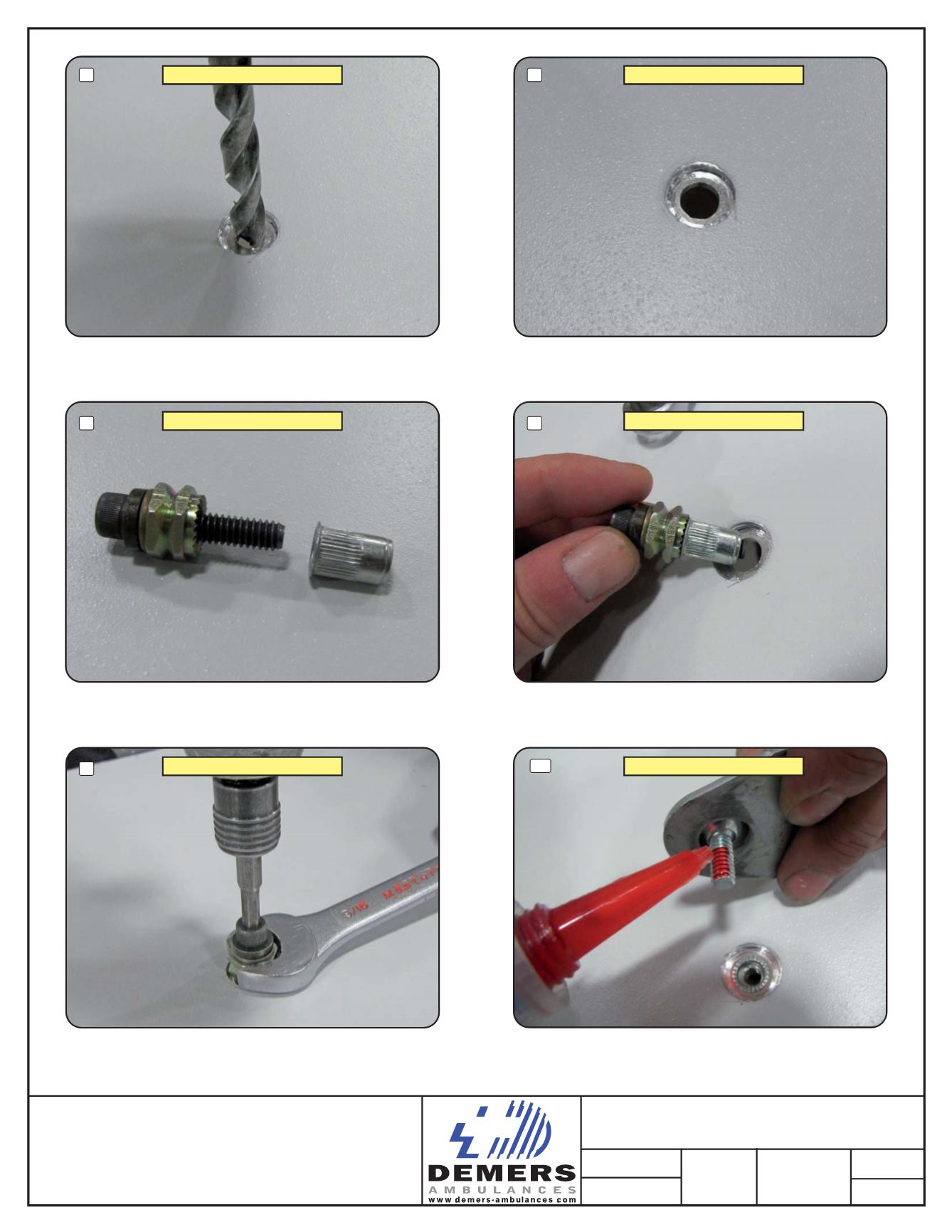

Enlarge the hole using a 25/64" bit into the
inner panel.
Use the appropriate tool to install the supplied
rivet nuts (E003227).
Torque the rivet nut with the appropriate tools.
Insert the rivet nut in the reinforcement hole.
Apply loctite to supplied bolt
(E008054
MACHINE SCREW 1/4"-20 X 1"
)
View of the enlarged hole into the inner panel.
Close up view of the strap hole
Close up view of the strap hole
Close up view of the strap hole
Close up view of the strap hole
Close up view of the strap hole
Close up view of the strap hole
STAIR CHAIR BELT MODIFICATION
