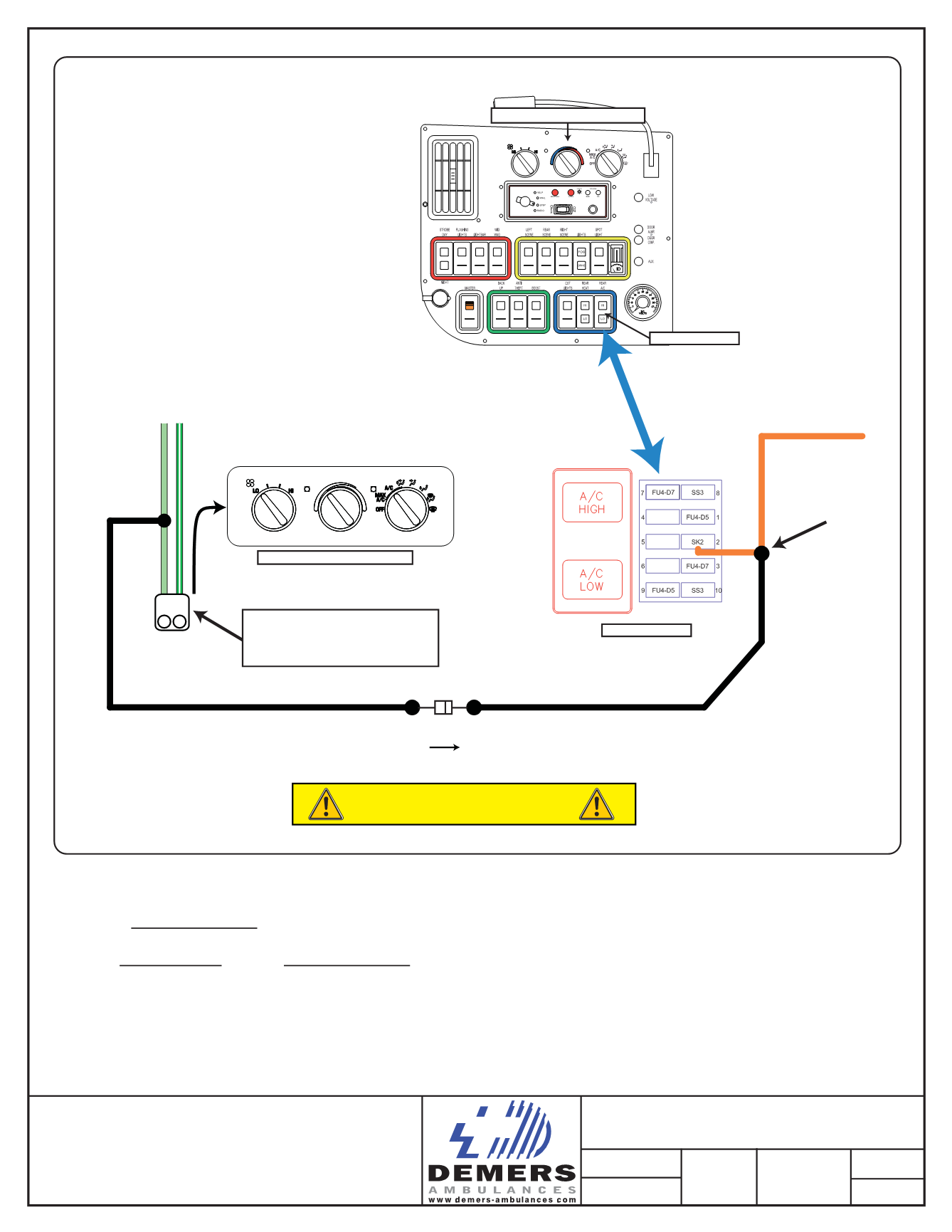

Drawing # 2
DIODE ORIENTATION IS IMPORTANT
Locate the
orange wire "SK2"
behind the rear a/c switch.
Weld the
new black wire
with the
orange wire "SK2"
Insulate the soldering with electrical tape (see drawing # 2).
REAR A/C SWITCH
REAR A/C SWITCH
GM CLIMATE CONTROL MODULE
2 position connector
connected behind GM climate
control module
green/white
orange SK2
diode 3 Amp
light green
H020247
H020247
GM CLIMATE CONTROL MODULE
Insulate
AIR CONDITIONING MODIFICATION
MX151D 2009 SERIES 628XX
