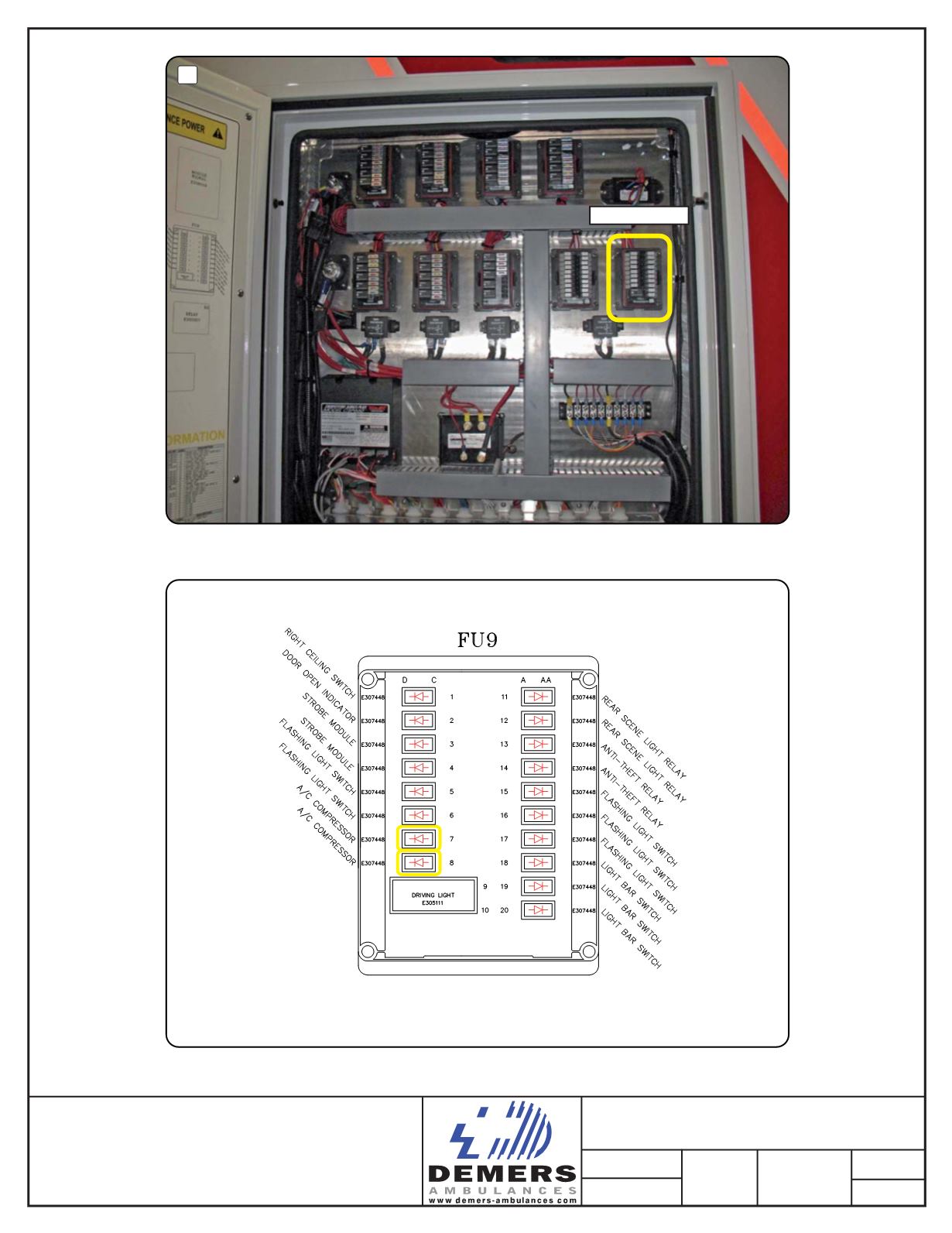

FU9 FUSE BOX
Drawing # 1
Locate and remove the diode in position 7 of the FU9 fuse box.
Locate and remove the diode in position 8 of the FU9 fuse box.
Locate the fuse box FU9 in electrical panel.
AIR CONDITIONING MODIFICATION
MX151D 2009 SERIES 628XX
