3 / 3
Crestline Duel Stretcher - Units with Stainless Scuff Plate
62900 to 62910
62990 to 62999
Procedure:
Re-locate seat belt buckle with angle bracket 4 1/2” higher than original mounting position as
shown. Be sure to position angle bracket against edge of stainless scuff plate before marking hole
position. Drill 25/64
th
hole in door panel and install rivnut.
NOTE: BE SURE TO USE DEPTH STOP ON DRILL TO PREVENT DAMAGE TO
WIRING INSIDE OF DOOR.
Drill a 9/64
th
hole at location 2 and install supplied #10 screw.
Apply lock tight to original bolt, using lock washer as well, re-attach the L-bracket to the new
mounting location on the door.
Be sure the bend in the L bracket is closest to the door hinge side. (See picture)
Install supplied pan head bolt into original mounting hole.
Re-install stair chair with wheels facing outwards on Crestline manufactured vehicles.
The labour time allowed for this modification is
.6 hrs
. Identify as
GMOCCBR
on invoice.

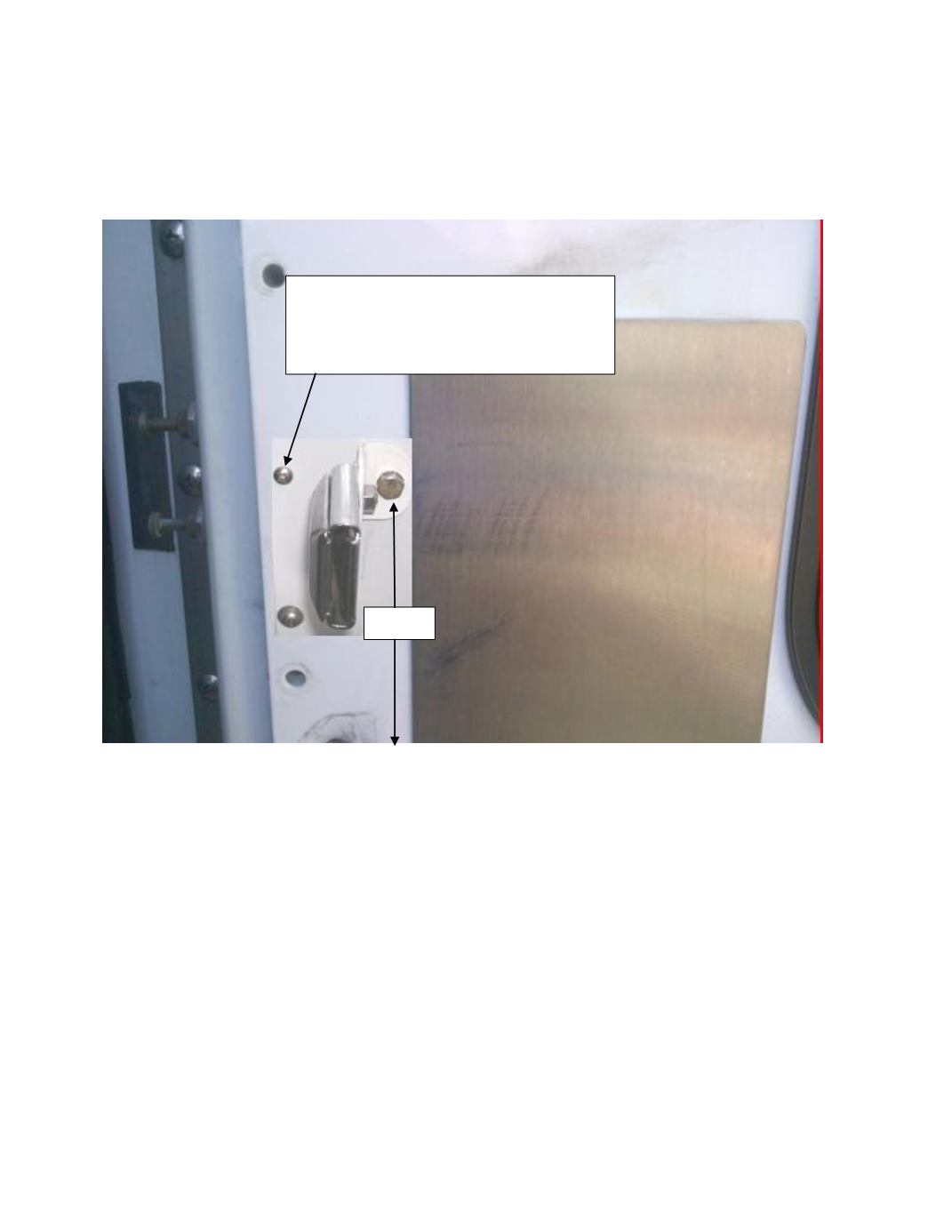

4 1/2”
Location 2
Drill 9/64
th
” hole for #10 screw.
Be sure to align hole between switches
at right side of door.
