Procedure:
Remove the female buckle end of the restraint belt and L-bracket from inside left of patient door.
Mark and Drill a 25/64
th
hole 4 1/2” higher than original location and 3” in from outside door edge
and install the supplied rivet nut (see picture)
Drill a 9/64
th
hole at location 2 and install supplied #10 screw.
Apply lock tight to original bolt, using lock washer as well, re-attach the L-bracket to the new
mounting location on the door.
Be sure the bend in the L bracket is closest to the door hinge side. (See picture)
Install supplied pan head bolt into original mounting hole.
Re-install stair chair with wheels facing outwards on Crestline manufactured vehicles.
Finished Modification
The labour time allowed for this modification is
.6 hrs
.
Please identify this repair as
GMOCCBR
on your invoice.
GMOSCBR—Stair Chair Belt Re-location

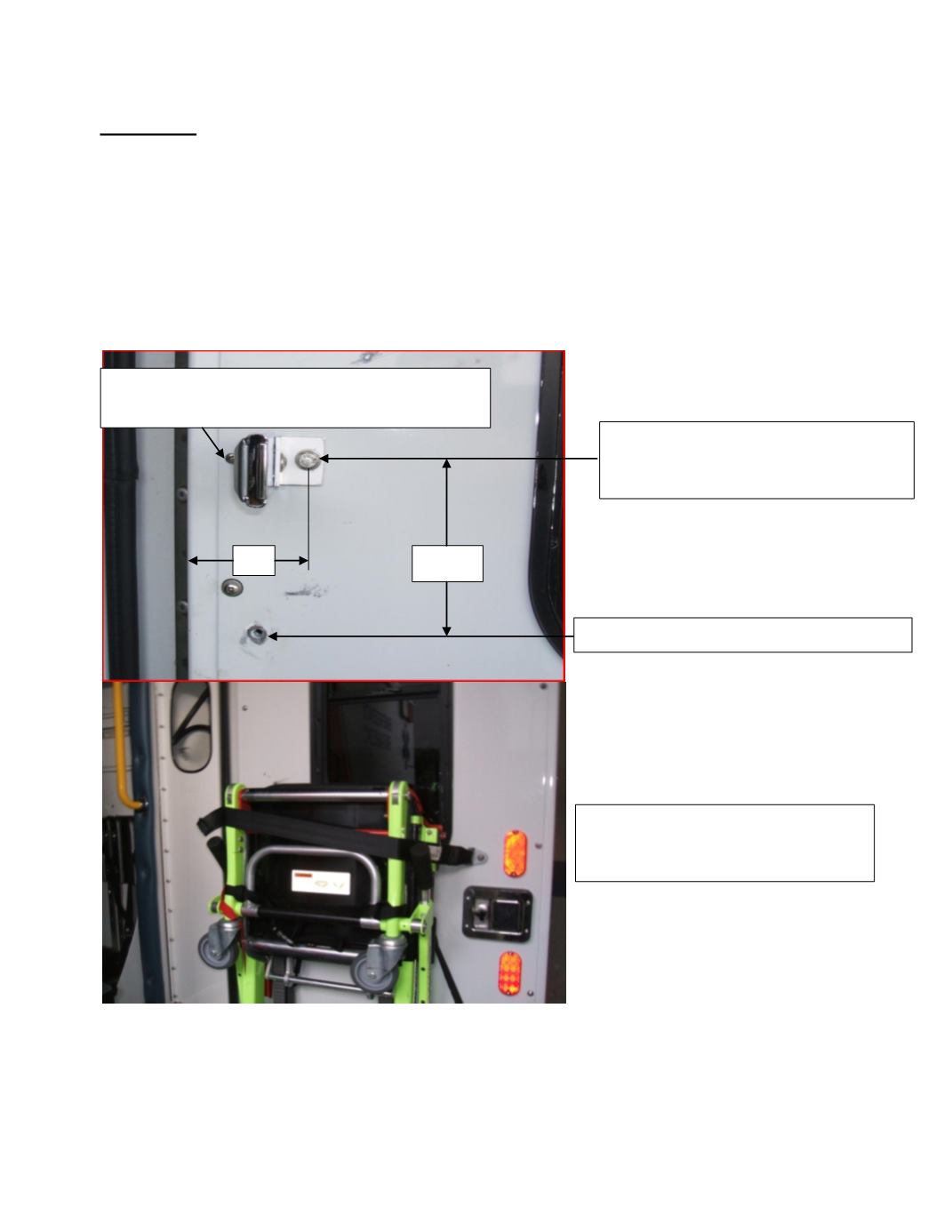

Original Mounting Rivet Nut Location
Drill a 9/64” hole for # 10 Sheet Medal Screw
Location 2
Drill a 25/64
”
hole 4 1/2” higher &
3” in from door edge, and install the
rivet nut
3”
4 1/2”
Re-install stair chair with wheels
facing outwards on Crestline
manufactured vehicles only.
