DRIVER SIDE.

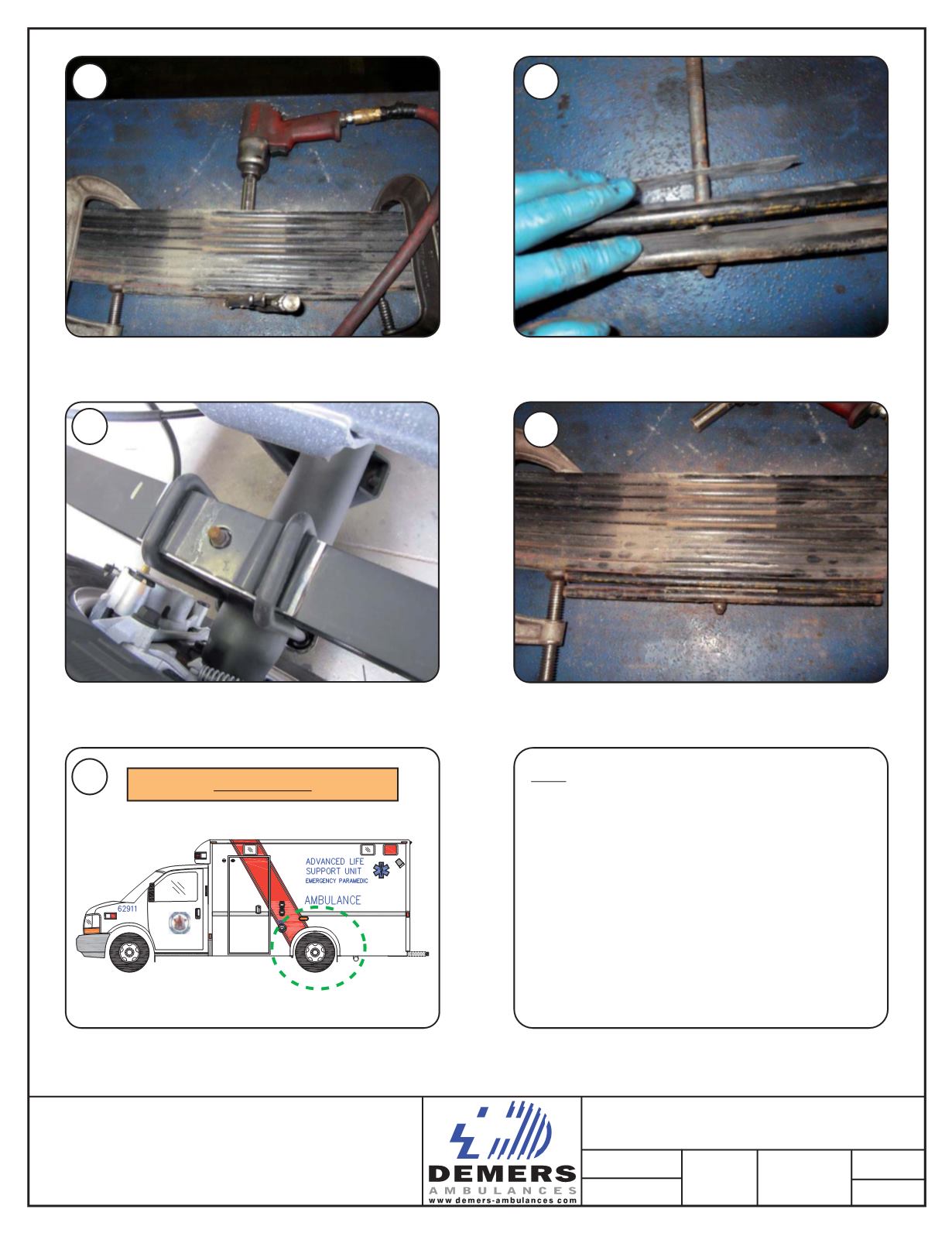

Remove spring center bolt (through bolt) with clamps installed
(note: may require vice grips on bottom to hold through bolt
while removing upper 15mm nut on through bolt).
Reinstall spring pack in vehicle with new u-bolts,top
plate and nuts as per workshop manual.
Add new lower spring to leaf pack.
Install new center bolt into spring pack.
Tighten nut properly and cut excess of bolt
with die grinder.
Enlarge hole on top plate to allow for clearance of nut.
Enlarge to 3/4" using bit.
