FUEL FILLER HOSE VERIFICATION
# 00957
5
1 DE 1
1
2
NOT PINCHED

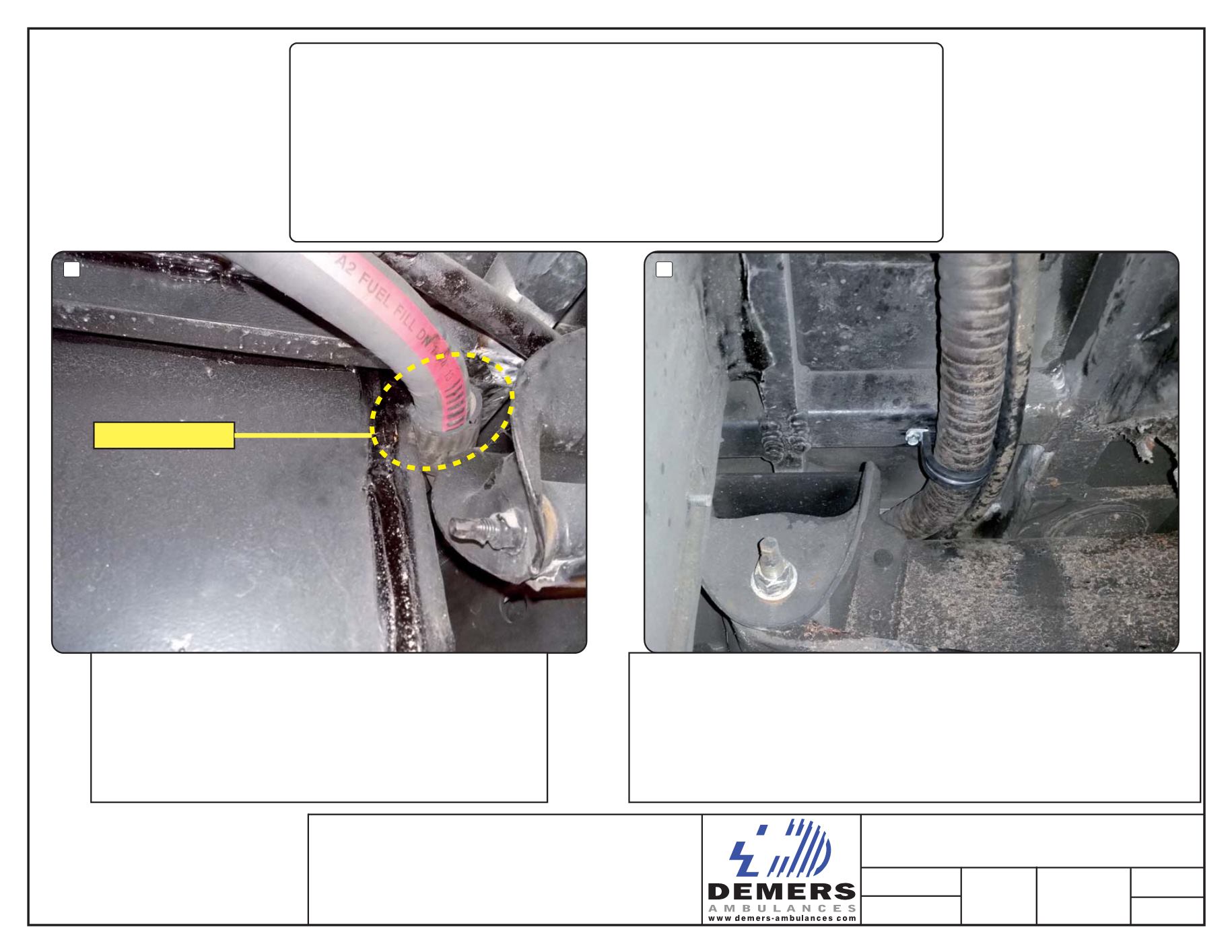

- Locate fuel filler hose
- There may be variance in how the fuel filler was routed during production.
- To correct routing, make sure the following guidelines are respected.
● Make sure filler hose is not pinched (mostly creates spitback issues)
● Make sure filler hose does not have a downward loop (creates slow fill issues)
Shorten hose at filler end if necessary, and use collars.
Filler hose can be routed around suspension holder, if there
is enough clearance with the compartment.
Verify that it is not pinched between the module beams and
the chassis frame or suspension holder.
Protective piece (E807930) can be used to prevent rubbing.
Filler hose can go around the other side of the suspension holder.
This routing is not pinched and does not loop down.The collar secures it in place.
However, it requires more hose length.
Make sure it has enough length before routing this way.
