4 / 5
TITLE :
# DRAWING :
REV :
PAGE :
DATE :
DRAW. :
THE INFORMATION, TECHNICAL DATA AND STANDARDS
DESCRIBED HEREIN ARE THE EXCLUSIVE PROPERTY OF DEMERS
AMBULANCES AND/OR CONTAIN PROPRIETARY RIGHTS OF
OTHERS AND ARE NOT TO BE USED OR DISCLOSED TO OTHERS
WITHOUT THE WRITTEN AGREEMENT OF DEMERS AMBULANCES.
# ASS :
Y. DUBÉ
B. LANDRY
# 00616
2 OF 2
0
26/01/2010

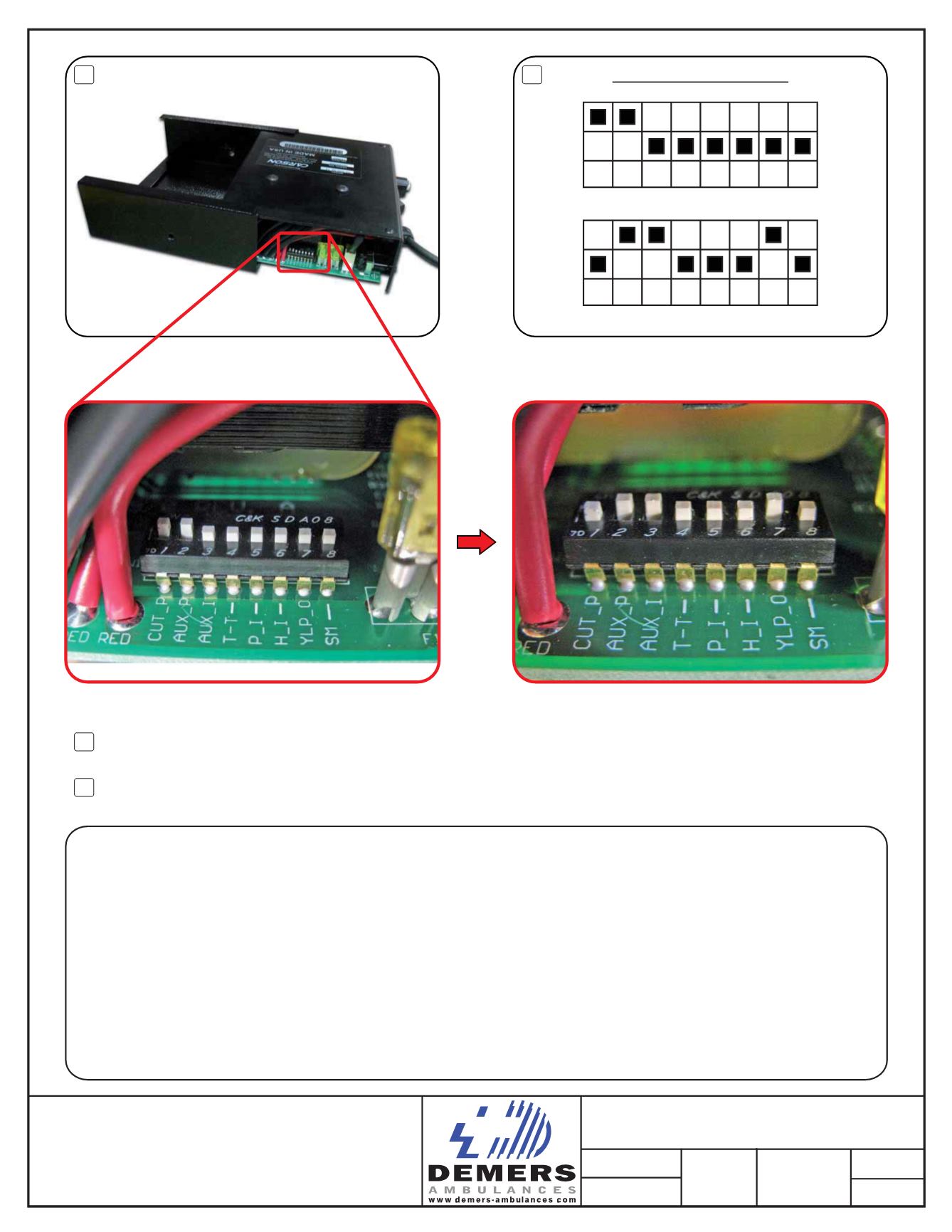

SA-500 SIREN AMPLIFIER
SWITCH MODIFICATION
6
7
8
9
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
BEFORE MODIFICATION
BEFORE MODIFICATION
AFTER MODIFICATION
AFTER MODIFICATION
OPTION DIP SWITCHES
LOCATE THE OPTION DIP SWITCHES.
NOTE :
CHANGE THE DIP SWITCHES AS INDICATED.
REINSTALL THE SIREN IN THE CONSOLE PANEL, CONNECT THE HARNESS AND INSTALL THE CONSOLE PANEL IN THE DASH.
CONFIRM THE SIREN OPERATES IN ALL MODES. ACTIVATING THE VEHICLE HORN WHILE THE SIREN IS SOUNDING SHOULD
CAUSE THE SIREN MODE TO CHANGE.
