SA-500 SIREN AMPLIFIER
SWITCH MODIFICATION
1
2
4
3
5

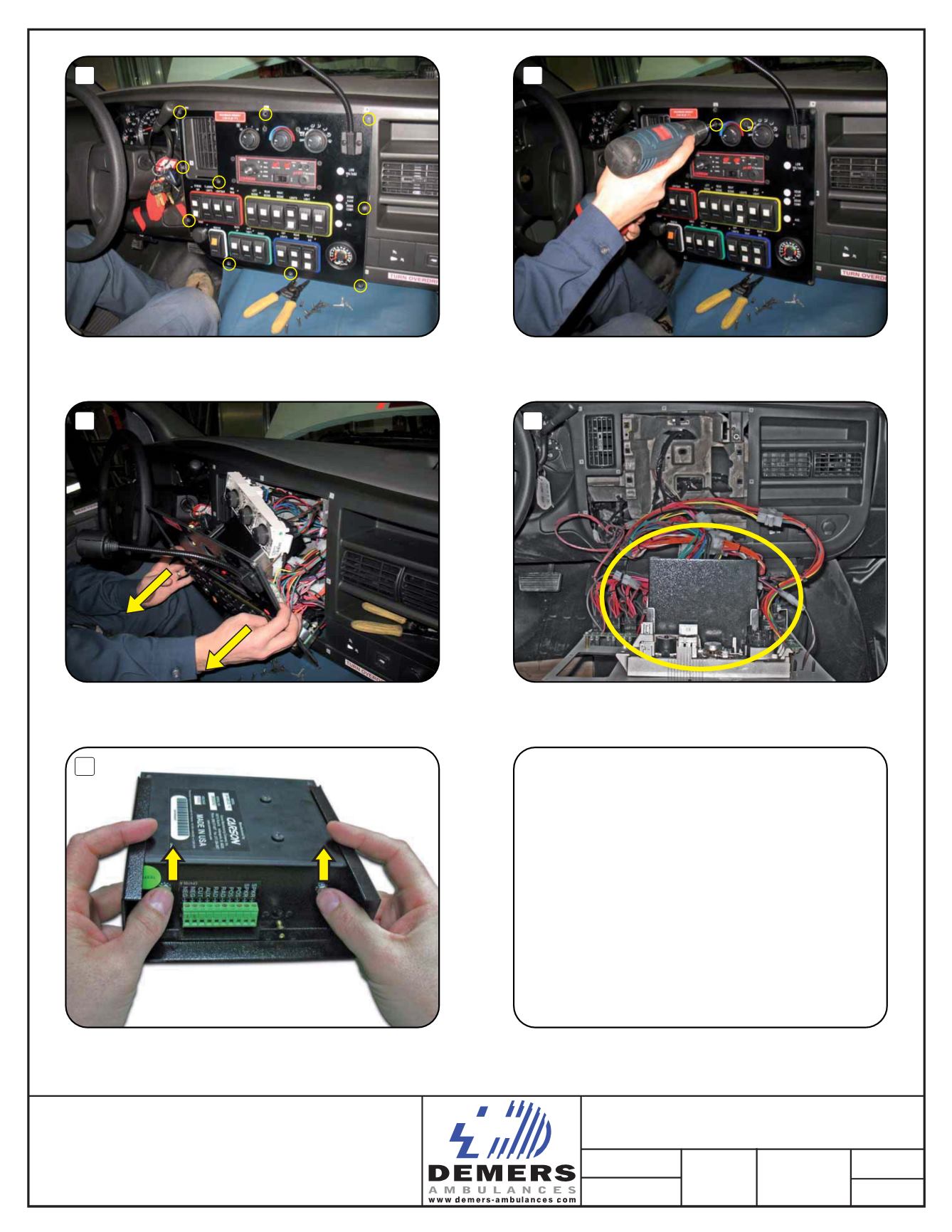

TO REMOVE THE CONSOLE PANEL, LOCATE AND UNSCREW
THE TEN (10) SCREWS AS SHOWN.
UNSCREW THE TWO (2) SCREWS AS SHOWN.
TO ACCESS THE SIREN, PULL THE CONSOLE PANEL.
DISCONNECT THE SIREN AND REMOVE IT FROM
THE CONSOLE PANEL.
NOTE :
PRESS HARD ON THE BACK OF THE UNIT.
THE CHASSIS WILL SLIDE OUT THE FRONT OF THE COVER.
