TITLE :
# DRAWING :
REV :
PAGE :
DATE :
DRAW. :
THE INFORMATION, TECHNICAL DATA AND STANDARDS
DESCRIBED HEREIN ARE THE EXCLUSIVE PROPERTY OF DEMERS
AMBULANCES AND/OR CONTAIN PROPRIETARY RIGHTS OF
OTHERS AND ARE NOT TO BE USED OR DISCLOSED TO OTHERS
WITHOUT THE WRITTEN AGREEMENT OF DEMERS AMBULANCES.
# ASS :
Y. DUBÉ
OPTION "A"
OPTION "A"
OPTION "A"
OPTION "A"
OPTION "A"
OPTION "B"
1
3
5
2
4
4
FOR UNIT NUMBERS
63300 TO 63349
63360 TO 63369
63400 TO 63457

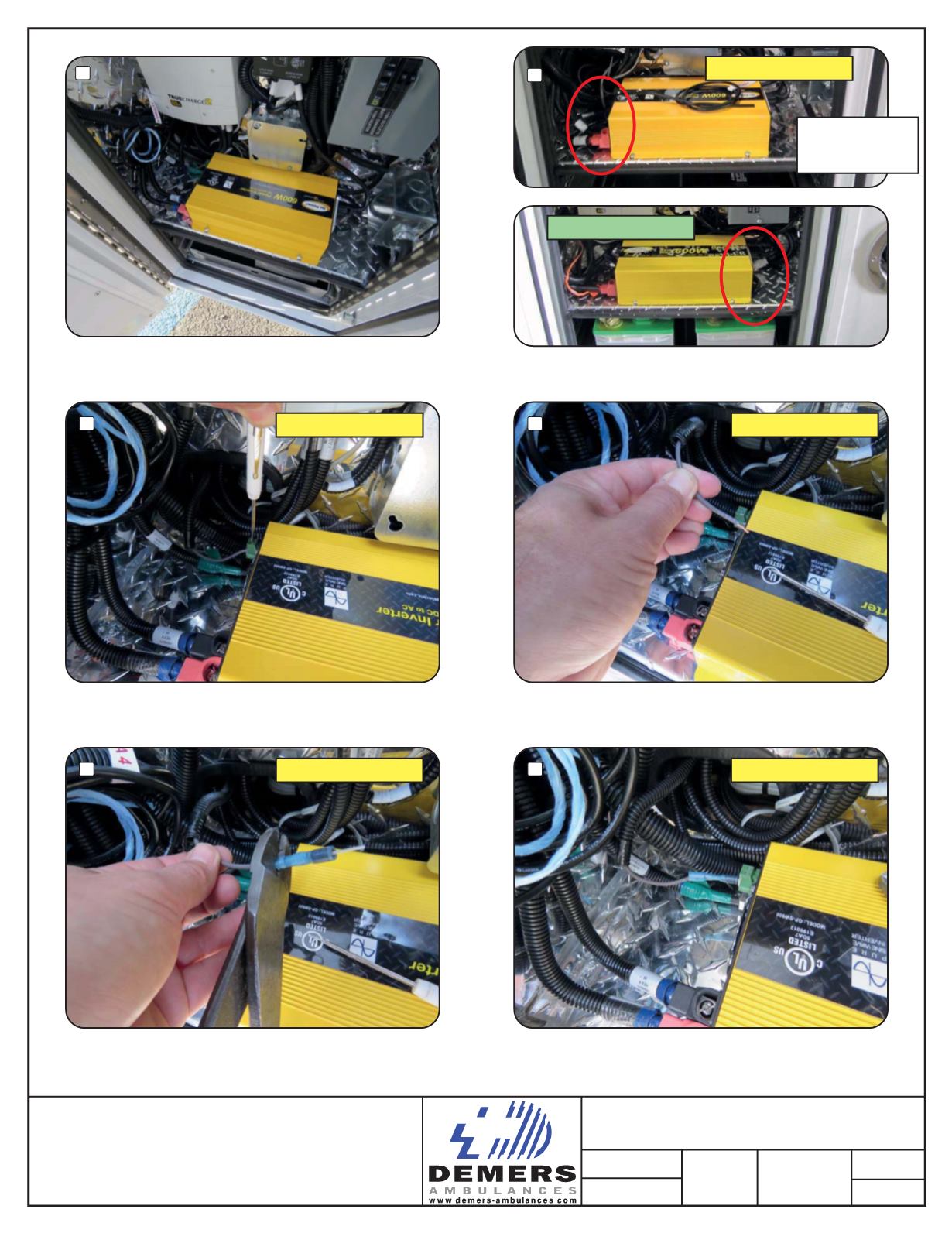

Locate the inverter.
Remove wire.
Use a screwdriver to remove wire.
Crimp and heat shrink diode assembly.
Reinstall wire in connector.
Identify where the remote signal wire is connected on
the inverter.
INVERTER IGNITION CIRCUIT CORRECTION
1/2
# 01073
2016-11-18
0
