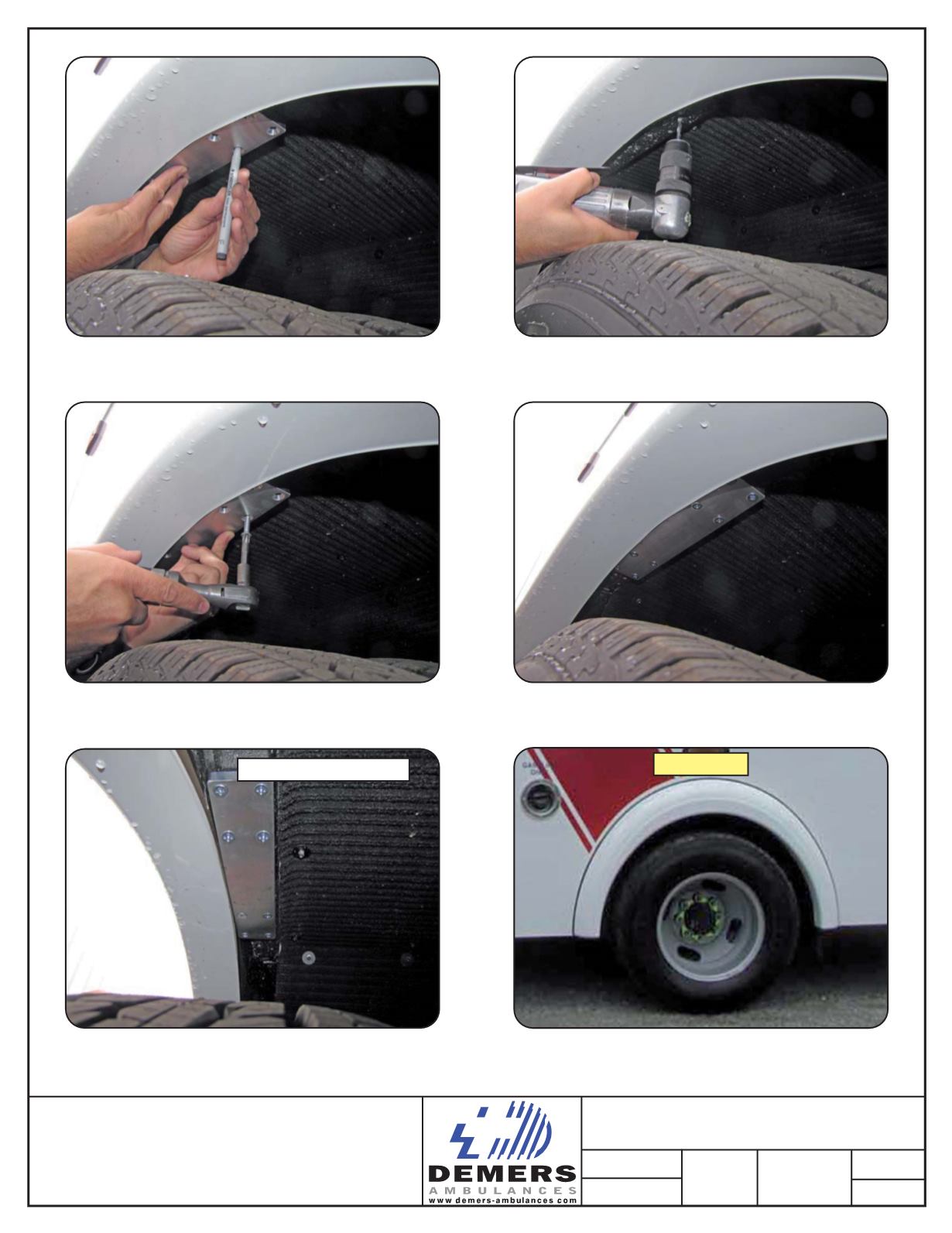

Use the spacer as a template to mark the new holes.
Install the spacer with the screws provided.
View of the spacer, as installed
View of the installed spacer
Apply undercoating on the spacer.
Drill 3/16" all previously marked locations.
Viewed from underside
Apply the same method for the other side.
LEFT SIDE
WHEEL HOUSING SPACER INSTALLATION
