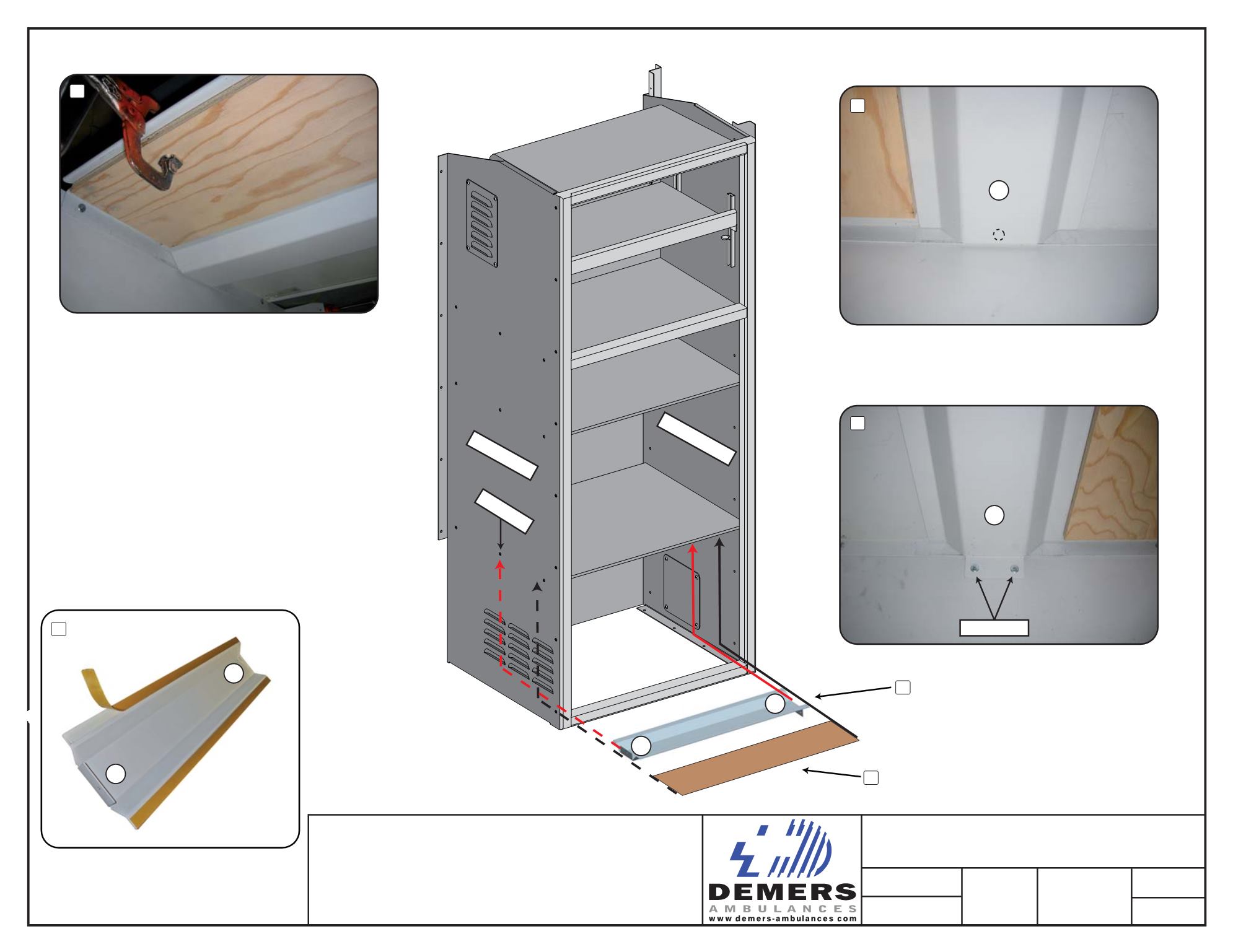

SHELF REINFORCEMENT MODIFICATION
# 00656
0
1 DE 2
2
6
3
4
4
2
A016105
LEFT SIDE
RIGHT SIDE
- INSTALL THE PLYWOOD TEMPLATE
- INSTALL REINFORCEMENT BAR # A016105
1 - REMOVE THE SCREW FROM THE LEFT SIDE.
2 - INSTALL THE PLYWOOD TEMPLATE UNDERNEATH THE
BOTTOM SHELF BY PULLING IT FORWARD YOU AND
RESTING AGAINST EDGE ( PICTURE 2 ).
3 - REMOVE THE TAPE PROTECTOR ( PICTURE 3 ).
4 - WHEN INSTALLING THE REINFORCEMENT BAR,
MAKE SURE THE HOLE IS WELL ALIGNED ( PICTURE 4 ).
5 - REINSTALL THE PREVIOUSLY REMOVED SCREW.
6 - INSTALL THE TWO (2) SUPPLY SCREWS ON RIGHT SIDE
( PICTURE 6 ).
A
B
A
A
B
B
SCREWS
SCREW
LEFT SIDE
RIGHT SIDE
