Operating Instructions
Vehicle
Page4-14
Crestline
Manual
9/20/2007
Coach
S
18772 TurnbuckleLatch2DBLAnd1/2DBL
18873
Connector BrassRodDoor (Replaces Yoke)
18930
Cylinder Lock Kit Trimark LatchConversionToPower Locks
18980
KnobPhenolic For Rotary Latch
19762
Bolt StrikerMachined&ZincPlated .75" Shaft
20046
Holder Door Grabber Angled
20103
Washer ShimPlasticClear .437x1.21Striker Bolt
20493
Holder Door FemaleBaseOnly (C/WRubber Insert)
21816
Seal Door D-Shape c/wNipple
24526
Seal HingeD-Shape .750 x .5625 c/w .50Holes PunchedEvery4inOnPSASide
24600
Cylinder LockModifiedFor Power Door Locks (CH501)
24601
Cylinder Lock Tri/Mark For NonPower Doors (CH501)
24933
Cover Dust Cylinder LockPaddleLatch
26526
Seal Door Rear L-shape c/wHATS
14310-M LatchRotaryDoubleArmed (Left) (Modified for SideEntryDoor)
14311-M LatchRotaryDoubleArmed (Right) (Modified for SideEntryDoor)

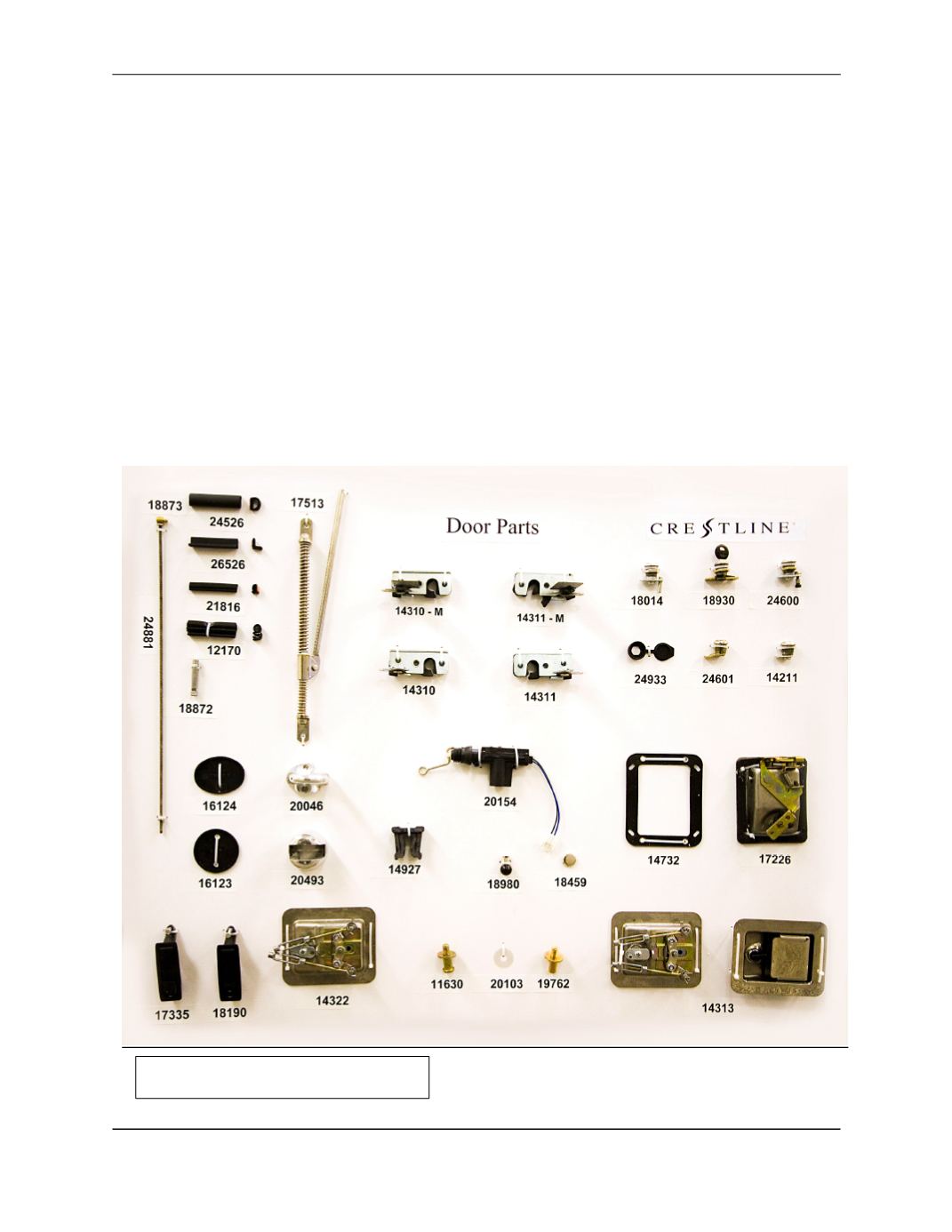

Fig 7: Door componentswithpart numbers.
