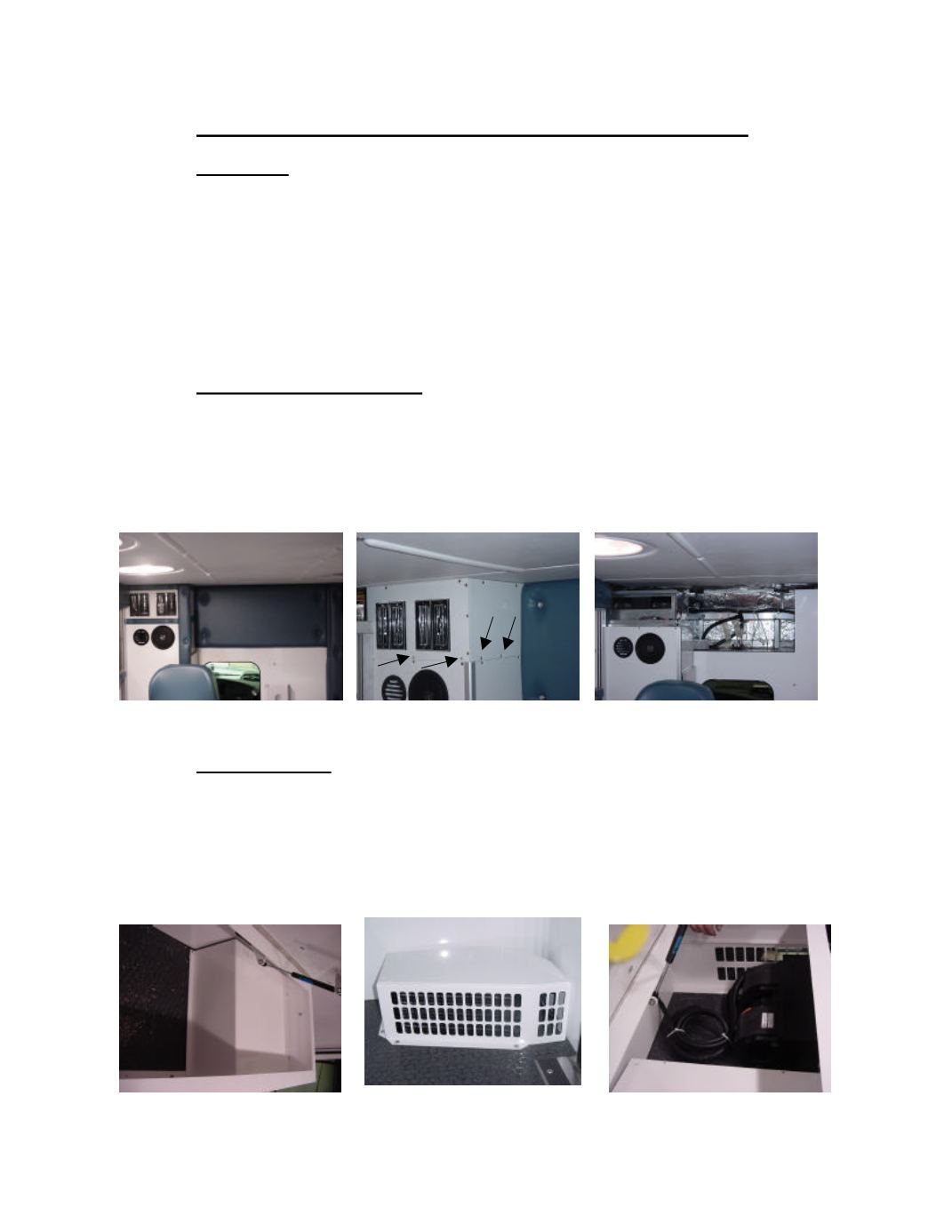

COMPONENTACCESSANDREMOVALPROCEDURE
CONSOLE
-Toaccess theback of the consoleor to remove it for engine service youneed to remove
the two #10 truss headmachine screws from the sides of the console that are fastenedwith
nutserts to theengine cover. After the screws are removed you simply pull the consoleoff the
engine cover as it is nowonly beingheldwith velcroanda clipon thebottom. To removeengine
cover youmust first remove thepassenger seat andplace the console towards the driver’s side,
the floor harness cover doesn’t have tobe removed toachieve this.
- Reverse this procedure for reassembly taking special carenot to cross thread the
mounting screws into thenutserts.
REARAIRCONDITIONER
- Remove the five (5) screws holding thebulkhead cushion intoplace, (fig. 1) the fifth
screw being the center cab headliner screw.
- Remove the eight screws securing the upholstery trim around the a/c face. (fig. 1)
- Remove the four screws that secure the intecel cover, (fig. 2) to expose the air
conditioner (fig. 3)
- Reverse this procedure for re-assembly.
Fig. 1,
Fig. 2
Fig 3
REARHEATER
- for single cot units remove the four (4) screws that secure theheater cover. (fig. 4 )
- for dual cot units remove the four (4) screws that secure theheater cover. (fig. 5)
- remove the cover to expose the heater, hose loop, etc. (fig. 6)
- To removeheater totally from vehicle youmust first remove the four (4) screws that
secure theheater to the floor. Before removinghoses from theheater youmust clampoff
theheater hoses toprevent excess coolant loss.
- Reverse this procedure for reassembly
Fig. 4
Fig. 5
Fig. 6
