7–1/8"
1"
2"
Mounting
Plane
9-1/8"
Front
View
Side
View
ORDERING INFORMATION
SIZE
PHOTOMETRICDATA
Model No.
Description
RECT–79H–A
Amber 7" x 9"
12V
RECT–79H–B
Blue 7" x 9"
12V
RECT–79H–C
Clear 7" x 9"
12V
RECT–79HWB–C Floodlight
12V
RECT–79H–R
Red 7" x 9"
12V
RECT–79H–R/B
Red/Blue 7" x 9"
12V
RECT–79H–R/C
Red/Clear 7" x 9"
12V
RECT–79H–R/A
Red/Amber 7" x 9"
12V
Accessories
RECT–79BZ
Chrome plated Lexan
®
recessedmount fixture
(see pageE21)
RECT–79–SMF
SurfaceMountedBezel
RECT–79–FMF
RecessedMount Fixture (see pageE16)
RECT–79–TSMF
15°mount, angles forward (see pageE16)
RECT–79–15–DEG 15°mounting fixture, angles light down
890
27Watt, 12VDCHalogen Lamp
890–24
27Watt, 24VDCHalogen Lamp
890HP
37Watt, 12VDCHalogen Lamp
890–CONN
Watertight Connector For Lamp
899
27Watt, 12VDCHalogen Lampwith 90°
AngledSocket Base
925–Flasher–12V
Flashes 1 to 4 890’s, 12VDC, solid state
Clear lens, 2–890 lamps at 12.8V
Vertical Distribution
Polar Distribution
Vertical beamwidth@ 1/2 intensity point = 5°
Polar beamwidth@ 1/2 intensity point = 5°
IntensityAt H–V
(RECT–79H)
BEAMCANDLEPOWER
SINGLE 2
COLOR LAMP LAMPS
CLEAR 23000 46000
AMBER 19000 38000
BLUE 7500 15000
RED 7000 14000
Note:
Optional 37watt, 12VDC halogen or 27watt,
24VDC halogen lampmay be specified at time of
purchase.
TheRECT–79H halogen lamp ismolded from Lexan
®
and has been designed to fit all popular emergency vehicles. It uses two
replaceableGE #890 automotive 12V halogen lamps rated at 27watts each, which can be connected in series for use on 24V
automotive systems. Its computer generated optical design and high efficiency reflector make it the brightest 7" X 9" light
available from any manufacturer. The RECT–79H is furnished with drill template, gasket, and mounting hardware. Watertight
lamp connectors are optional.
0
30
60
90
120
150
180
0
30
60
90
120
150
180
Mounting hole pattern
(4) – #8 screws on
7–1/4" x 5–1/4" centers
RECT–79–SMF
890–CONN
RECT–79H–R/B
RECT–79H–A
890
RECT–79H–C
RECT–79–15–DEG
925–FLASHER–12V

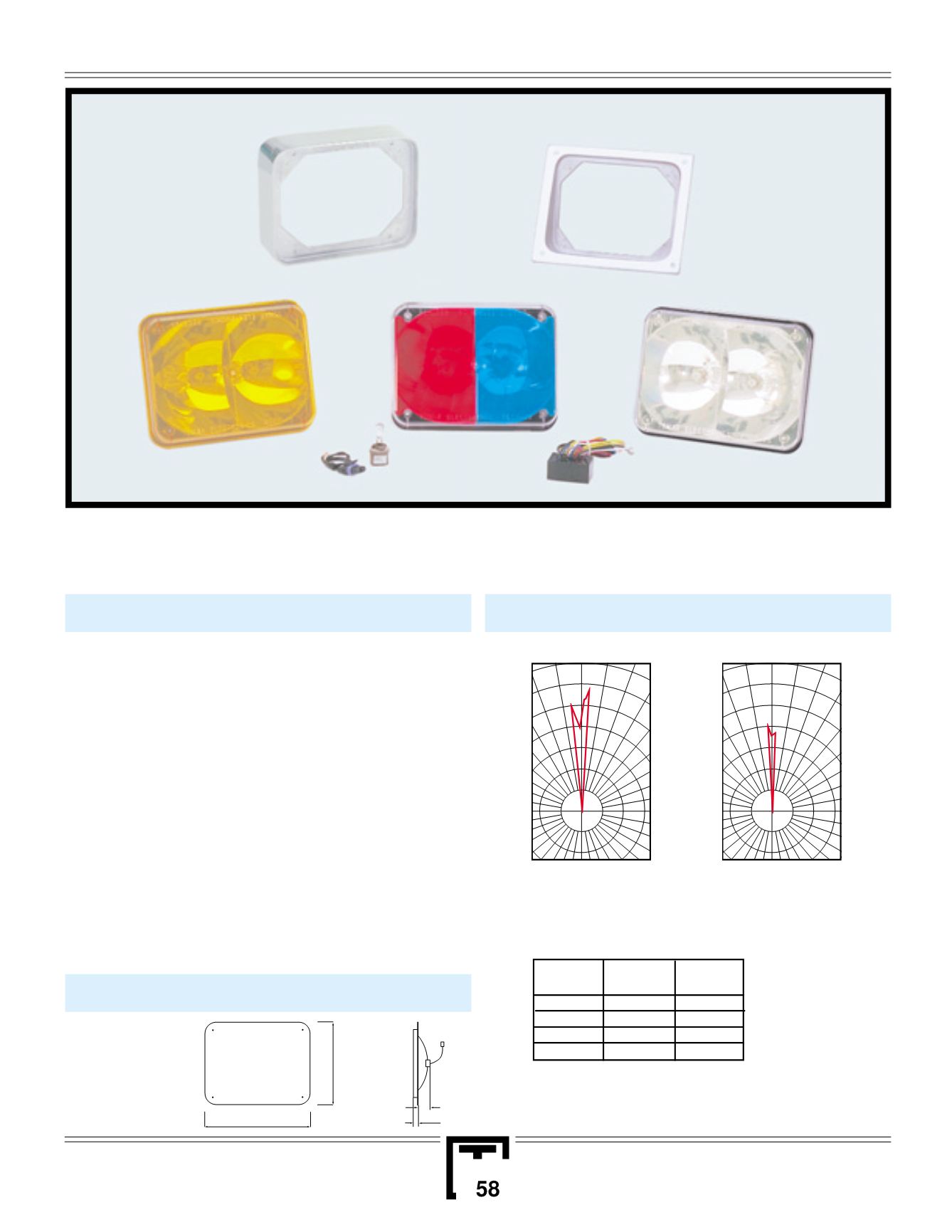

RECT–79H7"X9"SEALEDBEAMHALOGENLIGHTHEAD
12V or 24V,
2–27Watt Lamps
2100WESTOBISPO
GILBERT, AZ. 85233
PHONE: 800–338–3133
FAX:
800–688–6627
®
